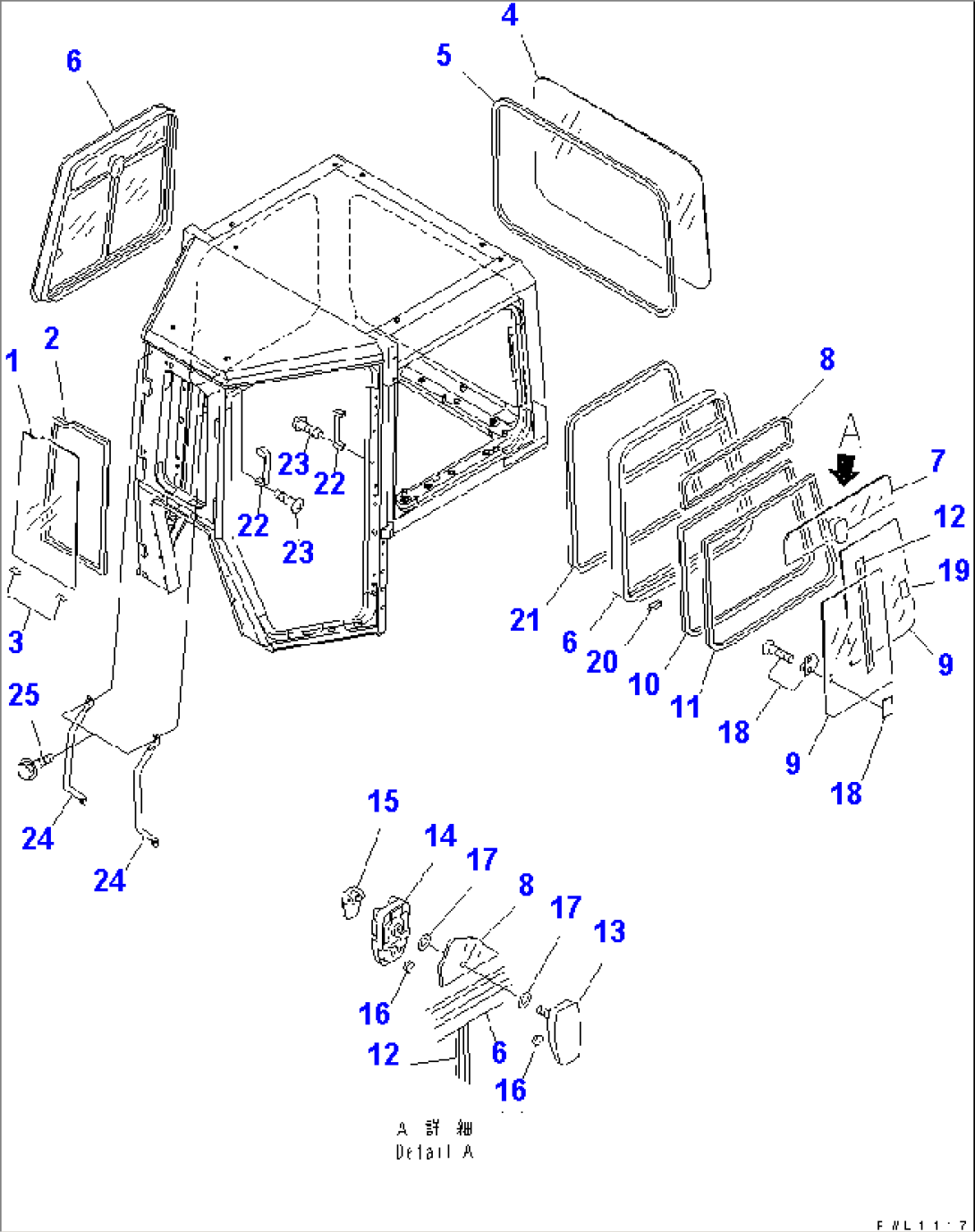

| Item | Part No. | Part Name | Qty | Serial No. |
| 198-Z11-0090 | CAB ASS'Y,(WITH RADIO) | 17501- | ||
| 198-Z11-0100 | CAB ASS'Y,(RADIO LESS) | 17501- | ||
| THIS ASSEMBLY CONSISTS OF FALL UNDER PAR TS SHOWN IN FIGS.K0 210-01A2 TO K0210-12 A2. | ||||
| 1 | 198-Z11-2211 | GLASS | 17501- | |
| 2 | 198-Z11-2260 | SEAL | 17501- | |
| 3 | 198-Z11-2290 | PLATE | 17501- | |
| 4 | 198-Z11-2241 | GLASS | 17501- | |
| 5 | 198-Z11-2251 | STRIP | 17501- | |
| 198-Z11-2300 | SASH ASS'Y | 17501- | ||
| 6 | 198-Z11-2310 | SASH FLAME | 17501- | |
| 7 | 198-Z11-2320 | GLASS | 17501- | |
| 8 | 198-Z11-2330 | SEAL | 17501- | |
| 9 | 198-Z11-2340 | GLASS | 17501- | |
| 10 | 198-Z11-2350 | SEAL | 17501- | |
| 11 | 198-Z11-2360 | SEAL | 17501- | |
| 12 | 14X-911-2170 | SEAL | 17501- | |
| 13 | 14X-911-2620 | BRACKET,OUTER | 17501- | |
| 14 | 14X-911-2630 | BRACKET,INNER | 17501- | |
| 15 | 14X-911-2662 | LEVER ASS'Y | 17501- | |
| 16 | 14X-911-2640 | CUSHION | 17501- | |
| 17 | 14X-911-2650 | SEAL | 17501- | |
| 18 | 20Y-54-13322 | LOCK ASS'Y | 17501- | |
| 19 | 20Y-54-14352 | LOCK ASS'Y | 17501- | |
| 20 | 198-Z11-2480 | SEAT | 17501- | |
| 21 | 198-Z11-2490 | TRIM | 17501- | |
| 22 | 361-54-21150 | HANDLE | 17501- | |
| 23 | 01220-40820 | SCREW | 17501- | |
| 24 | 198-Z11-3520 | GRIP | 17501- | |
| 25 | 01435-31025 | BOLT | 17501- |
