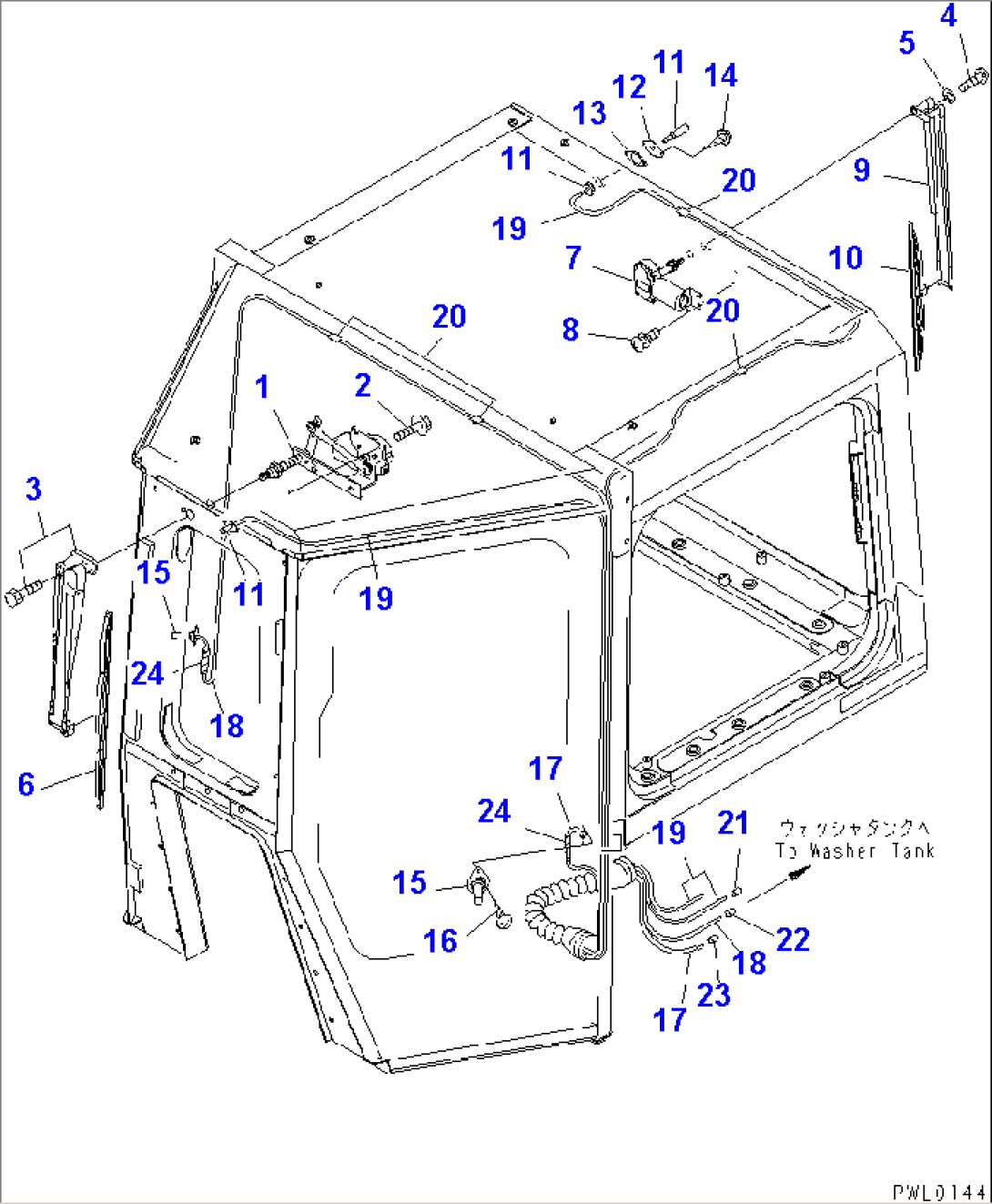

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-911-3111 | WIPER MOTOR ASS'Y | 18001- | |
| 2 | 01435-40616 | BOLT | 18001- | |
| 3 | 14X-911-3210 | ARM | 18001- | |
| 4 | 01245-00616 | SCREW | 18001- | |
| 5 | 01643-70623 | WASHER | 18001- | |
| 6 | 195-Z11-8550 | BLADE | 18001- | |
| 7 | 198-Z11-2540 | WIPER MOTOR | 18001- | |
| 8 | 01023-20516 | SCREW | 18001- | |
| 9 | 421-56-21760 | ARM | 18001- | |
| 10 | 421-56-21770 | BLADE | 18001- | |
| 11 | 205-06-61220 | NOZZLE ASS'Y | 18001- | |
| 12 | 14X-911-3560 | BRACKET | 18001- | |
| 13 | 14X-911-3570 | PACKING | 18001- | |
| 14 | 01370-00408 | SCREW | 18001- | |
| 15 | 20Y-54-39511 | NOZZLE | 18001- | |
| 16 | 01370-10520 | SCREW | 18001- | |
| 17 | 14X-911-3531 | HOSE | 18001- | |
| 18 | 14X-911-3541 | HOSE | 18001- | |
| 19 | 21T-06-11390 | HOSE | 18001- | |
| 20 | 08051-00801 | CLIP | 18001- | |
| 21 | 14X-911-1130 | TUBE | 18001- | |
| 22 | 14X-911-1140 | TUBE | 18001- | |
| 23 | 14X-911-1150 | TUBE | 18001- | |
| 24 | 08210-00401 | SPIRAL TUBE | 18001- |
