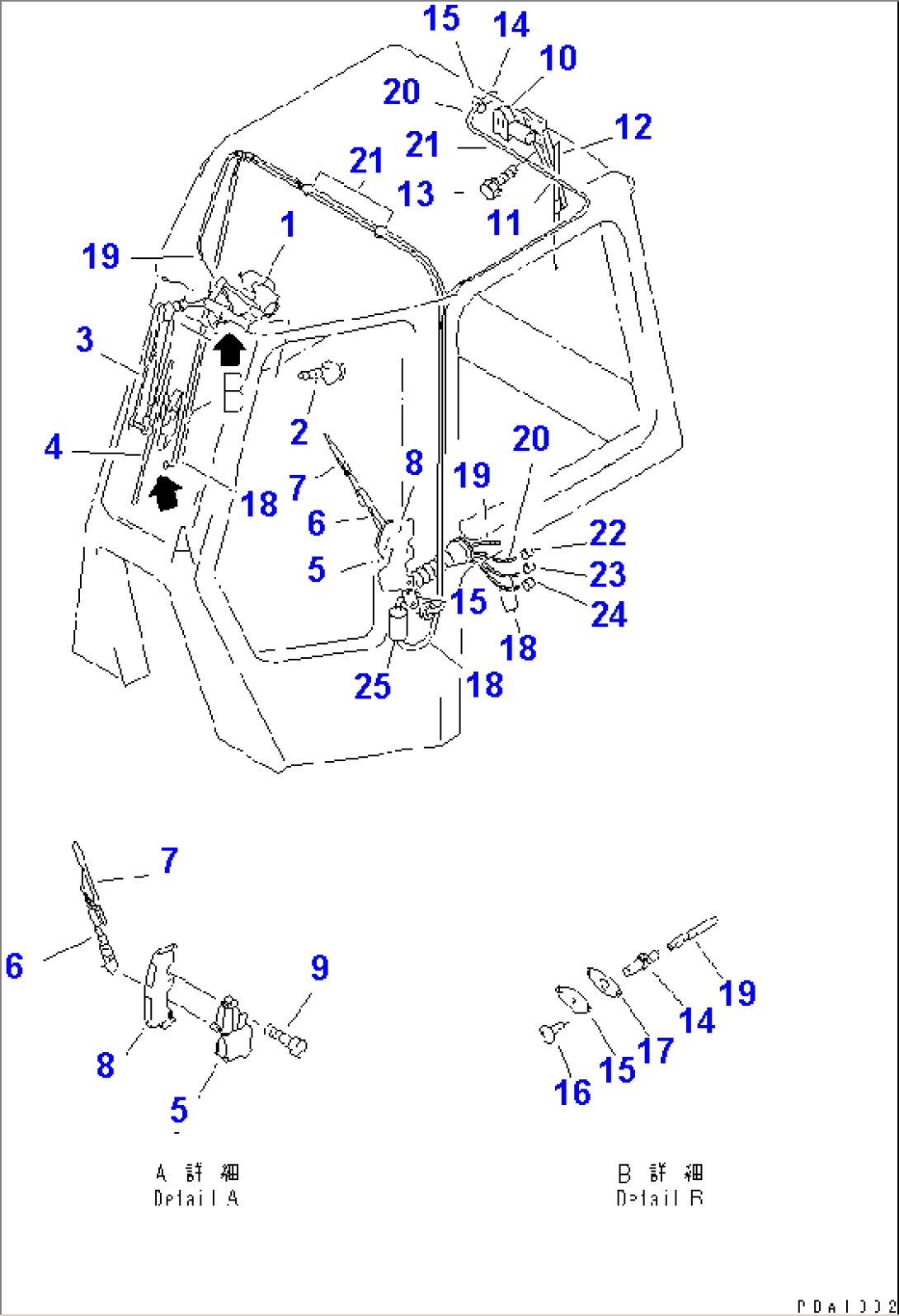

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-911-3111 | WIPER MOTOR ASS'Y | 1001- | |
| 2 | 01435-20612 | BOLT | 1001- | |
| 3 | 14X-911-3210 | ARM | 1001- | |
| 3 | ND857059-0020 | SCREW | 1001- | |
| 3 | ND857056-1540 | NUT | 1001- | |
| 4 | 14X-911-3310 | BLADE | 1001- | |
| 5 | 14X-911-3120 | WIPER MOTOR ASS'Y,L.H. | 1001- | |
| 5 | 14X-911-3130 | WIPER MOTOR ASS'Y,R.H. | 1001- | |
| 6 | 14X-911-3221 | ARM | 1001- | |
| 7 | 14X-911-3321 | BLADE | 1001- | |
| 8 | 14X-911-3411 | BRACKET,L.H. | 1001- | |
| 8 | 14X-911-3421 | BRACKET,R.H. | 1001- | |
| 9 | 01435-01016 | BOLT | 1001- | |
| 10 | 14X-911-3141 | WIPER MOTOR ASS'Y,REAR | 1001- | |
| 11 | 14X-911-3241 | ARM,WIPER | 1001- | |
| 12 | 14X-911-3330 | BLADE,WIPER | 1001- | |
| 13 | 01023-10512 | SCREW | 1001- | |
| 14 | 205-06-61220 | NOZZLE ASS'Y | 1001- | |
| 15 | 14X-911-3560 | BRACKET | 1001- | |
| 16 | 01370-00408 | SCREW | 1001- | |
| 17 | 14X-911-3570 | PACKING | 1001- | |
| 18 | 14X-911-3531 | HOSE, 1500MM,L.H. | 1001- | |
| 18 | 14X-911-3541 | HOSE, 4550MM,R.H. | 1001- | |
| 19 | 14X-911-3611 | HOSE, 2800MM | 1001- | |
| 20 | 14X-911-3621 | HOSE, 3350MM | 1001- | |
| 21 | 08051-00801 | CLIP | 1001- | |
| 22 | 14X-911-1130 | TUBE | 1001- | |
| 23 | 14X-911-1140 | TUBE | 1001- | |
| 24 | 14X-911-1150 | TUBE | 1001- | |
| 25 | 08210-00401 | SPIRAL TUBE,SPIRAL | 1001- |
