| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-54-11270 | SHEET | 23001- | |
| 3 | 421-06-16141 | SWITCH | 23001- | |
| 4 | 362-56-41521 | PLATE | 23001- | |
| 5 | 01220-40520 | SCREW | 23001- | |
| 6 | 01642-20508 | WASHER | 23001- | |
| 7 | 01601-20513 | WASHER | 23001- | |
| 8 | 01580-10504 | NUT | 23001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa50 3 s/n 23001 up (overseas version)
- Operator's compartment and control system
- Canopy (with front window) (front window) (2/2)
Поиск по каталогу

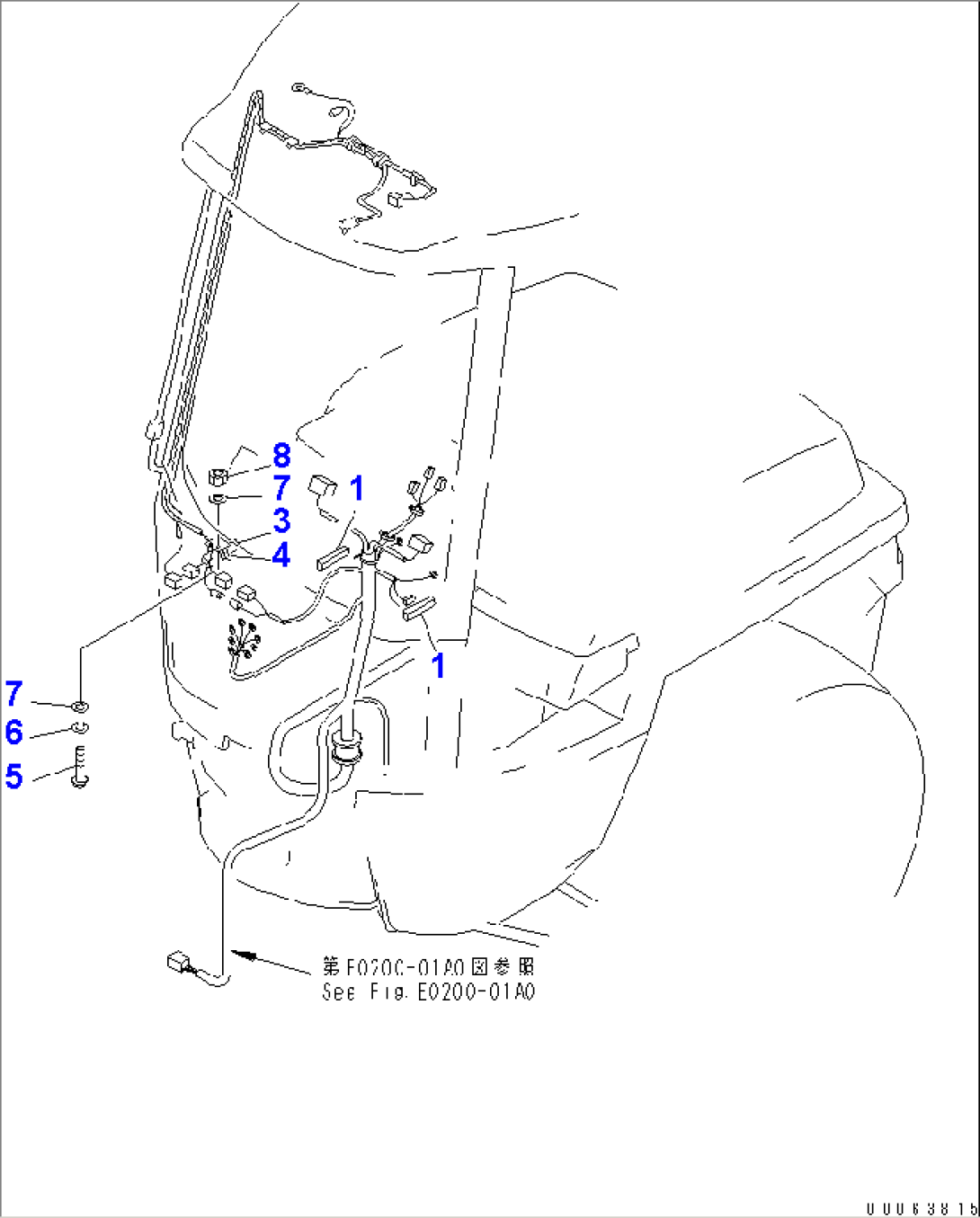

CANOPY (WITH FRONT WINDOW) (FRONT WINDOW) (2/2)
