| Item | Part No. | Part Name | Qty | Serial No. |

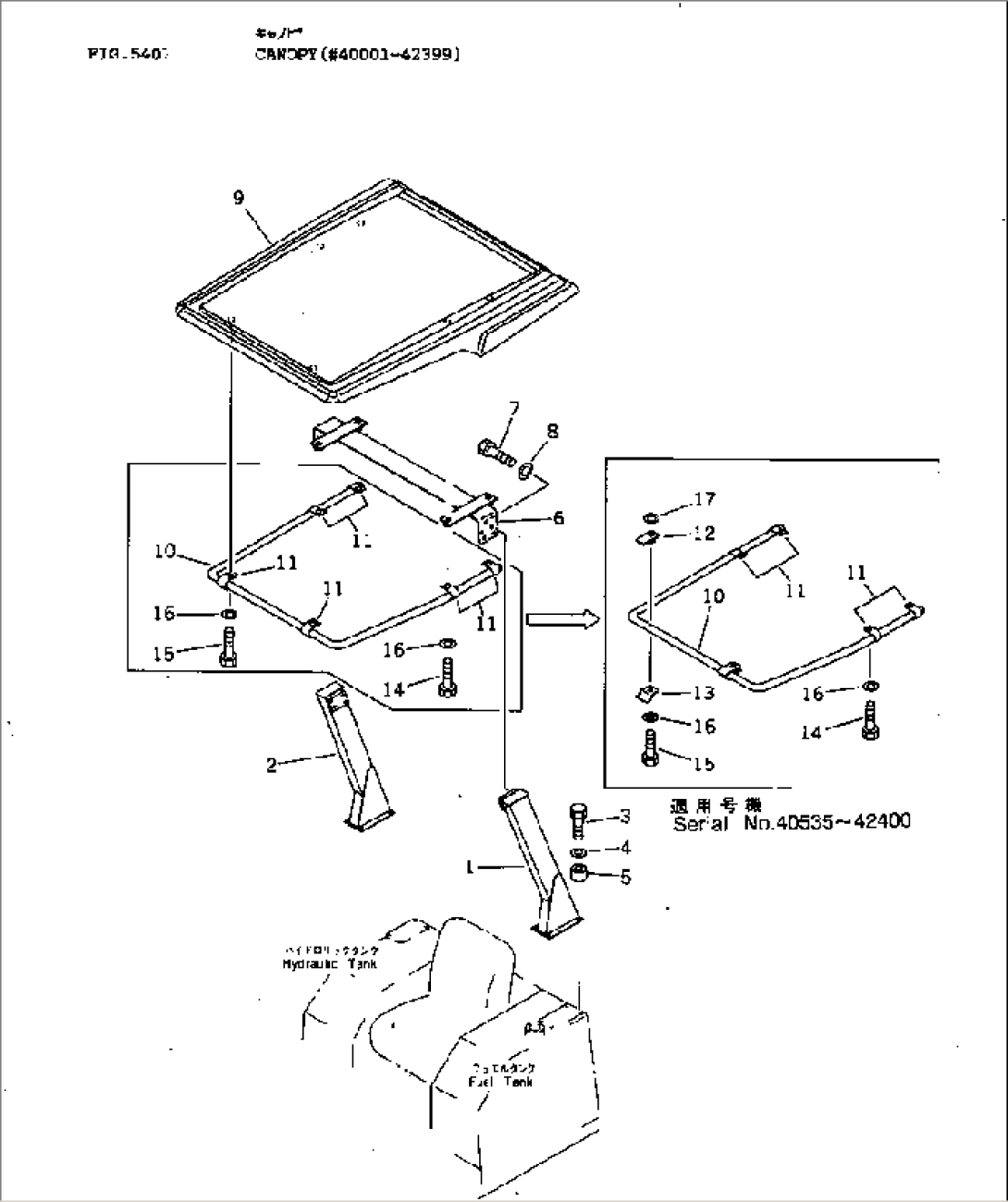

| G-1 | (\8\113-X06-X100) | CANOPY GROUP | 40001-42399 | |
| ==================== | ||||
| 1 | 103-Y06-1125 | POLE,L.H. | 41214-42399 | |
| 1 | 103-Y06-1122 | POLE,L.H. | 40173-41213 | |
| 1 | \0\103-Y06-1121 | POLE,L.H. | 40001-40172 | |
| 2 | 103-Y06-1115 | POLE,R.H. | 41214-42399 | |
| 2 | 103-Y06-1112 | POLE,R.H. | 40173-41213 | |
| 2 | \0\103-Y06-1111 | POLE,R.H. | 40001-40172 | |
| 3 | 01010-51045 | BOLT | 41214-@ | |
| 3 | 01010-51045 | BOLT | 40001-41213 | |
| 4 | 01602-21030 | WASHER,SPRING | 41214-@ | |
| 4 | 01602-21030 | WASHER,SPRING | 40001-41213 | |
| 5 | 103-Y06-1140 | BOSS | 41214-@ | |
| 5 | 103-Y06-1140 | BOSS | 40001-41213 | |
| 6 | 113-X06-1221 | BRACKET | 40001-42399 | |
| 7 | 01010-51030 | BOLT | 40001-42399 | |
| 8 | 01643-31032 | WASHER | 40001-42399 | |
| 9 | 113-X06-1110 | ROOF | 40001-42399 | |
| 10 | 113-X06-1171 | PIPE | 40535-42399 | |
| 10 | 113-X06-1170 | PIPE | 40001-40534 | |
| 11 | 113-X06-1181 | CLIP | 40535-42399 | |
| 11 | 113-X06-1180 | CLIP | 40001-40534 | |
| 12 | 103-Y06-1160 | CLIP | 40535-42399 | |
| 13 | 103-Y06-1170 | CLIP | 40535-42399 | |
| 14 | 01010-51055 | BOLT | 40535-42399 | |
| 14 | 01010-51050 | BOLT | 40001-40534 | |
| 15 | 01010-51050 | BOLT | 40535-42399 | |
| 15 | 01010-51020 | BOLT | 40001-40534 | |
| 16 | 01643-31032 | WASHER | 40001-42399 | |
| 17 | 01643-31445 | WASHER | 40535-42399 | |
| ==================== |
