| Item | Part No. | Part Name | Qty | Serial No. |

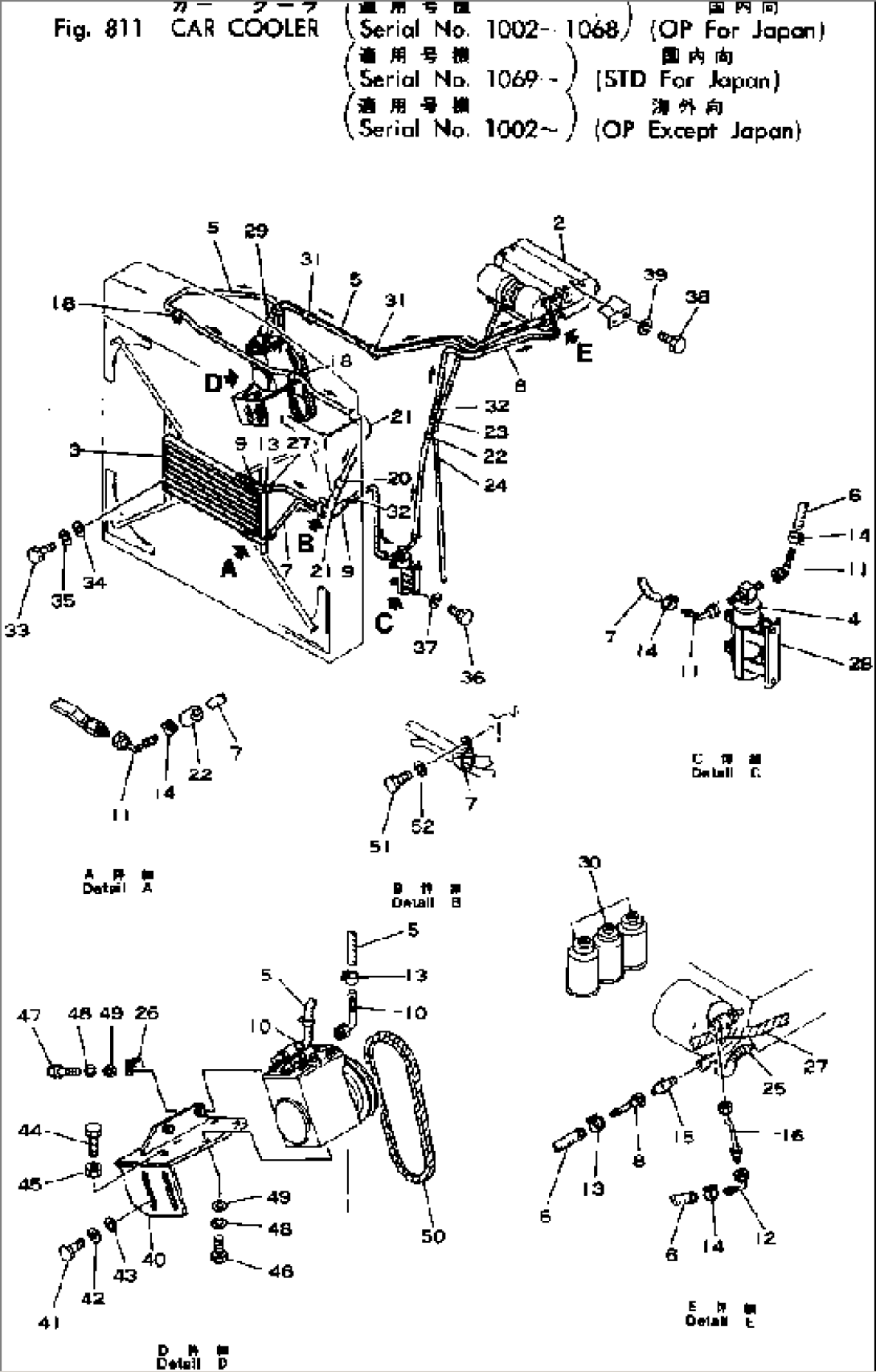

| 569-07-11100 | CAR COOLER ASS'Y | 1002- | ||
| 1 | 565-95-21111 | COMPRESSOR | 1002- | |
| 2 | 565-95-21140 | COOLING UNIT | 1002- | |
| 3 | 565-95-21120 | CONDENSER ASS'Y | 1002- | |
| 4 | 566-07-11240 | RECEIVER | 1002- | |
| 5 | 568-07-11761 | HOSE | 1002- | |
| 6 | 566-07-11720 | HOSE | 1002- | |
| 7 | 565-95-21220 | HOSE | 1002- | |
| 8 | 566-07-11680 | FITTING | 1002- | |
| 9 | 566-07-11280 | FITTING | 1002- | |
| 10 | 566-07-11310 | FITTING | 1002- | |
| 11 | 566-07-11330 | FITTING | 1002- | |
| 12 | 566-07-11730 | FITTING | 1002- | |
| 13 | 566-07-11340 | CLAMP | 1002- | |
| 14 | 565-95-21150 | CLAMP | 1002- | |
| 15 | 566-07-11350 | ELBOW | 1002- | |
| 16 | 566-07-11740 | CONNECTOR | 1002- | |
| 17 | 566-07-11780 | CLIP | 1002- | |
| 18 | 566-07-11360 | CLIP | 1002- | |
| 19 | 566-07-11810 | INSULATOR | 1002- | |
| 20 | 566-07-11820 | INSULATOR | 1002- | |
| 21 | 566-07-11830 | INSULATOR | 1002- | |
| 22 | 566-07-11840 | INSULATOR | 1002- | |
| 23 | 566-07-11440 | BAND | 1002- | |
| 24 | 566-07-11610 | HOSE | 1002- | |
| 25 | 566-07-11790 | CLAMP | 1002- | |
| 26 | 565-95-21280 | CLIP | 1002- | |
| 27 | 566-07-11450 | TAPE | 1002- | |
| 28 | 566-07-11530 | BRACKET | 1002- | |
| 29 | 566-07-11650 | HARNESS | 1002- | |
| 30 | 566-07-11620 | GAS | 1002- | |
| 31 | 08036-02514 | CLIP | 1002- | |
| 32 | 08036-01814 | CLIP | 1002- | |
| 33 | 01010-50640 | BOLT | 1002- | |
| 34 | 01643-30623 | WASHER | 1002- | |
| 35 | 01602-20619 | WASHER | 1002- | |
| 36 | 01010-50616 | BOLT | 1002- | |
| 37 | 01602-20619 | WASHER | 1002- | |
| 38 | 01010-50820 | BOLT | 1002- | |
| 39 | 01602-20825 | WASHER | 1002- | |
| 40 | 568-07-11212 | BRACKET | 1002- | |
| 41 | 02010-70738 | BOLT | 1002- | |
| 42 | 02300-11520 | WASHER | 1002- | |
| 43 | 02310-11428 | WASHER | 1002- | |
| 44 | 01016-51270 | BOLT | 1002- | |
| 45 | 01580-11210 | NUT | 1002- | |
| 46 | 01010-50845 | BOLT | 1002- | |
| 47 | 01010-50835 | BOLT | 1002- | |
| 48 | 01602-20825 | WASHER | 1002- | |
| 49 | 01643-20823 | WASHER | 1002- | |
| 50 | 04120-21733 | V-BELT | 1002- | |
| 51 | 01010-51020 | BOLT | 1002- | |
| 52 | 01602-21030 | WASHER | 1002- |
