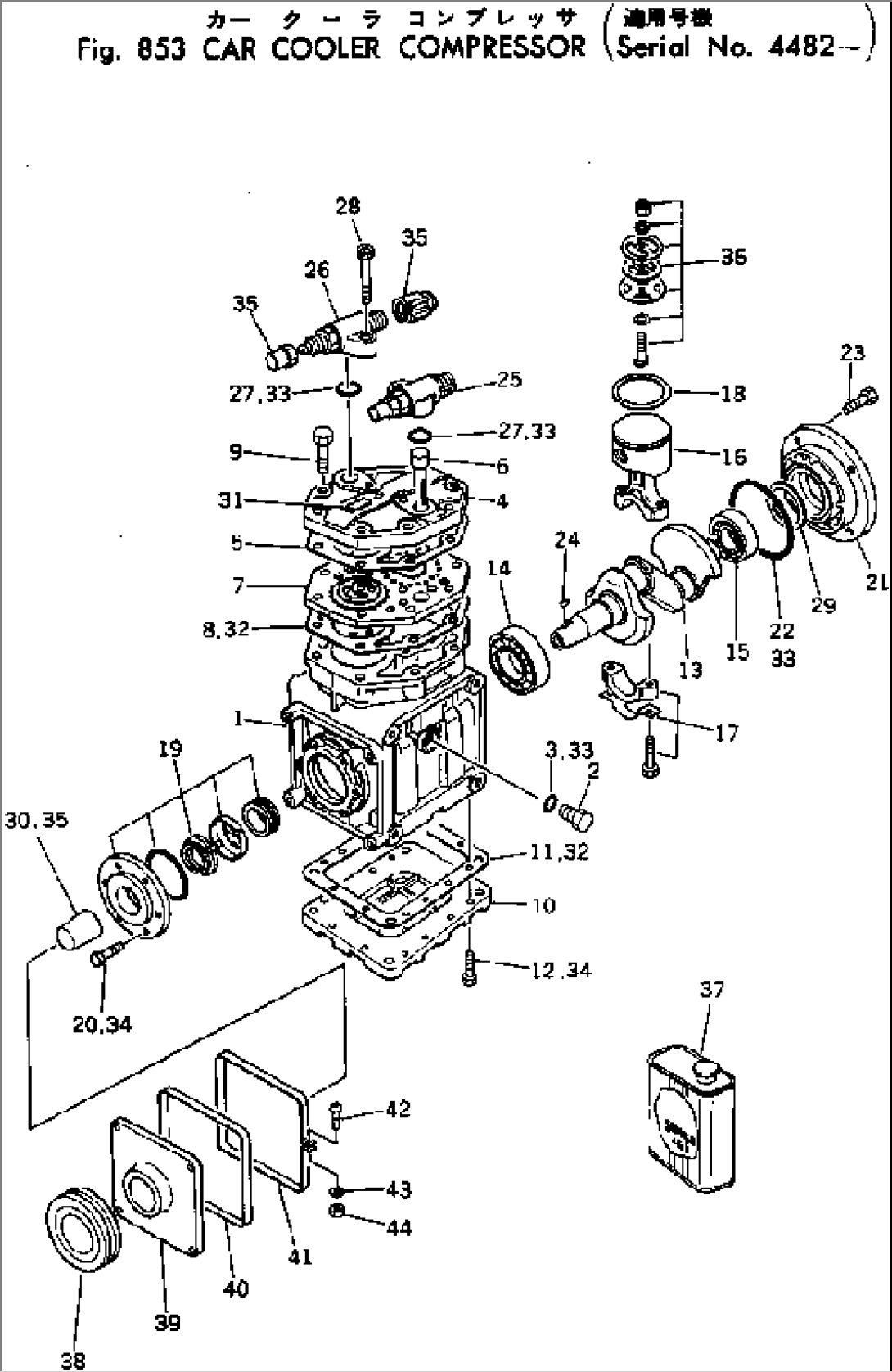

| Item | Part No. | Part Name | Qty | Serial No. |
| 232-809-2300 | COMPRESSOR ASS'Y | 4482- | ||
| 1 | 232-809-2210 | HOUSING | 4482- | |
| 2 | 232-809-2220 | PLUG | 4482- | |
| 3 | 232-809-2230 | O-RING | 4482- | |
| 4 | 232-809-2240 | HEAD | 4482- | |
| 5 | 232-809-2250 | GASKET | 4482- | |
| 6 | 232-809-2260 | FILTER | 4482- | |
| 7 | 232-809-2270 | VALVE | 4482- | |
| 8 | 232-809-2280 | GASKET | 4482- | |
| 9 | 232-809-2290 | BOLT | 4482- | |
| 10 | 232-809-2310 | PAN | 4482- | |
| 11 | 232-809-2320 | GASKET | 4482- | |
| 12 | 232-809-2330 | BOLT | 4482- | |
| 13 | 232-809-2340 | CRANKSHAFT | 4482- | |
| 14 | 232-809-2350 | BEARING | 4482- | |
| 15 | 232-809-2360 | BEARING | 4482- | |
| 16 | 232-809-2370 | PISTON ASS'Y | 4482- | |
| 17 | 232-809-2380 | RETAINER | 4482- | |
| 18 | 232-809-2390 | RING | 4482- | |
| 19 | 232-809-2410 | SEAL ASS'Y | 4482- | |
| 20 | 232-809-2420 | BOLT | 4482- | |
| 21 | 232-809-2430 | PLATE | 4482- | |
| 22 | 232-809-2440 | O-RING | 4482- | |
| 23 | 232-809-2450 | SCREW | 4482- | |
| 24 | 232-809-2460 | KEY | 4482- | |
| 25 | 232-809-2470 | CONNECTOR | 4482- | |
| 26 | 232-809-2480 | CONNECTOR | 4482- | |
| 27 | 232-809-2490 | O-RING | 4482- | |
| 28 | 232-809-2510 | BOLT | 4482- | |
| 29 | 232-809-2530 | SHIM¤ 0.1MM | 4482- | |
| 232-809-2520 | SHIM¤ 0.2MM | 4482- | ||
| 30 | 232-809-2540 | CAP | 4482- | |
| 31 | 232-809-2550 | PLATE¤ CAUTION | 4482- | |
| SERVICE KIT | ||||
| ==================== | ||||
| 32 | 232-809-2560 | GASKET | 4482- | |
| 33 | 232-809-2570 | O-RING | 4482- | |
| 34 | 232-809-2580 | BOLT | 4482- | |
| 35 | 232-809-2590 | CAP | 4482- | |
| ==================== | ||||
| 36 | 232-809-2610 | VALVE | 4482- | |
| 37 | 232-809-2620 | OIL | 4482- | |
| 232-809-2630 | CLUTCH ASS'Y | 4482- | ||
| 38 | 232-809-2640 | PULLEY ASS'Y | 4482- | |
| 39 | 232-809-2650 | SOLENOID | 4482- | |
| 40 | 232-809-3130 | SEAT | 5764- | |
| 41 | 232-809-3120 | COVER | 5764- | |
| 42 | 01220-40410 | SCREW | 5764- | |
| 43 | 01601-20410 | WASHER | 5764- | |
| 44 | 01580-10403 | NUT | 5764- |
