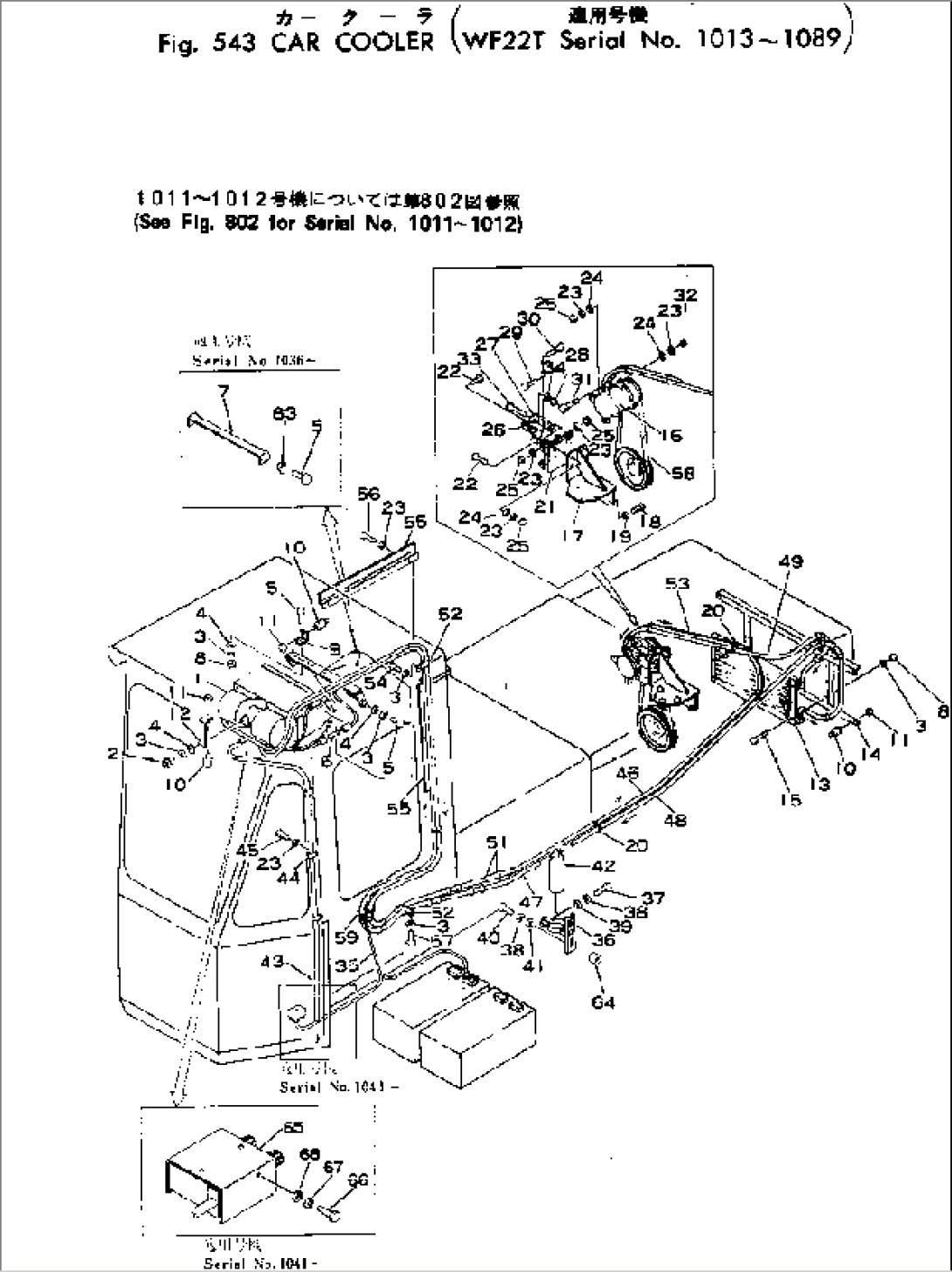

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 256-81-18421 | COOLER UNIT | 1057-1089 | |
| 1 | 256-81-18420 | COOLER UNIT | 1041-1056 | |
| 1 | 256-81-18512 | COOLER UNIT | 1013-1040 | |
| 1 | \0\256-81-18511 | COOLER UNIT | 1013-1040 | |
| 2 | 01580-10605 | NUT | 1013-1089 | |
| 3 | 01602-20619 | WASHER | 1036-1089 | |
| 3 | 01602-20619 | WASHER | 1013-1035 | |
| 4 | 01641-20608 | WASHER | 1036-1089 | |
| 4 | 01641-20608 | WASHER | 1013-1035 | |
| 5 | 01010-50616 | BOLT | 1036-1089 | |
| 5 | 01010-50616 | BOLT | 1013-1035 | |
| 6 | 08040-01000 | FUSE, 10A | 1013-1089 | |
| 7 | 256-81-18762 | BRACKET | 1057-1089 | |
| 7 | 256-81-18761 | BRACKET | 1036-1056 | |
| 7 | \0\256-81-18760 | BRACKET | 1013-1035 | |
| 8 | 01598-00608 | NUT | 1013-1089 | |
| 9 | 256-81-18770 | BRACKET | 1013-1089 | |
| 10 | 145-06-32210 | PAD | 1013-1089 | |
| 11 | 01599-01011 | NUT | 1013-1089 | |
| 12 | 256-81-18780 | BRACKET | 1013-1089 | |
| 13 | 256-81-18522 | CONDENSER ASS'Y | 1057-1089 | |
| 13 | 256-81-18521 | CONDENSER ASS'Y | 1013-1056 | |
| 14 | 256-81-18320 | BRACKET | 1036-1089 | |
| 14 | 256-81-18751 | BRACKET | 1013-1035 | |
| 15 | 01010-50640 | BOLT | 1013-1089 | |
| 16 | 256-81-18430 | AIR COMPRESSOR ASS'Y | 1041-1089 | |
| 16 | 256-81-18530 | AIR COMPRESSOR ASS'Y | 1013-1040 | |
| 17 | 256-81-18790 | BRACKET | 1013-1089 | |
| 18 | 01010-51435 | BOLT | 1013-1089 | |
| 19 | 01602-21442 | WASHER | 1013-1089 | |
| 20 | 281-06-16710 | BAND | 1036-1089 | |
| 20 | 08034-00834 | BAND | 1013-1035 | |
| 21 | 256-81-18810 | BRACKET | 1013-1089 | |
| 22 | 01010-51040 | BOLT | 1013-1089 | |
| 23 | 01602-21030 | WASHER | 1013-1089 | |
| 24 | 01643-31032 | WASHER | 1013-1089 | |
| 25 | 01580-11008 | NUT | 1013-1089 | |
| 26 | 256-81-18820 | ARM | 1013-1089 | |
| 27 | 256-81-18830 | ARM | 1013-1089 | |
| 28 | 01580-10806 | NUT | 1013-1089 | |
| 29 | 01010-51035 | BOLT | 1013-1089 | |
| 30 | 01010-51045 | BOLT | 1013-1089 | |
| 31 | 256-81-18840 | SHAFT | 1013-1089 | |
| 32 | 01582-11008 | NUT | 1013-1089 | |
| 33 | 01016-50880 | BOLT | 1013-1089 | |
| 34 | 01643-30823 | WASHER | 1013-1089 | |
| 35 | 256-81-18970 | WIRE | 1013-1035 | |
| 36 | 256-81-18850 | BRACKET | 1013-1089 | |
| 37 | 01010-50835 | BOLT | 1013-1089 | |
| 38 | 01602-20825 | WASHER | 1013-1089 | |
| 39 | 01641-20812 | WASHER | 1013-1089 | |
| 40 | 01010-50816 | BOLT | 1013-1089 | |
| 41 | 01643-30823 | WASHER | 1013-1089 | |
| 42 | 256-81-18980 | TANK | 1013-1089 | |
| 43 | 256-81-18990 | TUBE | 1013-1089 | |
| 44 | 08036-01414 | CLIP | 1013-1089 | |
| 45 | 01010-51020 | BOLT | 1013-1089 | |
| 46 | 256-81-18560 | HOSE | 1013-1089 | |
| 47 | 256-81-18540 | HOSE | 1013-1089 | |
| 48 | 256-81-18550 | HOSE | 1013-1089 | |
| 49 | 256-81-18570 | HOSE | 1013-1089 | |
| 51 | 256-81-18580 | INSULATOR | 1013-1089 | |
| 52 | 565-95-21510 | CLIP | 1013-1089 | |
| 53 | 256-81-18890 | BRACKET | 1013-1089 | |
| 54 | 01010-50625 | BOLT | 1013-1089 | |
| 55 | 256-81-18640 | HOLDER | 1013-1089 | |
| 56 | 01010-51030 | BOLT | 1013-1089 | |
| 57 | 01010-50610 | BOLT | 1013-1089 | |
| 58 | 04120-01744 | V-BELT | 1013-1089 | |
| 59 | 08037-02512 | GROMMET | 1013-1089 | |
| 60 | 566-07-11450 | TAPE | 1013-1089 | |
| 61 | 566-07-11660 | OIL | 1013-1089 | |
| 62 | 566-07-11620 | GAS | 1013-1089 | |
| 63 | 01650-20608 | WASHER | 1036-1089 | |
| 64 | 01571-00814 | SEAT | 1013-1089 | |
| 65 | 256-81-18430 | AIR COMPRESSOR ASS'Y | 1041-1089 | |
| 66 | 01220-40508 | SCREW | 1041-1089 | |
| 67 | 01601-00513 | WASHER | 1041-1089 | |
| 68 | 01641-20508 | WASHER | 1041-1089 |
