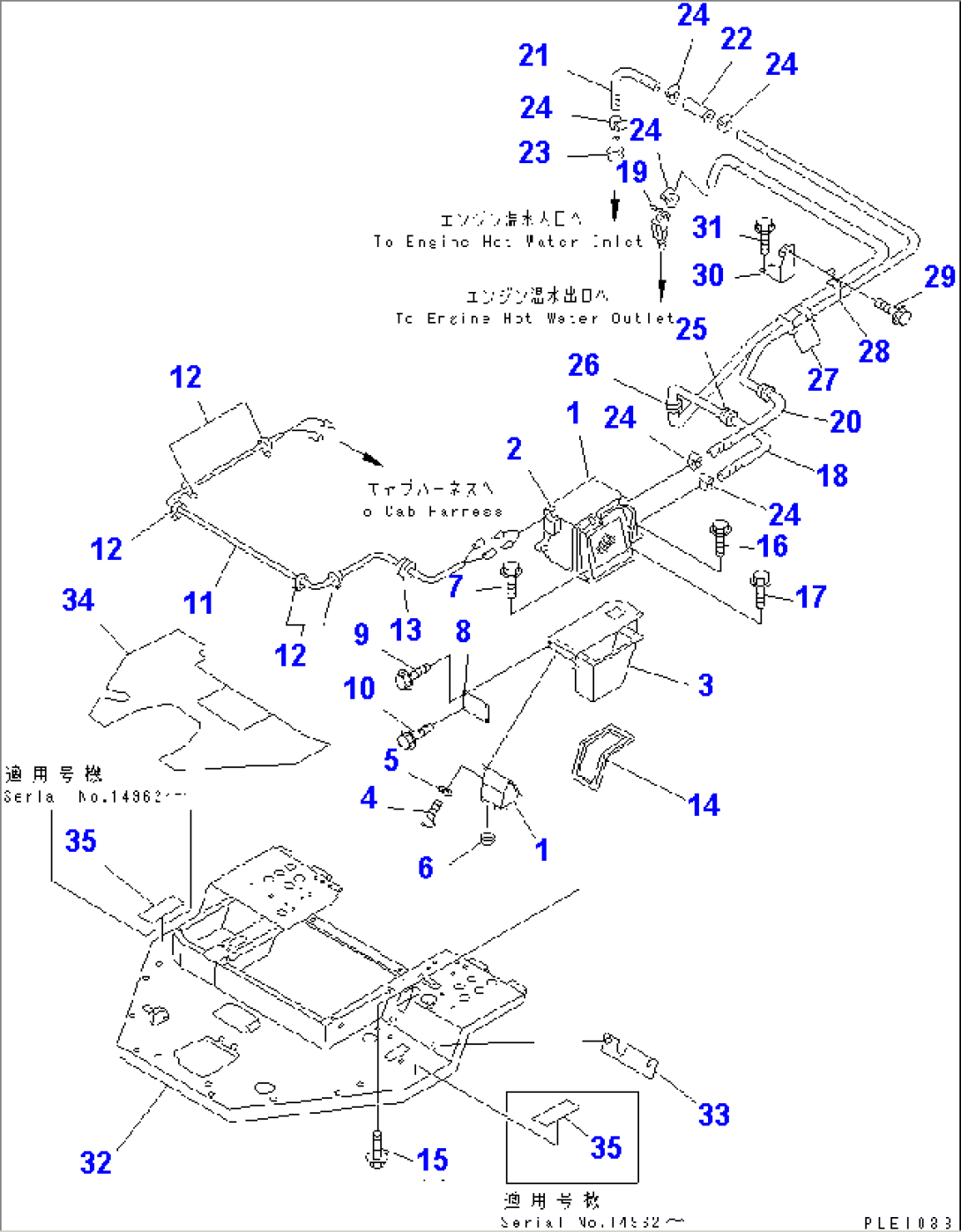

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-943-1110 | HEATER ASS'Y | 10001- | |
| 2 | 416-942-1160 | SWITCH | 10001- | |
| 3 | 415-943-1211 | BRACKET | 12001- | |
| 4 | 01220-40308 | SCREW | 10001- | |
| 5 | 01641-20305 | WASHER | 10001- | |
| 6 | 416-942-1630 | CAP | 10001- | |
| 7 | 01435-00820 | BOLT | 12001- | |
| 8 | 415-943-1220 | PLATE | 10001- | |
| 9 | 01435-00610 | BOLT | 12001- | |
| 10 | 01435-01020 | BOLT | 12001- | |
| 11 | 415-943-1610 | WIRE ASS'Y | 10001- | |
| 12 | 08034-20519 | BAND | 12001- | |
| 13 | 08037-01610 | GROMMET | 10001- | |
| 14 | 415-943-1230 | SHEET | 10001- | |
| 15 | 01435-01020 | BOLT | 12001- | |
| 16 | 01435-01016 | BOLT | 12001- | |
| 17 | 01435-00816 | BOLT | 12001- | |
| 18 | 09483-10513 | HOSE | 12001- | |
| 19 | 415-943-1310 | CONNECTOR | 10001- | |
| 20 | 415-943-1840 | HOSE | 12001- | |
| 21 | 416-943-1320 | HOSE | 12001- | |
| 22 | 09484-00560 | CONNECTOR | 12001- | |
| 23 | 416-942-1560 | CONNECTOR | 10001- | |
| 24 | 07281-00259 | CLAMP | 10001- | |
| 25 | 08037-02512 | GROMMET | 10001- | |
| 26 | 08037-05016 | GROMMET | 12001- | |
| 27 | 08034-00536 | BAND | 12001- | |
| 28 | 421-07-11760 | CLIP | 12001- | |
| 29 | 01435-00816 | BOLT | 12001- | |
| 30 | 415-943-1820 | BRACKET | 12001- | |
| 31 | 01435-00610 | BOLT | 12001- | |
| 32 | 415-943-1652 | FRAME,FLOOR (MODIFIED PART) | 12001- | |
| 209-30-11370 | SEAT | 12001- | ||
| 415-943-1641 | PLATE | 12001- | ||
| 415-943-1780 | BOX | 12001- | ||
| 01580-10605 | NUT | 12001- | ||
| 01571-00814 | SEAT | 12001- | ||
| 01573-20210 | SEAT | 12001- | ||
| 33 | 415-943-1790 | COVER,(MODIFIED PART) | 12001- | |
| 34 | 415-943-1810 | MAT | 12001- | |
| 35 | 415-54-12560 | PLATE | 14962- |
