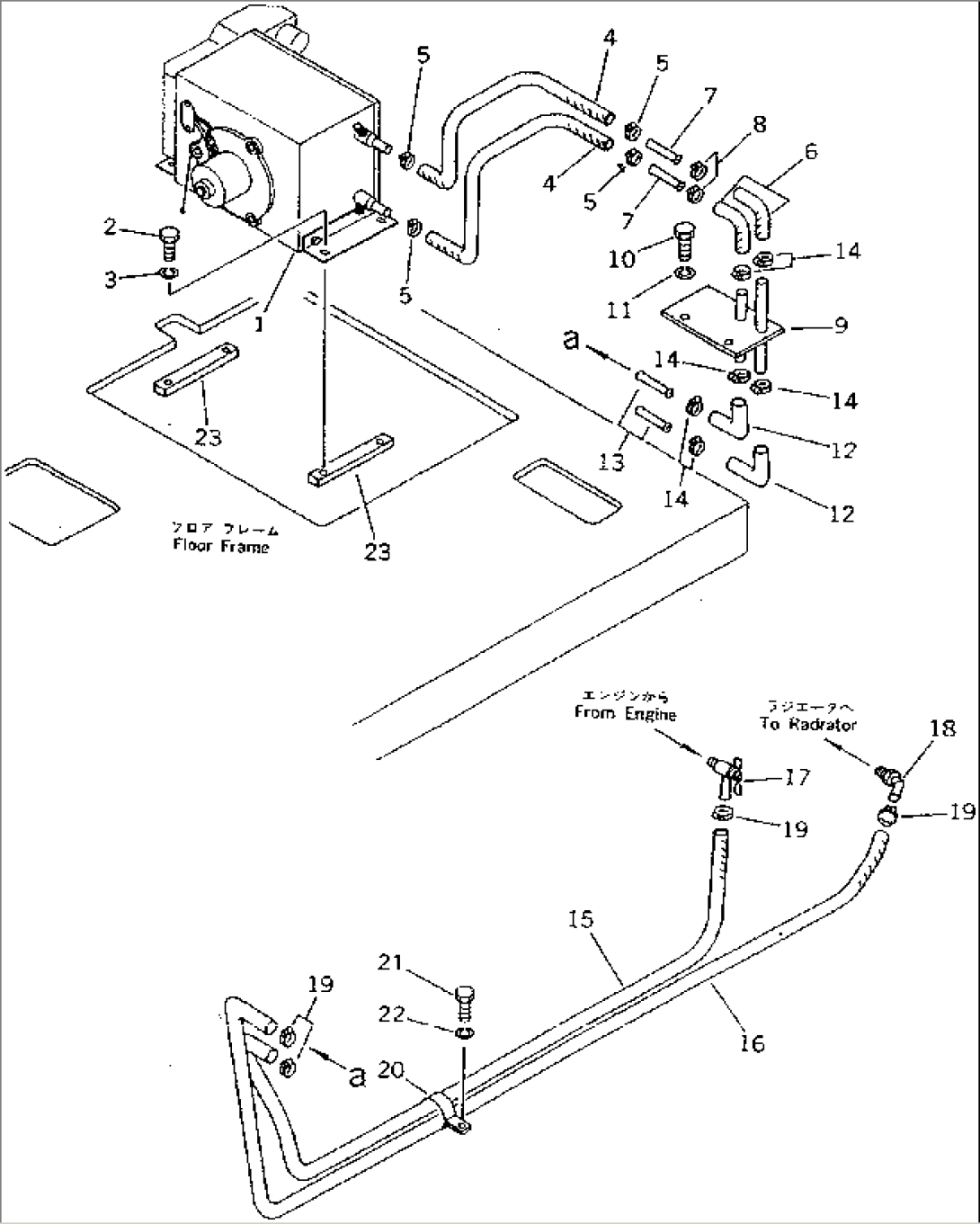

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23B-807-1210 | HEATER UNIT ASS'Y | 60001- | |
| 2 | 01010-51016 | BOLT | 60001- | |
| 3 | 01602-21030 | WASHER,SPRING | 60001- | |
| 4 | 09483-00505 | HOSE | 60001- | |
| 5 | 07281-00259 | CLAMP | .- | |
| 5 | \0\07281-00289 | CLAMP | 60001-. | |
| 6 | 09483-20550 | HOSE | 60001- | |
| 7 | 09484-00560 | CONNECTOR | 60001- | |
| 8 | 07281-00259 | CLAMP | .- | |
| 8 | \0\07281-00289 | CLAMP | 60001-. | |
| 9 | 23B-807-1250 | JOINT | 60001- | |
| 10 | 01010-51225 | BOLT | 60001- | |
| 11 | 01643-31232 | WASHER | 60001- | |
| 12 | 09483-20550 | HOSE | 60001- | |
| 13 | 09484-00560 | CONNECTOR | 60001- | |
| 14 | 07281-00259 | CLAMP | .- | |
| 14 | \0\07281-00289 | CLAMP | 60001-. | |
| 15 | 09483-00525 | HOSE | 60001- | |
| 16 | 09483-00523 | HOSE | 60001- | |
| 17 | 09482-10000 | VALVE | 60001- | |
| 18 | 23B-807-1120 | VALVE | 60001- | |
| 19 | 07281-00259 | CLAMP | .- | |
| 19 | \0\07281-00289 | CLAMP | 60001-. | |
| 20 | 232-817-1140 | CLIP | 60001- | |
| 21 | 01010-51016 | BOLT | 60001- | |
| 22 | 01643-31032 | WASHER | 60001- | |
| 23 | 23A-807-1270 | SEAT (WELDED) | 60001- |
