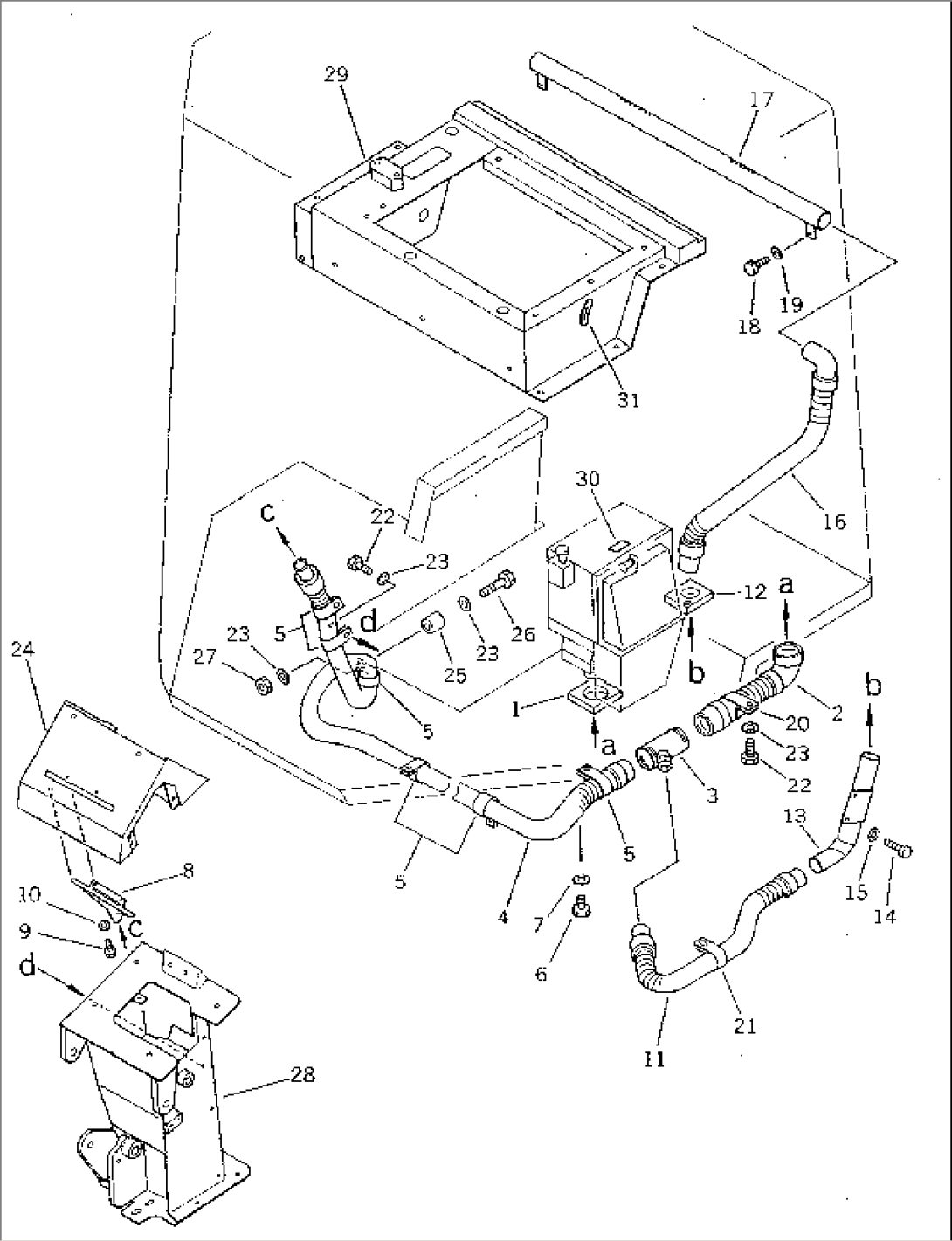

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-943-1480 | SHEET | 10001-11999 | |
| 2 | 415-943-1410 | HOSE ASS'Y | 10001-@ | |
| 3 | 415-943-1420 | JOINT | 10001-@ | |
| 4 | 415-943-1730 | HOSE ASS'Y | 10001-11999 | |
| 5 | 415-943-1720 | CLIP | 10001-11999 | |
| 6 | 01010-50816 | BOLT | 10001-11999 | |
| 7 | 01643-30823 | WASHER | 10001-11999 | |
| 8 | 09486-10000 | NOZZLE | 10001-11999 | |
| 9 | 01220-40508 | SCREW | 10001-11999 | |
| 10 | 01641-00508 | WASHER | 10001-11999 | |
| 11 | 415-943-1560 | HOSE ASS'Y | 10001-@ | |
| 12 | 415-943-1541 | SHEET | 10001-@ | |
| 13 | 415-943-1551 | PIPE | 10001-@ | |
| 14 | 01010-51016 | BOLT | 10001-11999 | |
| 15 | 01643-31032 | WASHER | 10001-11999 | |
| 16 | 415-943-1520 | HOSE ASS'Y | 10001-@ | |
| 17 | 415-943-1510 | NOZZLE | 10001-@ | |
| 18 | 01010-50820 | BOLT | 10001-11999 | |
| 19 | 01643-30823 | WASHER | 10001-11999 | |
| 20 | 205-03-71191 | CLAMP | 10001-11999 | |
| 21 | 565-07-15170 | CLIP | 10001-@ | |
| 22 | 01010-50816 | BOLT | 10001-11999 | |
| 23 | 01643-30823 | WASHER | 10001-11999 | |
| 24 | 415-943-1671 | BOX,(MODIFIED PART) | 10001-11999 | |
| 25 | 421-62-14680 | SPACER | 10001-11999 | |
| 26 | 01010-50855 | BOLT | 10001-11999 | |
| 27 | 01580-10806 | NUT | 10001-11999 | |
| 28 | 415-943-1680 | SUPPORT,(MODIFIED PART) | 10001-11999 | |
| 29 | 415-943-1760 | FRAME,SEAT (MODIFIED PART) | 10001-11999 | |
| 30 | 416-942-1791 | PLATE¤ OPERATING | 10001-11999 | |
| 31 | 416-942-1810 | PLATE¤ OPERATING | 10001-@ |
