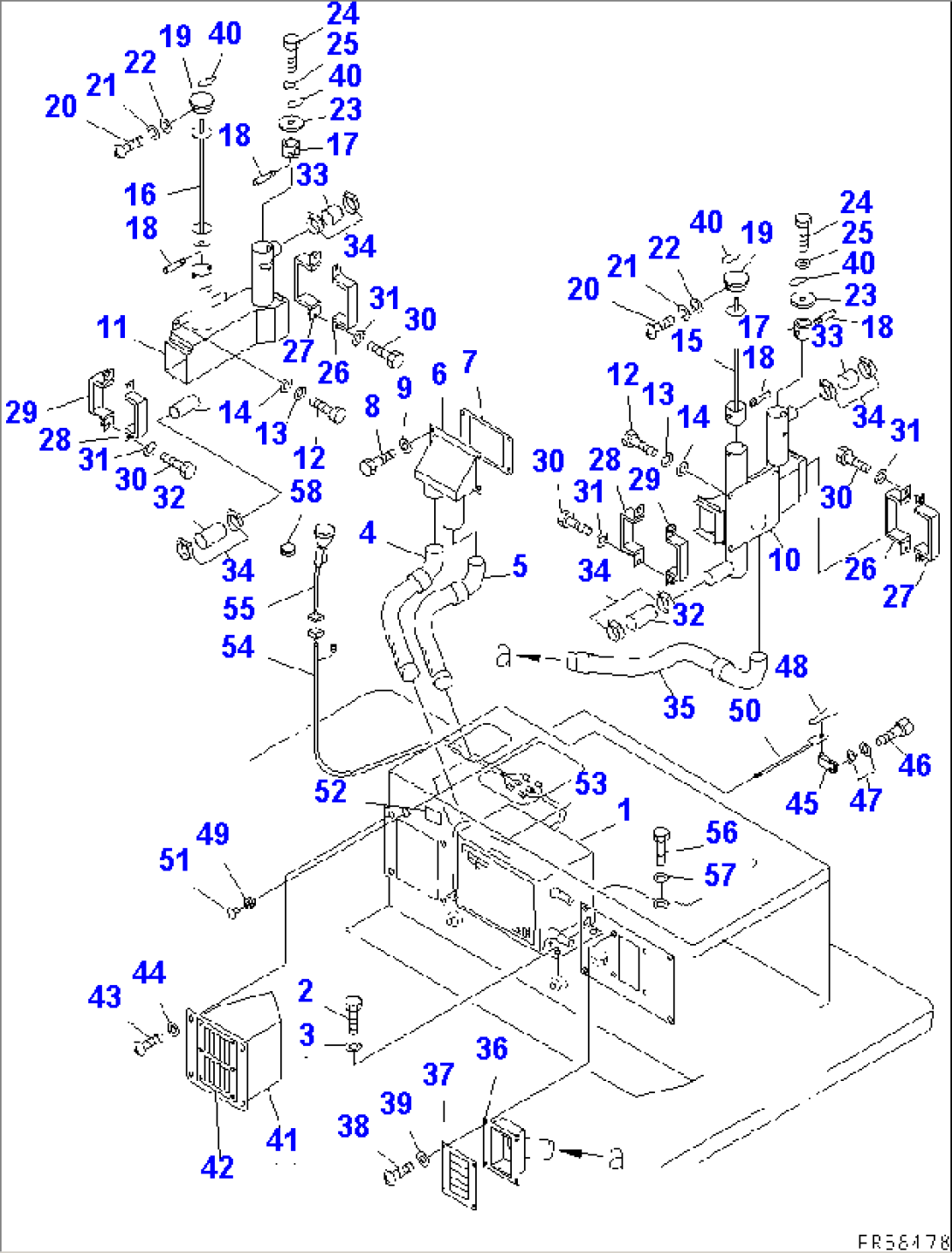

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 234-807-5130 | HEATER UNIT ASS'Y,(MODIFIED PARTS) | 11380-@ | |
| 232-817-1610 | HEATER ASS'Y | 11380-@ | ||
| 232-817-1630 | RADIATOR | 11380-@ | ||
| 232-817-1640 | FAN,BLOWER | 11380-@ | ||
| 232-817-1650 | RESISTOR,BLOWER | 11380-@ | ||
| 232-817-1660 | MOTOR | 11380-@ | ||
| 2 | 01010-51025 | BOLT | 11380-@ | |
| 3 | 01643-31032 | WASHER | 11380-@ | |
| 4 | 234-807-7510 | HOSE | 11380-@ | |
| 5 | 234-807-7520 | HOSE | 11380-@ | |
| 6 | 234-807-7130 | DUCT | 11380-@ | |
| 7 | 234-809-6360 | PLATE | 11380-@ | |
| 8 | 01010-50825 | BOLT | 11380-@ | |
| 9 | 01643-30823 | WASHER | 11380-@ | |
| 10 | 234-807-7110 | DUCT,L.H. | 11380-12016 | |
| 11 | 234-807-7120 | DUCT | 11380-12016 | |
| 12 | 01010-50616 | BOLT | 11380-@ | |
| 13 | 01643-30623 | WASHER | 11380-@ | |
| 14 | 23A-70-15190 | WASHER | 11380-@ | |
| 15 | 234-807-7180 | PIPE,L.H. | 11380-12016 | |
| 16 | 234-807-7170 | PIPE,R.H. | 11380-12016 | |
| 17 | 237-807-4261 | PIPE | 11380-12016 | |
| 18 | 237-807-4270 | BAR | 11380-12016 | |
| 19 | 234-807-7220 | CAP | 11380-12016 | |
| 20 | 01220-40410 | SCREW | 11380-12016 | |
| 21 | 01601-20410 | WASHER | 11380-12016 | |
| 22 | 01641-20405 | WASHER | 11380-12016 | |
| 23 | 234-807-7210 | CAP | 11380-12016 | |
| 24 | 01010-50670 | BOLT | 11380-12016 | |
| 25 | 01643-30623 | WASHER | 11380-12016 | |
| 26 | 234-809-6261 | CONNECTOR | 11380-@ | |
| 27 | 234-809-6271 | CONNECTOR | 11380-@ | |
| 28 | 234-809-6281 | CONNECTOR | 11380-@ | |
| 29 | 234-809-6291 | CONNECTOR | 11380-@ | |
| 30 | 01010-50820 | BOLT | 11380-@ | |
| 31 | 01643-30823 | WASHER | 11380-@ | |
| 32 | 07260-24111 | HOSE | 11380-@ | |
| 33 | 234-807-7190 | HOSE | 11380-@ | |
| 34 | 07281-00609 | CLAMP | 11380-@ | |
| 35 | 234-807-7530 | HOSE | 11380-12016 | |
| 36 | 23B-807-1830 | BOX | 11380-12016 | |
| 37 | 142-979-3221 | GRILLE ASS'Y | 11380-12016 | |
| 38 | 01220-40616 | SCREW | 11380-12016 | |
| 39 | 01643-30623 | WASHER | 11380-12016 | |
| 40 | 234-807-7230 | PLATE¤ MARK | 11380-12016 | |
| 41 | 234-807-7570 | DUCT | 11380-@ | |
| 42 | 142-979-3221 | GRILLE ASS'Y | 11380-@ | |
| 43 | 01220-40616 | SCREW | 11380-@ | |
| 44 | 01643-30623 | WASHER | 11380-@ | |
| 45 | 234-807-7680 | LEVER | 11380-@ | |
| 46 | 01252-30616 | BOLT | 11380-@ | |
| 47 | 01643-30623 | WASHER | 11380-@ | |
| 48 | 04050-01210 | PIN,COTTER | 11380-@ | |
| 49 | 08037-01008 | GROMMET | 11380-@ | |
| 50 | 234-807-7660 | LEVER | 11380-@ | |
| 51 | 234-807-7670 | KNOB | 11380-@ | |
| 52 | 234-807-7590 | PLATE¤ OPERATING | 11380-@ | |
| 53 | 234-807-5190 | PLATE¤ OPERATING | 11380-@ | |
| 54 | 234-807-7550 | HARNESS | 11380-@ | |
| 55 | 232-817-1620 | SWITCH,HEATER | 11380-@ | |
| 56 | 01010-50612 | BOLT | 11380-@ | |
| 57 | 01643-30623 | WASHER | 11380-@ | |
| 58 | 09415-00506 | CAP | 11420-12016 |
