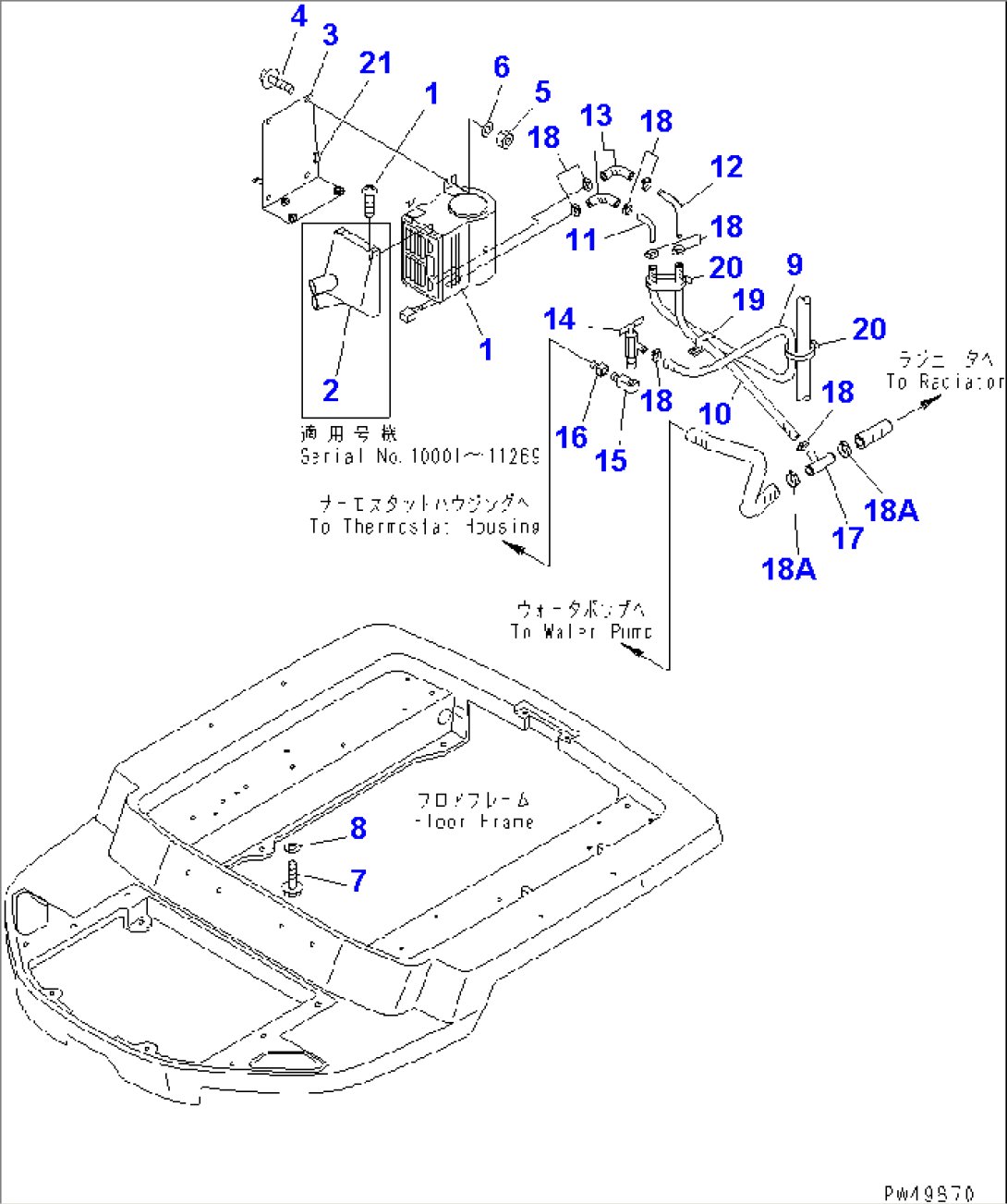

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 362-07-43120 | HEATER ASS'Y | 10001-@ | |
| 2 | 361-07-23112 | DUCT | 11270-@ | |
| 2 | 361-07-23111 | DUCT | 11170-11269 | |
| 2 | \0\361-07-23110 | DUCT | 10001-11169 | |
| 3 | 361-07-23120 | BRACKET | 10001-@ | |
| 4 | 01435-01020 | BOLT | 10001-@ | |
| 5 | 01580-11008 | NUT | 10001-@ | |
| 6 | 01643-31032 | WASHER | 10001-@ | |
| 7 | 01435-01025 | BOLT | 10001-@ | |
| 8 | 01643-31232 | WASHER | 10001-@ | |
| 9 | 09483-00413 | HOSE | 10001-@ | |
| 10 | 09483-00407 | HOSE | 10001-@ | |
| 11 | 361-07-23170 | TUBE | 10001-@ | |
| 12 | 362-07-45130 | TUBE | 10001-@ | |
| 13 | 09483-20450 | HOSE | 10001-@ | |
| 14 | 09482-50000 | VALVE | 10001-@ | |
| 15 | 363-Z11-1330 | NIPPLE | 10001-@ | |
| 16 | 361-07-23220 | ADAPTER | 10001-@ | |
| 17 | 361-07-23160 | TUBE | 10001-@ | |
| 18 | 11Y-09-11160 | CLIP | 12326-@ | |
| 18 | 362-07-45170 | CLIP | 12198-12325 | |
| 18 | 198-09-31210 | CLAMP | 12101-12197 | |
| 18 | 07281-00259 | CLAMP | 10001-12100 | |
| 18A | 07289-00035 | CLAMP | 10001-@ | |
| 19 | 421-07-11760 | CLIP | 10788-@ | |
| 19 | \0\176-911-4180 | CLIP | 10001-10787 | |
| 20 | 08034-20519 | BAND | 10788-@ | |
| 20 | 08034-20414 | BAND | 10001-10787 | |
| 21 | 361-43-28170 | SHEET | 10001-@ |
