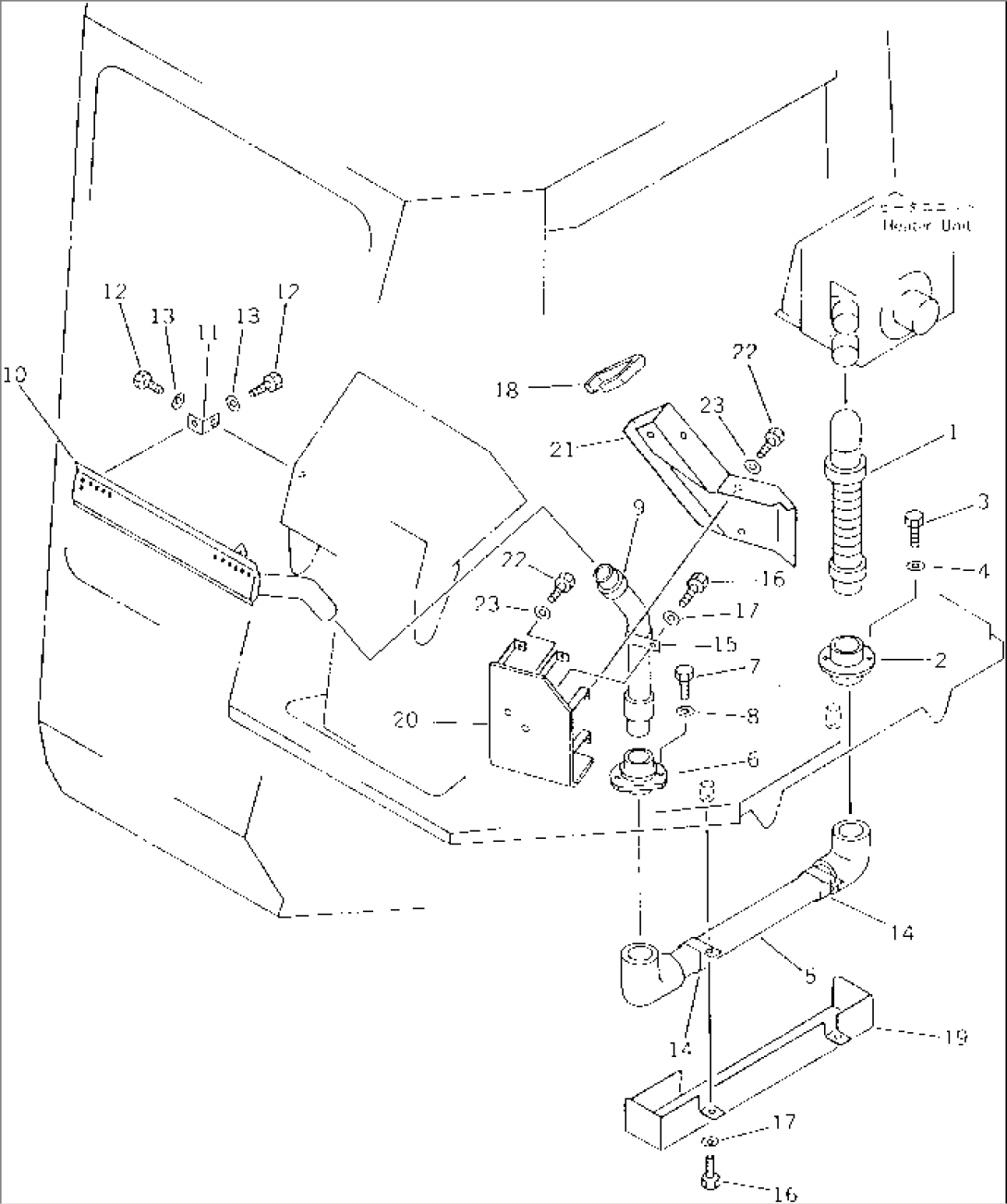

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-942-1730 | HOSE | 10001- | |
| 2 | 416-942-1360 | PIPE | 10001- | |
| 3 | 01010-50616 | BOLT | 10001- | |
| 4 | 01643-30623 | WASHER | 10001- | |
| 5 | 417-942-1260 | HOSE | .- | |
| 6 | 416-942-1370 | PIPE | 10001- | |
| 7 | 01010-50616 | BOLT | 10001- | |
| 8 | 01643-30623 | WASHER | 10001- | |
| 9 | 417-942-1250 | HOSE | .- | |
| 10 | 416-942-1210 | NOZZLE | 10001- | |
| 11 | 416-942-1280 | BRACKET | 10001- | |
| 12 | 01010-51020 | BOLT | 10001- | |
| 13 | 01643-31032 | WASHER | 10001- | |
| 14 | 205-03-71191 | CLAMP | 10001- | |
| 15 | 565-07-15170 | CLIP | 10001- | |
| 16 | 01010-50816 | BOLT | 10001- | |
| 17 | 01643-30823 | WASHER | 10001- | |
| 18 | 417-942-1240 | PROTECTOR | .- | |
| 19 | 417-942-1230 | COVER | .- | |
| 20 | 417-942-1220 | BRACKET | .- | |
| 21 | 417-942-1210 | COVER | .- | |
| 22 | 01010-50816 | BOLT | .- | |
| 23 | 01643-30823 | WASHER | .- |
