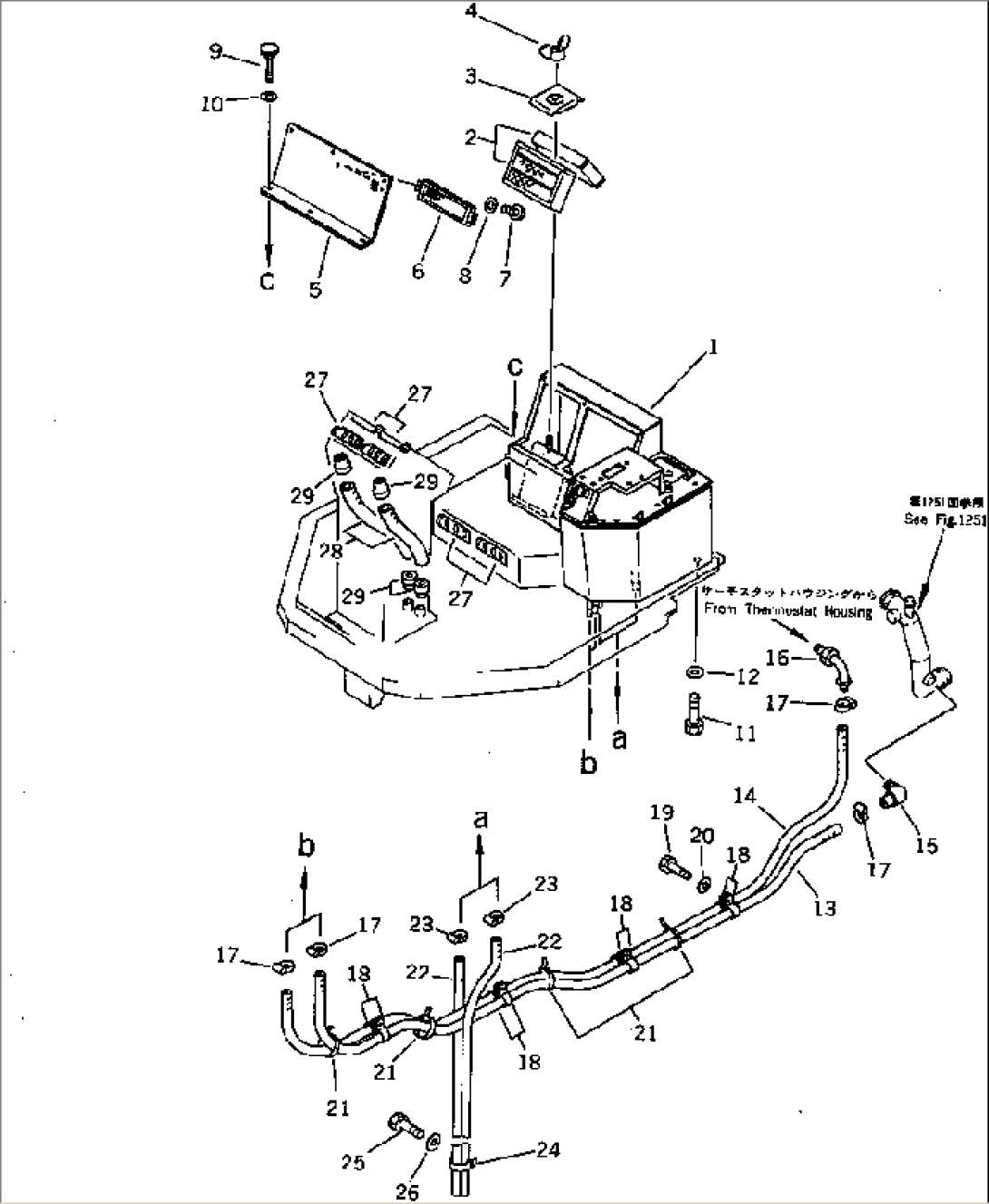

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (419-07-13100) | HEATER ASS'Y | 10001-.. | |
| 2 | 421-07-12312 | FILTER | 10001-.. | |
| 3 | 425-07-11130 | PLATE | 10001-.. | |
| 4 | 01540-20840 | NUT,WING | 10001-.. | |
| 5 | 419-54-12760 | COVER | 10001-.. | |
| 6 | 421-07-12320 | FILTER | 10001-.. | |
| 7 | 01220-40812 | SCREW | 10001-.. | |
| 8 | 01643-30823 | WASHER | 10001-.. | |
| 9 | 01232-00625 | SCREW | 10001-.. | |
| 10 | 01642-20608 | WASHER | 10001-.. | |
| 11 | 01010-51225 | BOLT | 10001-.. | |
| 12 | 01643-31232 | WASHER | 10001-.. | |
| 13 | 419-07-13110 | HOSE | .-.. | |
| 13 | \0\09483-00522 | HOSE | 10001-. | |
| 14 | 419-07-13120 | HOSE | .-.. | |
| 14 | \0\09483-00524 | HOSE | 10001-. | |
| 15 | 6137-81-3221 | ELBOW | 10001-.. | |
| 16 | 419-07-11940 | ELBOW | .-.. | |
| 16 | \0\424-07-11360 | ELBOW | 10001-. | |
| 17 | 07281-00259 | CLAMP | 10001-.. | |
| 18 | 08036-02514 | CLIP | 10001-.. | |
| 19 | 01010-51020 | BOLT | 10001-.. | |
| 20 | 01643-31032 | WASHER | 10001-.. | |
| 21 | 08034-00823 | BAND | 10001-.. | |
| 22 | 419-07-11910 | HOSE | 10001-.. | |
| 23 | 07280-01418 | CLAMP | 10001-.. | |
| 24 | 08036-02514 | CLIP | 10001-.. | |
| 25 | 01010-51020 | BOLT | 10001-.. | |
| 26 | 01643-31032 | WASHER | 10001-.. | |
| 27 | 421-07-12512 | GRILLE ASS'Y | 10001-.. | |
| 28 | 421-07-12831 | HOSE | 10001-.. | |
| 29 | 421-07-12810 | CONNECTOR | 10001-.. |
