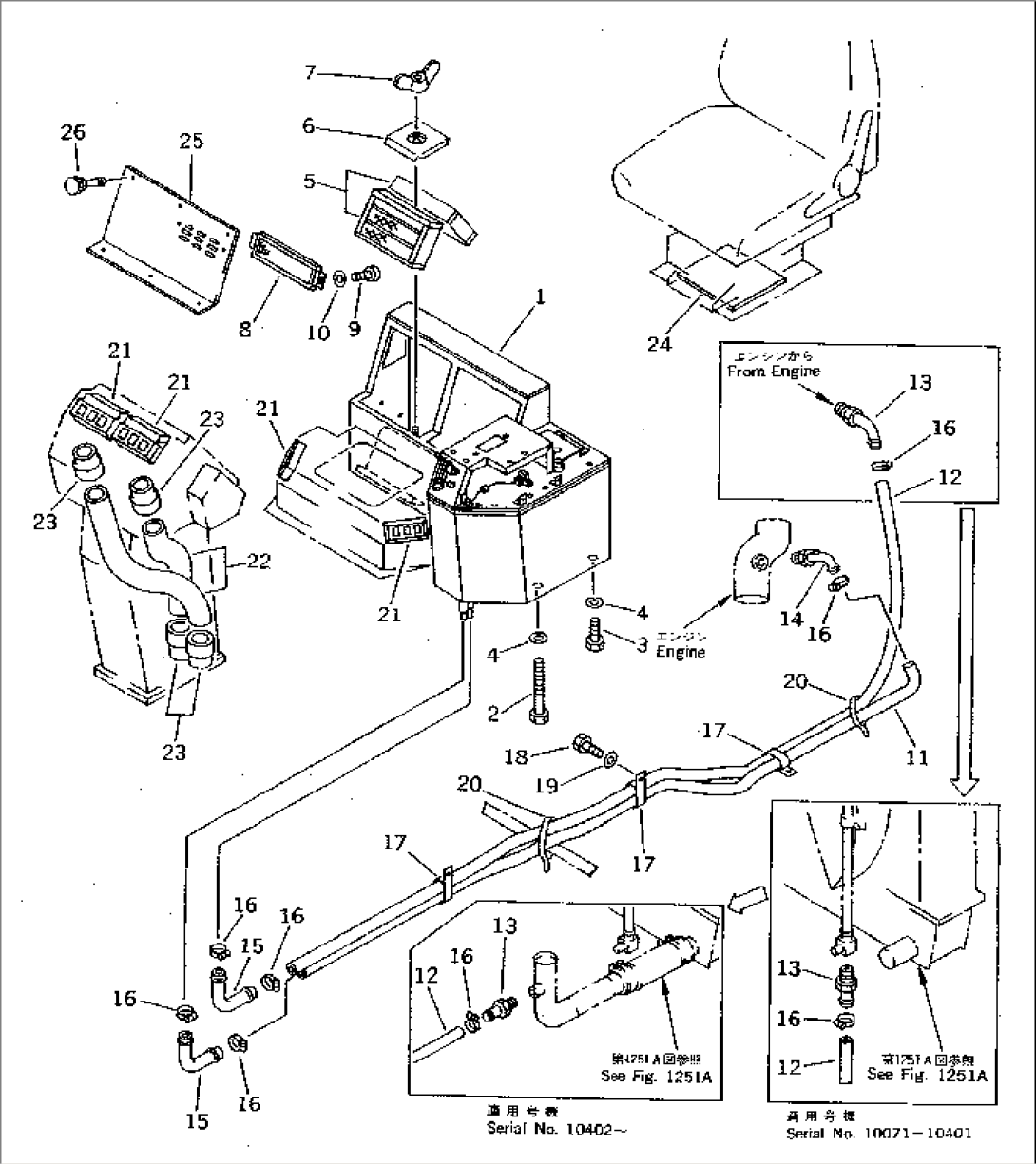

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (425-07-13200) | HEATER ASS'Y | 10001-. | |
| 2 | 01010-51625 | BOLT | 10001-. | |
| 3 | 01010-51225 | BOLT | 10001-. | |
| 4 | 01643-31232 | WASHER | 10001-. | |
| 5 | 421-07-12312 | FILTER | 10001-. | |
| 6 | 425-07-11130 | PLATE | 10001-. | |
| 7 | 01540-20840 | NUT,WING | 10001-. | |
| 8 | 421-07-12320 | FILTER | 10001-. | |
| 9 | 01220-40812 | SCREW | 10001-. | |
| 10 | 01643-30823 | WASHER | 10001-. | |
| 11 | 09483-10520 | HOSE | 10001-. | |
| 12 | 09483-10538 | HOSE | 10402-. | |
| 09483-10539 | HOSE | 10001-10401 | ||
| 13 | 424-07-11370 | TUBE | 10071-. | |
| 425-07-12150 | ELBOW | 10001-10070 | ||
| 14 | 421-07-11890 | ELBOW | 10001-. | |
| 15 | 425-07-12140 | ELBOW | 10001-. | |
| 16 | 07281-00259 | CLAMP | 10001-. | |
| 17 | 421-07-11550 | CLIP | 10001-. | |
| 18 | 01010-51220 | BOLT | 10001-. | |
| 19 | 01643-31232 | WASHER | 10001-. | |
| 20 | 08034-00536 | BAND | 10001-. | |
| 21 | 421-07-12512 | GRILLE ASS'Y | 10001-. | |
| 22 | 421-07-12831 | HOSE | 10001-. | |
| 23 | 421-07-12810 | CONNECTOR | 10001-. | |
| 24 | 423-07-11110 | INSULATOR | 10001-. | |
| 25 | 421-54-12540 | COVER | 10001-. | |
| 26 | 425-54-12960 | SCREW | 10001-. |
