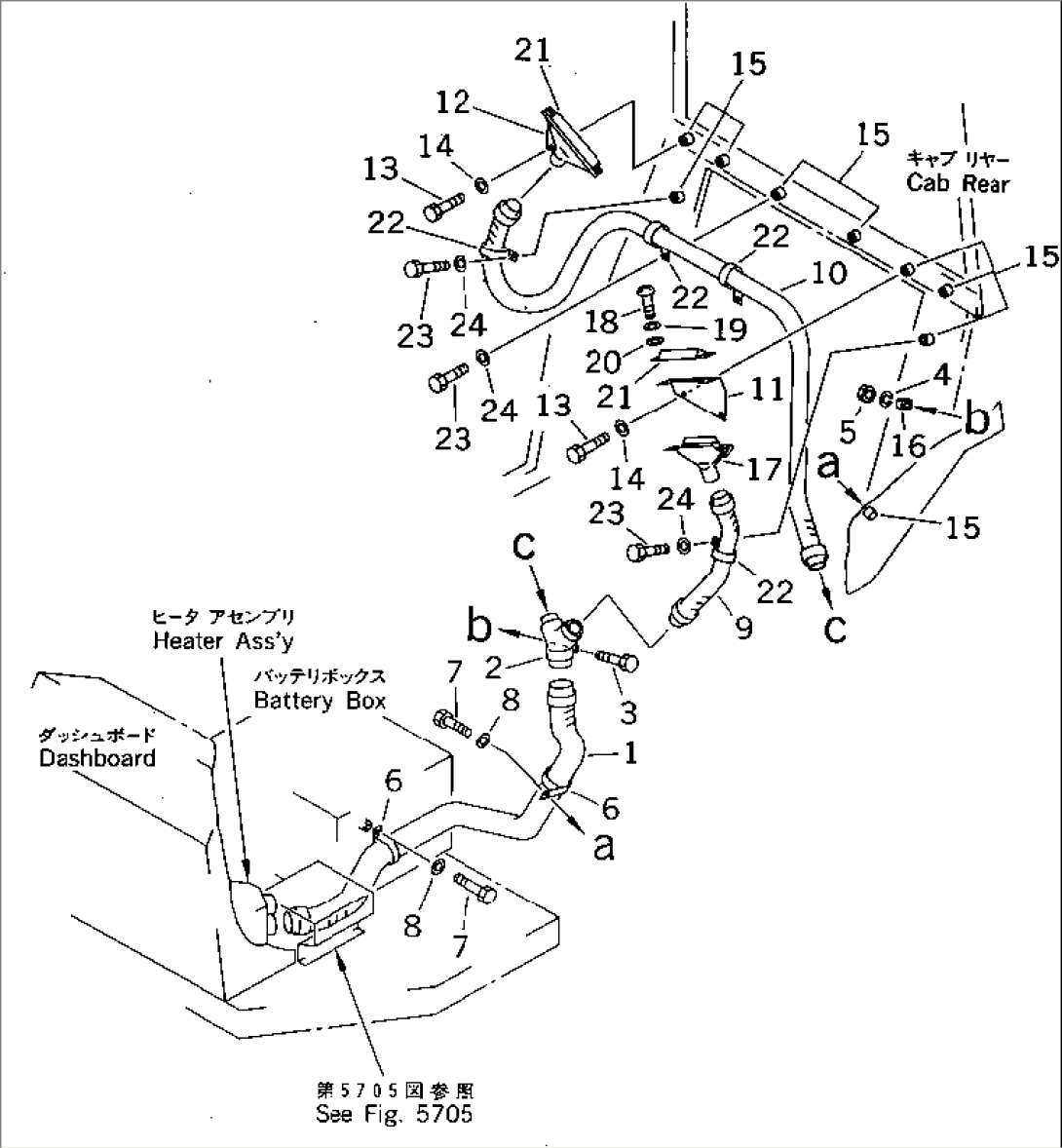

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09485-06512 | HOSE | 10011- | |
| 2 | 273-807-1610 | JOINT | 10011- | |
| 3 | 01010-50616 | BOLT | 10011- | |
| 4 | 01602-20619 | WASHER,SPRING | 10011- | |
| 5 | 01580-10605 | NUT | 10011- | |
| 6 | 273-807-1640 | CLIP | 10011- | |
| 7 | 01010-51016 | BOLT | 10011- | |
| 8 | 01643-31032 | WASHER | 10011- | |
| 9 | 09485-04505 | HOSE | 10011- | |
| 10 | 09485-04516 | HOSE | 10011- | |
| 11 | 232-817-1440 | BRACKET | 10011- | |
| 12 | 232-817-1430 | BRACKET | 10011- | |
| 13 | 01010-51016 | BOLT | 10011- | |
| 14 | 01643-31032 | WASHER | 10011- | |
| (273-807-1440) | CAB,(MODIFIED PARTS) | 10011- | ||
| 15 | 01571-01016 | SEAT | 10011- | |
| 16 | 273-807-1450 | BRACKET | 10011- | |
| 17 | 232-817-1350 | NOZZLE | 10011- | |
| 18 | 01220-40512 | SCREW | 10011- | |
| 19 | 01601-20513 | WASHER,SPRING | 10011- | |
| 20 | 01641-20508 | WASHER | 10011- | |
| 21 | 232-817-1360 | COVER | 10011- | |
| 22 | 232-807-6161 | CLIP | 10011- | |
| 23 | 01010-51016 | BOLT | 10011- | |
| 24 | 01643-31032 | WASHER | 10011- |
