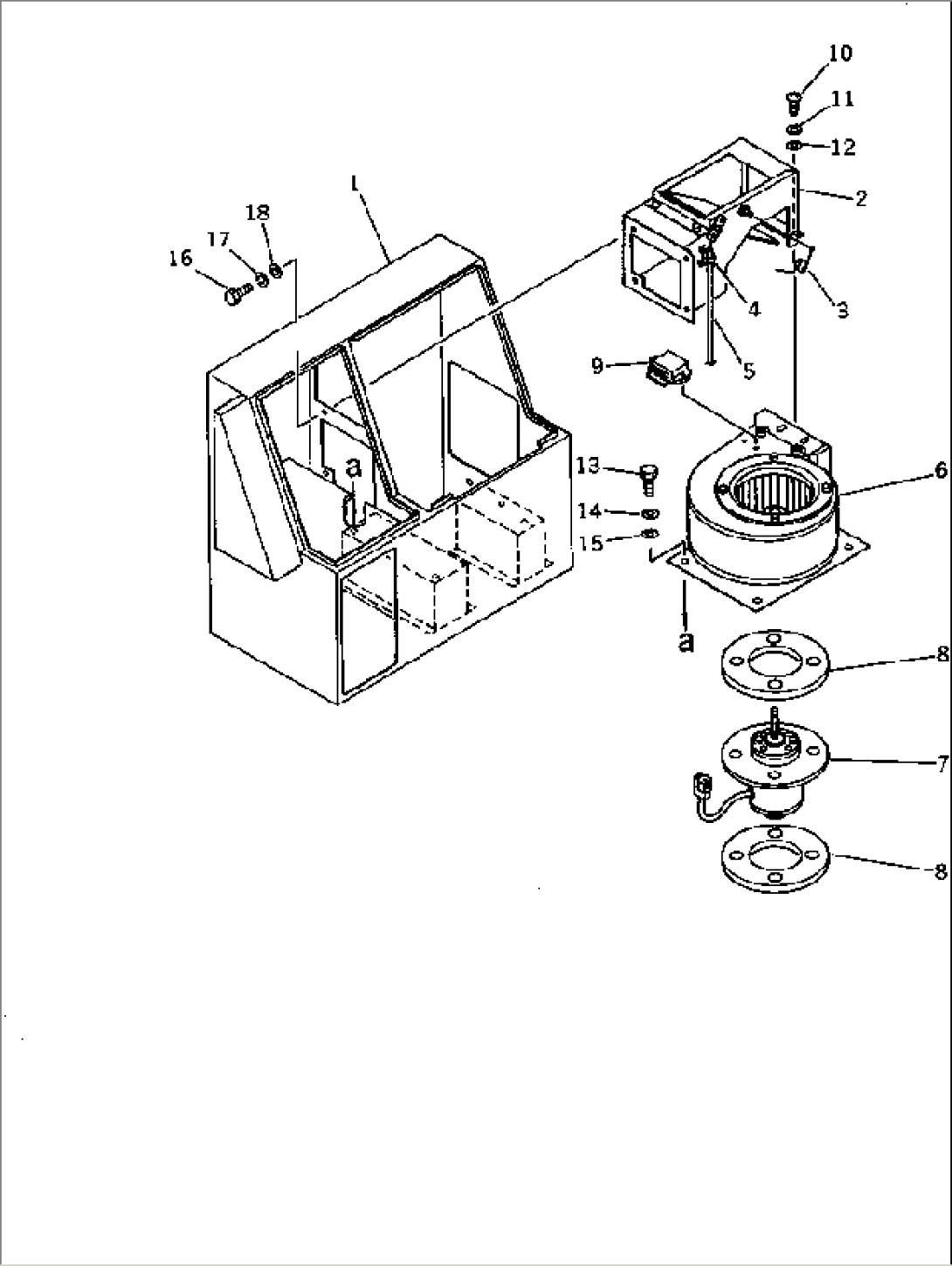

| Item | Part No. | Part Name | Qty | Serial No. |
| (419-07-13100) | HEATER ASS'Y | 10001-.. | ||
| 1 | \6\ | BOX | 10001-.. | |
| 2 | 425-07-11330 | DAMPER ASS'Y | 10001-.. | |
| 3 | 425-07-11750 | SPRING | 10001-.. | |
| 4 | 425-07-11760 | CLIP | 10001-.. | |
| 5 | 425-07-11510 | WIRE | 10001-.. | |
| 6 | 425-07-11390 | BLOWER ASS'Y | 10001-.. | |
| 7 | 425-07-11810 | MOTOR ASS'Y | 10001-.. | |
| 8 | 425-07-11820 | RUBBER | 10001-.. | |
| 9 | 425-07-11830 | RESISTOR ASS'Y | 10001-.. | |
| 10 | 01220-40508 | SCREW | 10001-.. | |
| 11 | 01601-20513 | WASHER,SPRING | 10001-.. | |
| 12 | 01642-20508 | WASHER | 10001-.. | |
| 13 | 01010-51225 | BOLT | 10001-.. | |
| 14 | 01602-21236 | WASHER,SPRING | 10001-.. | |
| 15 | 01642-21216 | WASHER | 10001-.. | |
| 16 | 01010-50816 | BOLT | 10001-.. | |
| 17 | 01602-20825 | WASHER,SPRING | 10001-.. | |
| 18 | 01642-20810 | WASHER | 10001-.. |
