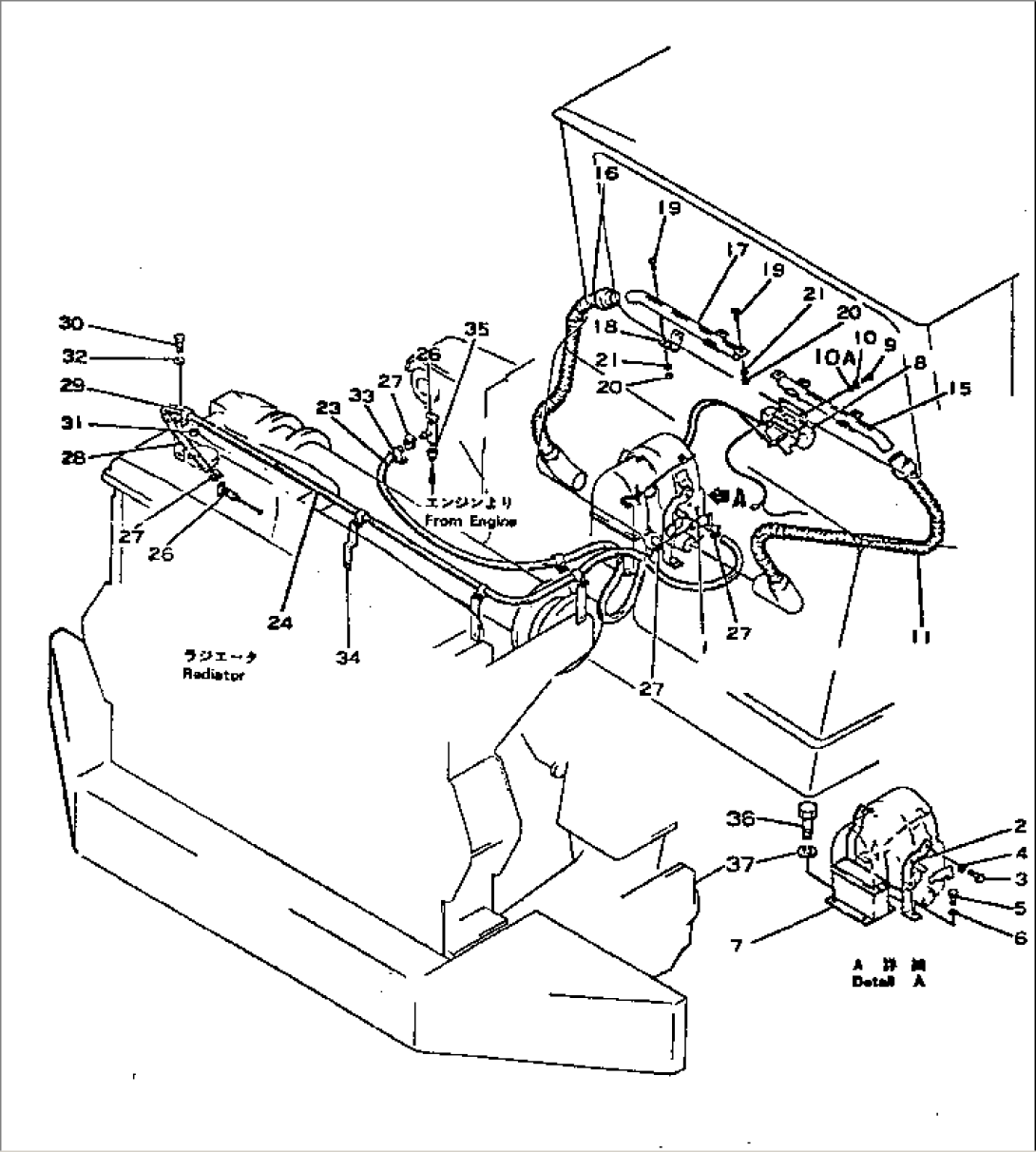

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-07-15110 | CAR HEATER ASS'Y | 1005-@ | |
| 2 | 566-07-15210 | BRACKET | 1005-@ | |
| 3 | 01010-50820 | BOLT | 1005-@ | |
| 4 | 01602-20825 | WASHER | 1005-@ | |
| 5 | 01010-51020 | BOLT | 1005-@ | |
| 6 | 01602-21030 | WASHER | 1005-@ | |
| 7 | 566-07-15220 | DUCT | 1005-@ | |
| 8 | 566-07-15120 | LEVER ASS'Y | 1005-@ | |
| 9 | 01220-40616 | SCREW | 1005-@ | |
| 10 | 01611-06063 | WASHER | 1005-1409 | |
| 10A | 01640-20610 | WASHER | 1005-@ | |
| 11 | 566-07-15231 | HOSE,L.H. | 1157-@ | |
| 11 | \0\566-07-15230 | HOSE,L.H. | 1005-1156 | |
| 15 | 566-07-15251 | NOZZLE (WELDED) | 1031-1156 | |
| 15 | 566-07-15250 | NOZZLE | 1005-1030 | |
| 16 | 566-07-15241 | HOSE,R.H. | 1157-@ | |
| 16 | \0\566-07-15240 | HOSE,R.H. | 1005-1156 | |
| 17 | 566-07-15261 | NOZZLE (WELDED) | 1031-1156 | |
| 17 | 566-07-15260 | NOZZLE | 1005-1030 | |
| 18 | 566-07-15270 | CLIP (WELDED) | 1005-1156 | |
| 19 | 01220-40616 | SCREW (WELDED) | 1031-1156 | |
| 19 | 01220-40616 | SCREW (WELDED) | 1005-1030 | |
| 20 | 01580-00605 | NUT | 1005-1030 | |
| 21 | 01602-00619 | WASHER (WELDED) | 1031-1156 | |
| 21 | 01602-00619 | WASHER (WELDED) | 1005-1030 | |
| 23 | 09483-00517 | HOSE | 1005-@ | |
| 24 | 09483-00527 | HOSE | 1005-@ | |
| 26 | 567-07-15221 | NIPPLE | 1410-@ | |
| 26 | \0\09482-00000 | VALVE | 1005-1409 | |
| 27 | 565-95-17230 | CLAMP | 1005-1409 | |
| 28 | 566-07-15280 | BRACKET | 1005-1409 | |
| 29 | 08036-02514 | CLIP | 1005-@ | |
| 30 | 01010-50816 | BOLT | 1005-1409 | |
| 31 | 01580-10806 | NUT | 1005-1409 | |
| 32 | 01602-20825 | WASHER | 1005-1409 | |
| 33 | 08036-02514 | CLIP | 1005-@ | |
| 34 | 566-07-15280 | BRACKET | 1157-@ | |
| 34 | 566-07-15310 | BRACKET | 1005-1156 | |
| 35 | 566-35-15210 | BUSHING | 1005-@ | |
| 36 | 01010-51020 | BOLT | 1005-@ | |
| 37 | 01602-21030 | WASHER | 1005-@ |
