| Item | Part No. | Part Name | Qty | Serial No. |

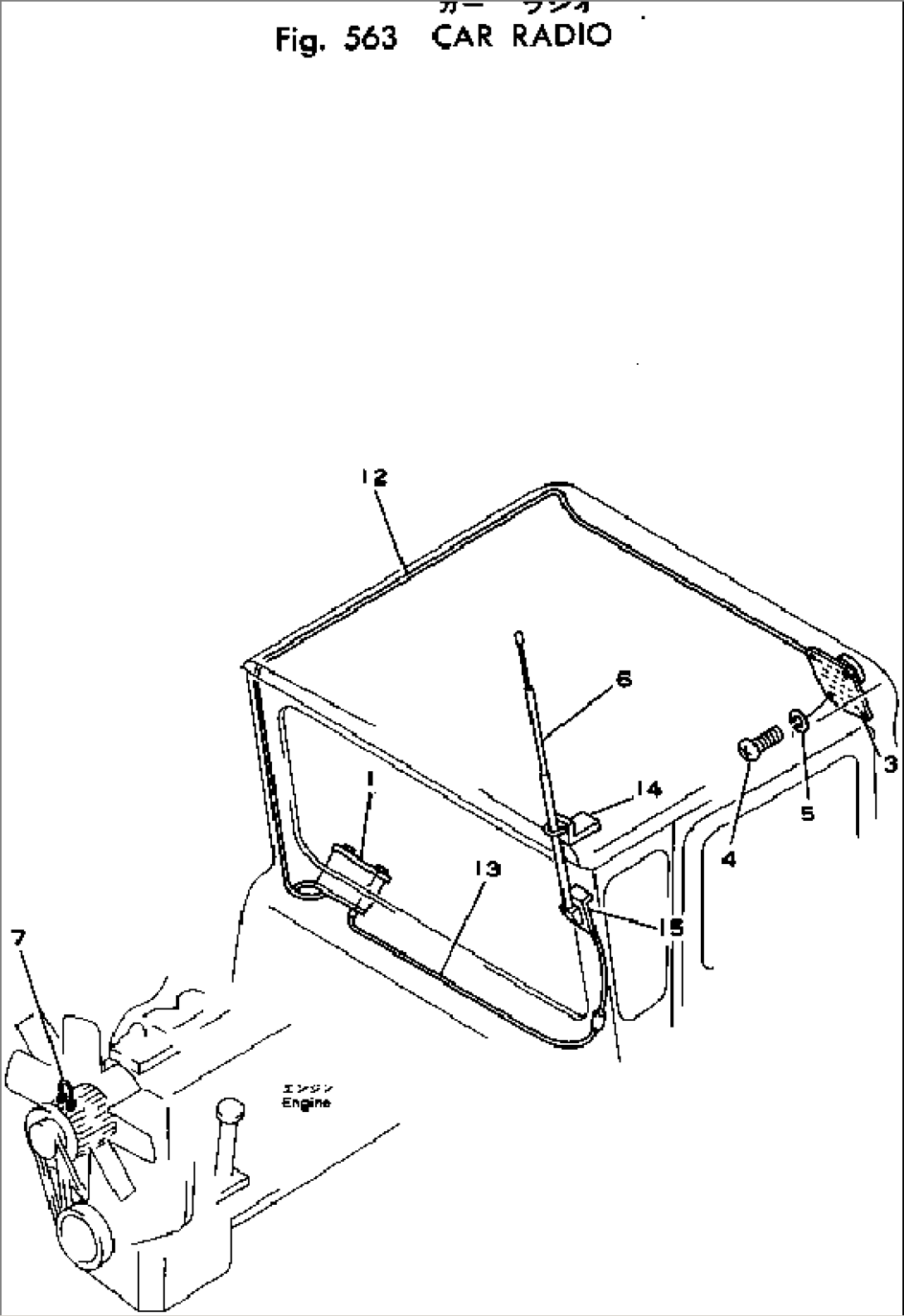

| 566-07-12002 | CAR RADIO ASS'Y | 1002- | ||
| 1 | 565-07-12111 | RADIO | 1002- | |
| 2 | 566-07-12141 | STAY | 1002- | |
| 3 | 565-07-12120 | SPEAKER | 1002- | |
| 4 | 01220-30616 | SCREW | 1002- | |
| 5 | 01602-20619 | WASHER | 1002- | |
| 6 | 565-07-12130 | ANTENNA | 1002- | |
| 7 | 566-07-12231 | CONDENSER | 1002- | |
| 8 | 01010-50816 | BOLT | 1002- | |
| 9 | 01602-20825 | WASHER | 1002- | |
| 10 | 01642-20810 | WASHER | 1002- | |
| 11 | 566-06-16920 | STICKER | 1002- | |
| 12 | 566-54-23862 | HARNESS | 1002- | |
| 13 | 566-07-12150 | CABLE | 1002- | |
| 14 | 566-07-12310 | BRACKET | 1002- | |
| 15 | 566-07-12320 | BRACKET | 1002- |
