| Item | Part No. | Part Name | Qty | Serial No. |

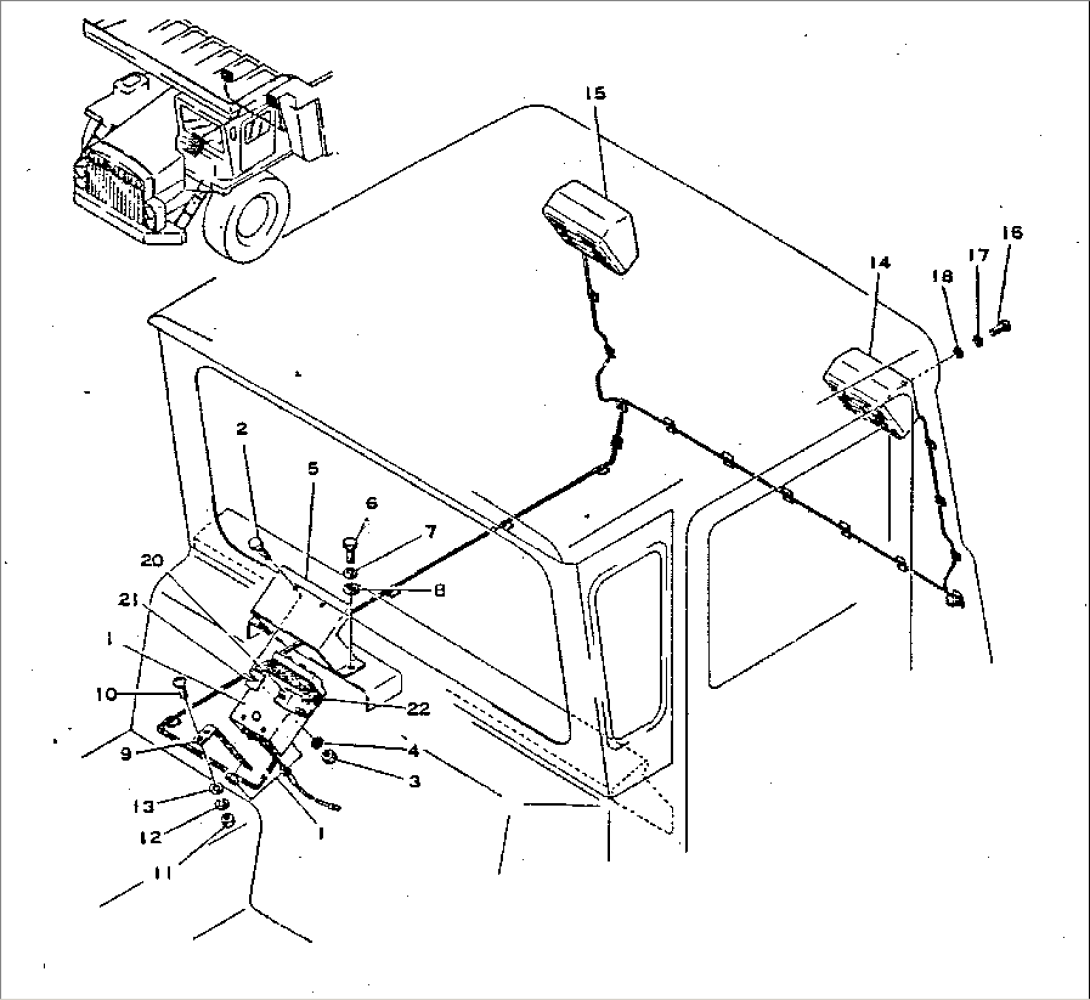

| 566-07-13001 | CAR STEREO ASS'Y | 1002- | ||
| 1 | 566-07-13111 | STEREO | 1002- | |
| 2 | 01010-30612 | BOLT | 1002- | |
| 3 | 01580-00605 | NUT | 1002- | |
| 4 | 01611-06063 | WASHER | 1002- | |
| 5 | 566-07-13311 | BRACKET | 1002- | |
| 6 | 01010-31020 | BOLT | 1002- | |
| 7 | 01602-01030 | WASHER | 1002- | |
| 8 | 01643-01032 | WASHER | 1002- | |
| 9 | 566-07-13120 | STAY | 1002- | |
| 10 | 01220-30616 | SCREW | 1002- | |
| 11 | 01580-00605 | NUT | 1002- | |
| 12 | 01602-00619 | WASHER | 1002- | |
| 13 | 01642-20608 | WASHER | 1002- | |
| 14 | 566-07-13210 | SPEAKER,L.H. | 1002- | |
| 15 | 566-07-13220 | SPEAKER,R.H. | 1002- | |
| 16 | 01220-30412 | SCREW | 1002- | |
| 17 | 01601-00410 | WASHER | 1002- | |
| 18 | 01641-00405 | WASHER | 1002- | |
| 20 | 566-07-13130 | BRACKET | 1002- | |
| 21 | 566-07-13140 | BRACKET | 1002- | |
| 22 | 566-07-13320 | PAD | 1002- |
