| Item | Part No. | Part Name | Qty | Serial No. |

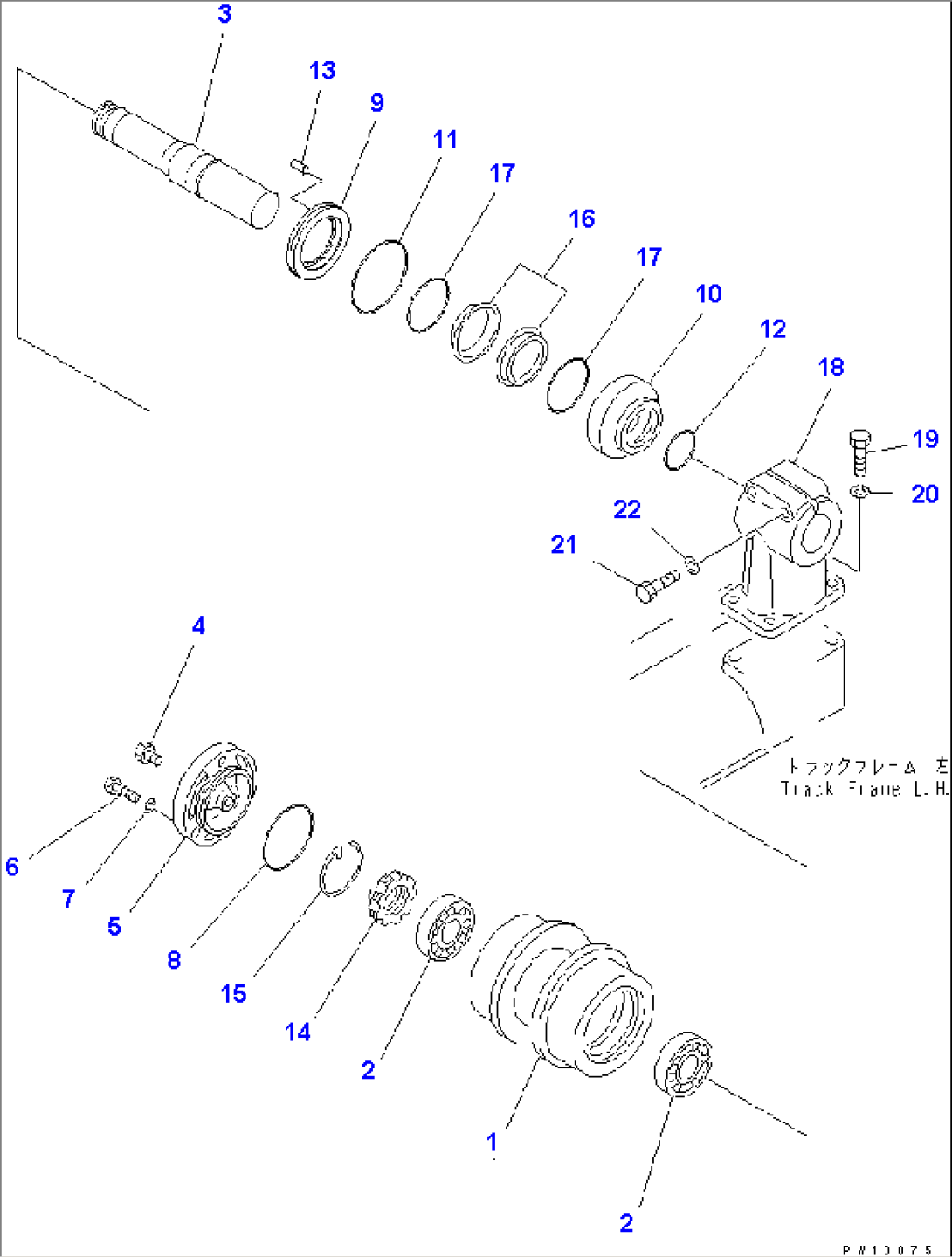

| 175-30-00517 | CARRIER ROLLER ASS'Y | 31231- | ||
| 1 | 175-30-45110 | ROLLER,CARRIER | 15686- | |
| 2 | 06002-30212 | BEARING | 31231- | |
| 3 | 175-30-25131 | SHAFT,CARRIER ROLLER | 31231- | |
| 4 | 07052-31624 | PLUG | 15686- | |
| 5 | 175-30-45131 | COVER | 31231- | |
| 6 | 01010-81435 | BOLT | 31231- | |
| 7 | 01643-31445 | WASHER | 15686- | |
| 8 | 07000-02110 | O-RING | 31231- | |
| 9 | 175-30-35161 | RING | 31231- | |
| 10 | 175-30-35171 | RING | 31231- | |
| 11 | 07000-02130 | O-RING | 15686- | |
| 12 | 07000-02070 | O-RING | 31231- | |
| 13 | 04020-00616 | PIN,DOWEL | 31231- | |
| 14 | 170-30-15190 | NUT | 15686- | |
| 15 | 170-30-15210 | RING,SNAP | 15686- | |
| 154-30-00831 | FLOATING SEAL ASS'Y | 31231- | ||
| 16 | 154-30-00821 | SEAL RING ASS'Y | 31231- | |
| \6\ | RING,SEAL | 31231- | ||
| 17 | 150-30-00370 | O-RING ASS'Y | 31231- | |
| \6\ | O-RING | 31231- | ||
| 18 | 175-30-25184 | SUPPORT,CARRIER ROLLER | 15686- | |
| 19 | 01010-82065 | BOLT | 31231- | |
| 20 | 01643-32060 | WASHER | 31231- | |
| 21 | 01010-82090 | BOLT | 15686- | |
| 22 | 01643-32060 | WASHER | 15686- |
