| Item | Part No. | Part Name | Qty | Serial No. |
| 56C-23-10002 | CENTER AXLE ASS'Y | 1001- | ||
| 56C-23-11001 | DIFFERENTIAL ASS'Y,CENTER | 1001- | ||

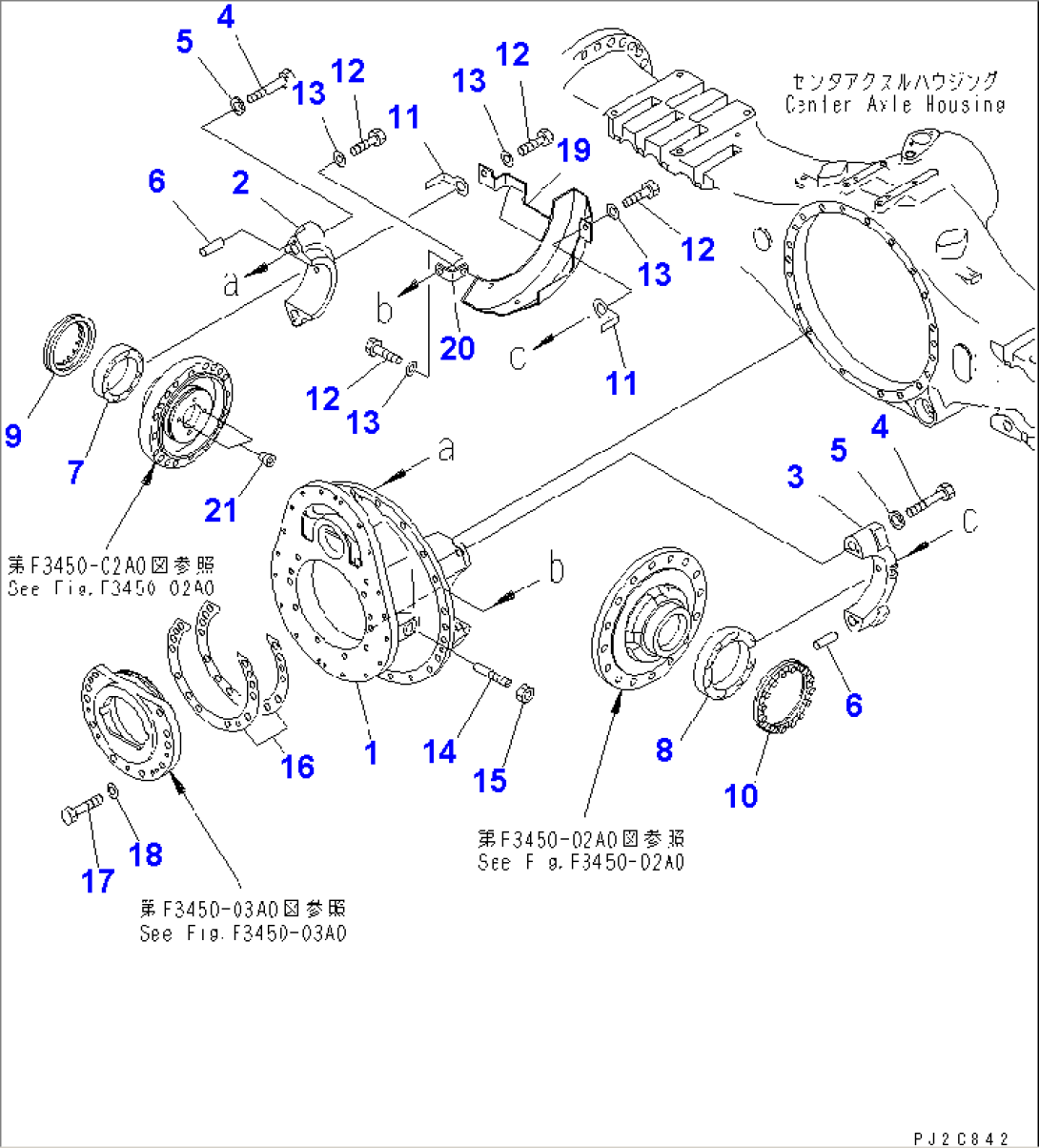

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-01A0 TO F3450-04A0. | ||||
| 56C-23-11102 | CARRIER ASS'Y | 1001- | ||
| 1 | \6\ | CARRIER | 1001- | |
| 2 | \6\ | CAP | 1001- | |
| 3 | \6\ | CAP | 1001- | |
| 4 | \6\ | BOLT | 1001- | |
| 5 | \6\ | WASHER | 1001- | |
| 6 | \6\ | PIN,DOWEL | 1001- | |
| 7 | 567-22-71180 | BEARING | 1001- | |
| 8 | 56B-22-12860 | BEARING | 1001- | |
| 9 | 567-22-71140 | NUT | 1001- | |
| 10 | 56B-22-11141 | NUT | 1001- | |
| 11 | 421-22-11150 | LOCK | 1001- | |
| 12 | 01010-61435 | BOLT | 1001- | |
| 13 | 01643-31445 | WASHER | 1001- | |
| 14 | 421-22-11180 | BOLT | 1001- | |
| 15 | 01583-12414 | NUT | 1001- | |
| 16 | 56B-23-16360 | SHIM¤ 0.15MM | 1001- | |
| 56B-23-16370 | SHIM¤ 0.2MM | 1001- | ||
| 56B-23-16380 | SHIM¤ 0.3MM | 1001- | ||
| 56B-23-16390 | SHIM¤ 0.8MM | 1001- | ||
| 17 | 01010-61655 | BOLT | 1001- | |
| 18 | 01643-51645 | WASHER | 1001- | |
| 19 | 56C-23-19610 | COVER | 1001- | |
| 20 | 56C-23-19620 | PLATE | 1001- | |
| 21 | 56B-22-11570 | PLUG | 1001- |
