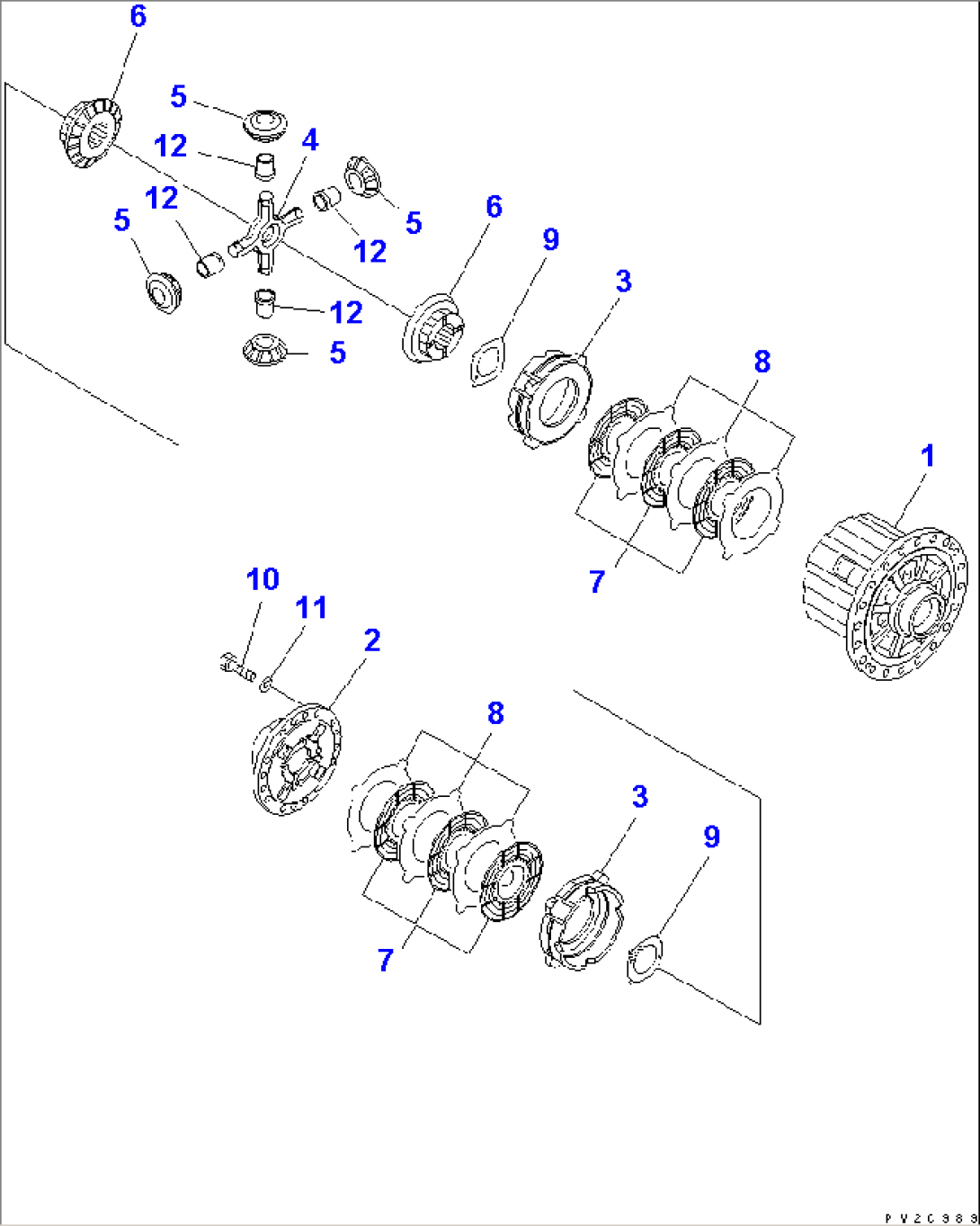

| Item | Part No. | Part Name | Qty | Serial No. |
| (56D-23-10002) | CENTER AXLE ASS'Y | 1001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-01A0 TO F3450-08A0. | ||||
| (56D-23-11001) | DIFFERENTIAL ASS'Y,CENTER | 1001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-01A0 TO F3450-04A0. | ||||
| 56D-22-18101 | DIFFERENTIAL ASS'Y | 1001- | ||
| 1 | 56D-22-18111 | CASE | 1001- | |
| 2 | 56D-22-18121 | COVER | 1001- | |
| 3 | 56D-22-17130 | RING,PRESSURE | 1001- | |
| 4 | 56D-22-17140 | SHAFT | 1001- | |
| 5 | 56D-22-17150 | PINION | 1001- | |
| 6 | 56D-22-17161 | GEAR,SIDE | 1001- | |
| 7 | 423-22-37410 | DISC | 1001- | |
| 8 | 423-22-27450 | PLATE¤ 3.0MM | 1001- | |
| 423-22-27460 | PLATE¤ 3.1MM | 1001- | ||
| 9 | 56D-22-17210 | WASHER¤ 4.0MM | 1001- | |
| 56D-22-17230 | WASHER¤ 4.1MM | 1001- | ||
| 10 | 01010-61240 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 56D-22-17170 | BUSHING | 1001- |
