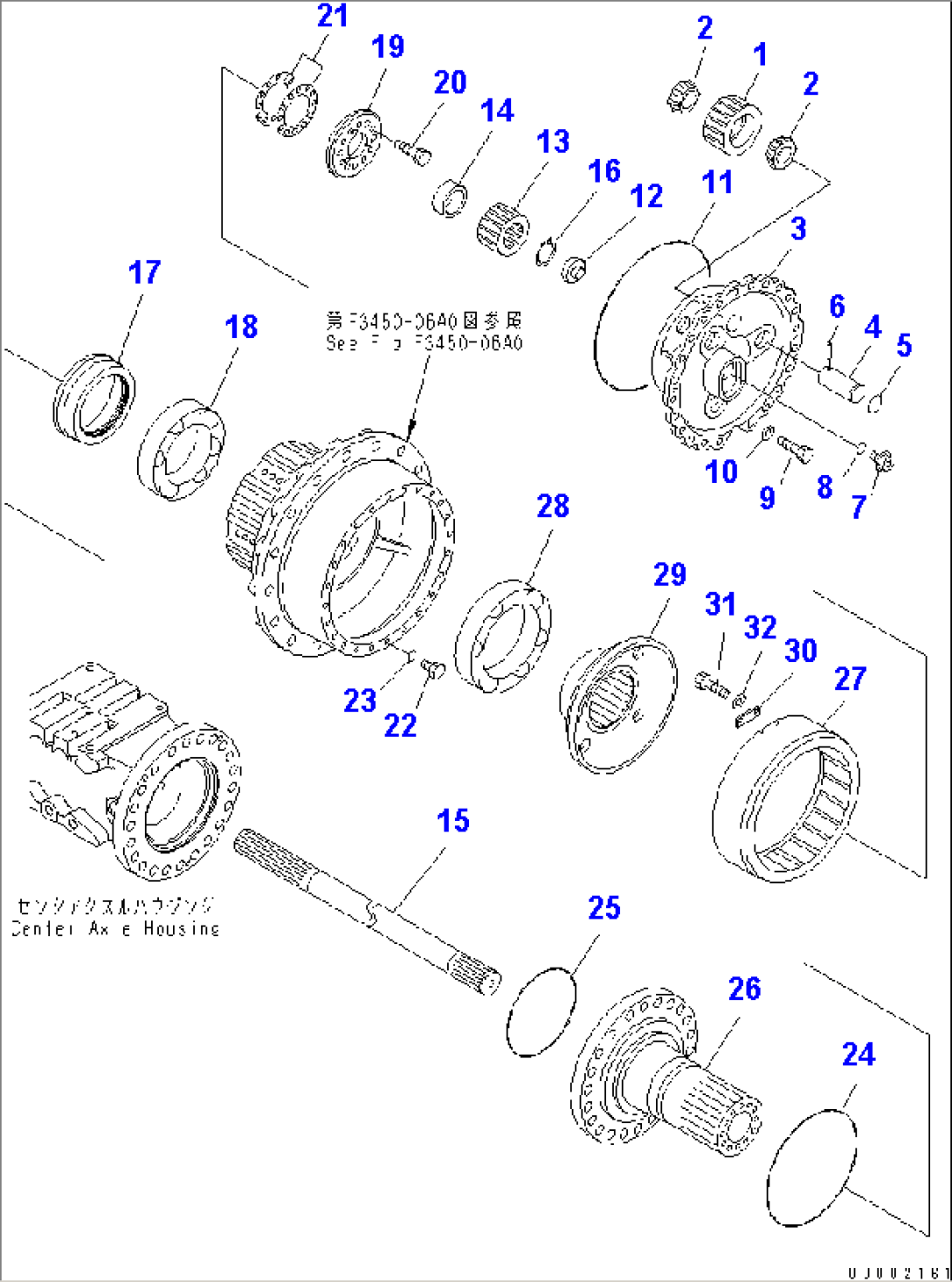

| Item | Part No. | Part Name | Qty | Serial No. |
| (56D-23-10002) | CENTER AXLE ASS'Y | 1001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-01A0 TO F3450-08A0. | ||||
| 56D-23-12002 | C.FINAL &BRAKE ASS'Y | 1001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-05A0 TO F3450-07A0. | ||||
| 1 | 56D-22-12531 | GEAR,PLANET | 1001- | |
| 2 | 423-22-12811 | BEARING | 1001- | |
| 3 | 56D-22-12611 | CARRIER,FINAL | 1001- | |
| 4 | 56D-22-12511 | SHAFT | 1001- | |
| 5 | 07000-13034 | O-RING | 1001- | |
| 6 | 419-22-12570 | PIN | 1001- | |
| 7 | 07044-13620 | PLUG | 1001- | |
| 8 | 07002-13634 | O-RING | 1001- | |
| 9 | 01010-61440 | BOLT | 1001- | |
| 10 | 01643-31445 | WASHER | 1001- | |
| 11 | 07000-15335 | O-RING | 1001- | |
| 12 | 286-22-12630 | BUTTON | 1001- | |
| 13 | 56D-22-12440 | GEAR,SUN | 1001- | |
| 14 | 56D-22-12430 | SPACER | 1001- | |
| 15 | 56D-22-12412 | SHAFT | 1001- | |
| 16 | 04064-05520 | RING,SNAP | 1001- | |
| 17 | 56D-23-12631 | RETAINER | 1001- | |
| 18 | 23W-22-22340 | BEARING | 1001- | |
| 19 | 56D-22-12211 | RETAINER | 1001- | |
| 20 | 01010-61250 | BOLT | 1001- | |
| 21 | 423-22-12260 | SHIM¤ 0.05MM | 1001- | |
| 423-22-12250 | SHIM¤ 0.2MM | 1001- | ||
| 423-22-12240 | SHIM¤ 0.3MM | 1001- | ||
| 423-22-12230 | SHIM¤ 1.0MM | 1001- | ||
| 22 | 07040-11409 | PLUG | 1001- | |
| 23 | 07002-11423 | O-RING | 1001- | |
| 24 | 07000-15260 | O-RING | 1001- | |
| 25 | 07000-15200 | O-RING | 1001- | |
| 26 | 56D-22-13211 | TUBE | 1001- | |
| 27 | 56D-22-12542 | GEAR,RING | 1033- | |
| 56D-22-12541 | GEAR,RING | 1001-1032 | ||
| 28 | 23W-22-22350 | BEARING | 1001- | |
| 29 | 56D-22-12340 | HUB | 1001- | |
| 30 | 423-22-12561 | PLATE | 1001- | |
| 31 | 01010-60820 | BOLT | 1001- | |
| 32 | 01643-30823 | WASHER | 1001- |
