| Item | Part No. | Part Name | Qty | Serial No. |
| CENTER AXLE ASS'Y,(SEE FIG. F3450-01A0) | A10001- | |||

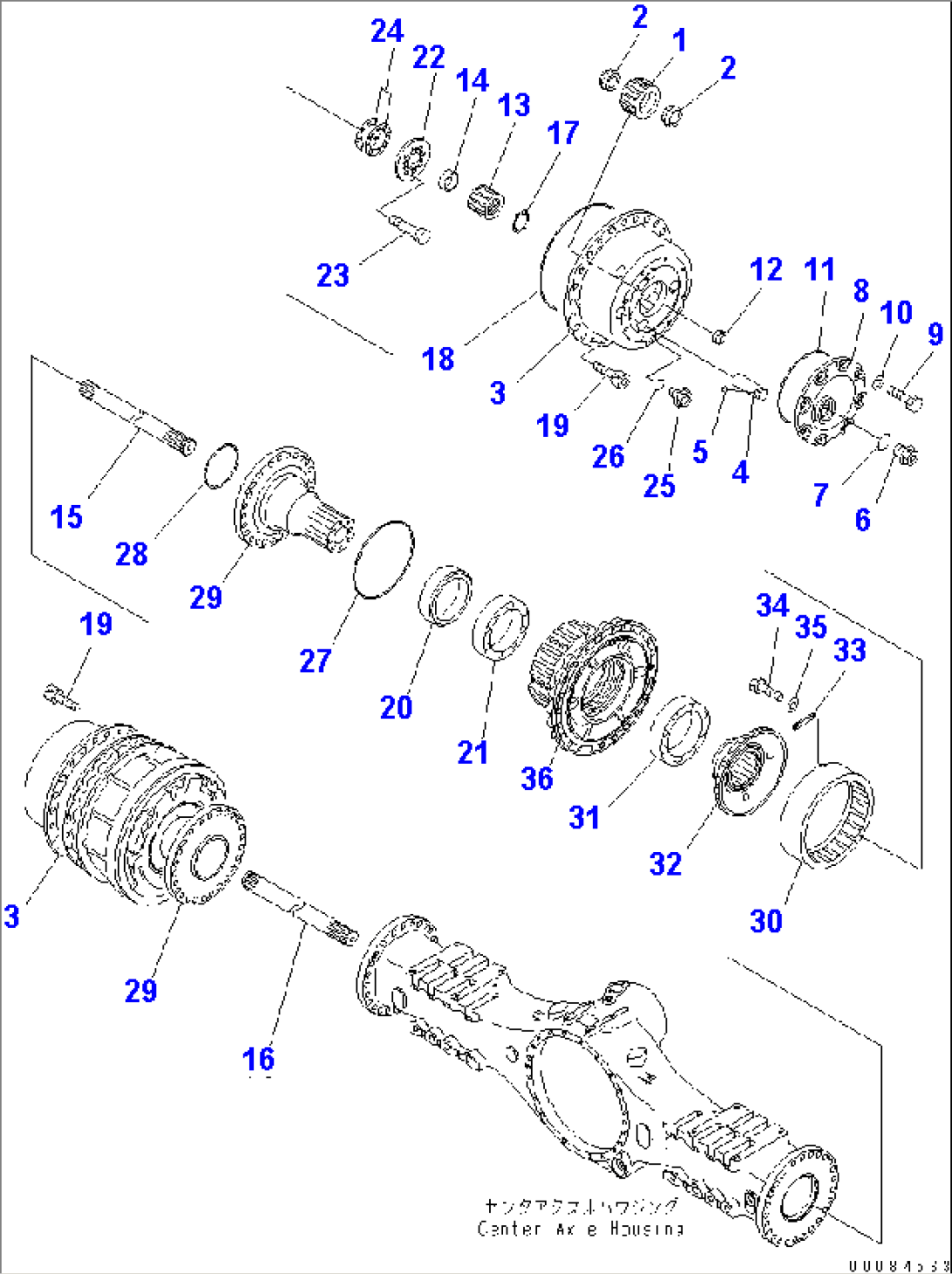

| 56C-23-12005 | FINAL DRIVE ASS'Y | A10001- | ||
| 1 | 56B-22-12530 | GEAR,PLANET | A10001- | |
| 2 | 421-22-12770 | BEARING | A10001- | |
| 3 | 56B-22-12610 | CARRIER | A10001- | |
| 4 | 424-22-12510 | SHAFT | A10001- | |
| 5 | 04260-01587 | BALL | A10001- | |
| 6 | 07044-13620 | PLUG | A10001- | |
| 7 | 07002-13634 | O-RING | A10001- | |
| 8 | 56B-22-12621 | COVER | A10001- | |
| 9 | 01010-61235 | BOLT | A10001- | |
| 10 | 01643-31232 | WASHER | A10001- | |
| 11 | 07000-15280 | O-RING | A10001- | |
| 12 | 286-22-12630 | BUTTON | A10001- | |
| 13 | 56B-22-12420 | GEAR,SUN | A10001- | |
| 14 | 421-22-12350 | SPACER | A10001- | |
| 15 | 56C-22-12411 | SHAFT | A10001- | |
| 16 | 56C-22-12440 | SHAFT | A10001- | |
| 17 | 04064-06020 | RING,SNAP | A10001- | |
| 18 | 07000-15410 | O-RING | A10001- | |
| 19 | 01252-41025 | BOLT | A10001- | |
| 20 | 56C-23-12631 | RETAINER | A10001- | |
| 21 | 23W-22-22350 | BEARING | A10001- | |
| 22 | 421-22-12220 | RETAINER | A10001- | |
| 23 | 01010-61450 | BOLT | A10001- | |
| 24 | 421-22-12190 | SHIM, 1.0MM | A10001- | |
| 421-22-12180 | SHIM, 0.5MM | A10001- | ||
| 421-22-12170 | SHIM, 0.2MM | A10001- | ||
| 421-22-12160 | SHIM, 0.05MM | A10001- | ||
| 25 | 07044-12412 | PLUG | A10001- | |
| 26 | 07002-12434 | O-RING | A10001- | |
| 27 | 07000-15300 | O-RING | A10001- | |
| 28 | 07000-15170 | O-RING | A10001- | |
| 29 | 56C-22-13210 | TUBE | A10001- | |
| 30 | 56B-22-12541 | RING,GEAR | A10001- | |
| 31 | 421-22-12790 | BEARING | A10001- | |
| 32 | 56B-22-12341 | HUB | A10001- | |
| 33 | 421-22-12360 | PLATE | A10001- | |
| 34 | 01010-60820 | BOLT | A10001- | |
| 35 | 01643-30823 | WASHER | A10001- | |
| 36 | HUB,(SEE FIG. F3450-06A0) | A10001- |
