| Item | Part No. | Part Name | Qty | Serial No. |
| (56C-23-20052) | CENTER AXLE ASS'Y | 2207- | ||
| (\1\56C-23-20051) | CENTER AXLE ASS'Y | 2001-2206 | ||
| (\2\56C-23-20050) | CENTER AXLE ASS'Y | (2001-2189) | ||

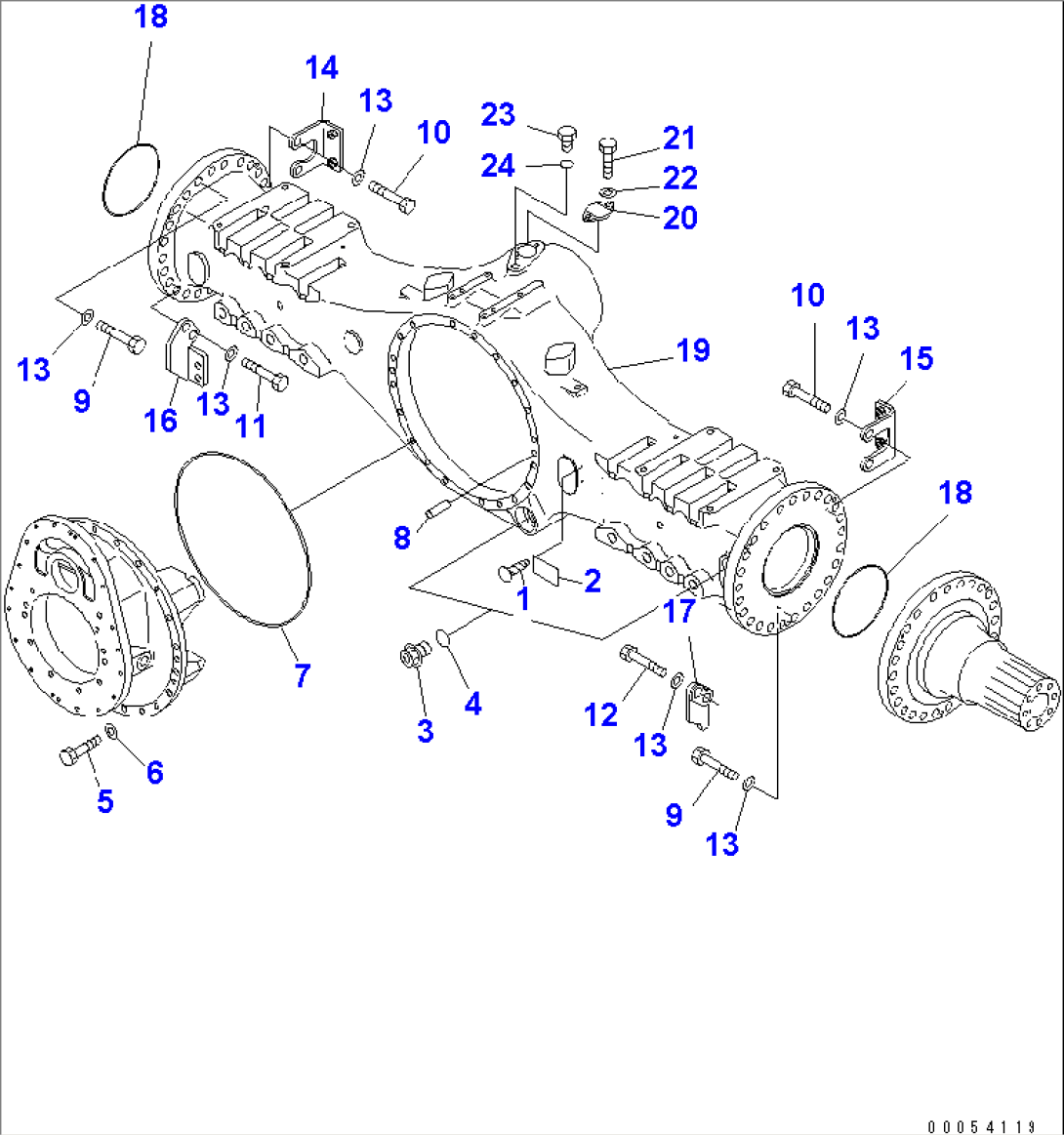

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-01A1 TO F3450-11A1. | ||||
| 1 | 04418-13060 | SCREW | 2001- | |
| 2 | 815-02-10110 | PLATE, NAME,LIMITED SUPPRY | 2001- | |
| 3 | 07044-13620 | PLUG | 2001- | |
| 4 | 07002-13634 | O-RING | 2001- | |
| 5 | 01010-61450 | BOLT | 2001- | |
| 6 | 01643-31445 | WASHER | 2001- | |
| 7 | 07000-15445 | O-RING | 2001- | |
| 8 | 04020-01638 | PIN,DOWEL | 2001- | |
| 9 | 01011-62000 | BOLT | 2001- | |
| 10 | 01011-62010 | BOLT | 2001- | |
| 11 | 01011-62015 | BOLT | 2001- | |
| 12 | 01011-62020 | BOLT | 2001- | |
| 13 | 01643-32060 | WASHER | 2001- | |
| 14 | 56B-43-18181 | BRACKET | 2001- | |
| 15 | 56B-43-18152 | BRACKET | 2001- | |
| 16 | 56B-33-21850 | BRACKET | 2001- | |
| 17 | 56B-33-21860 | BRACKET | 2001- | |
| 18 | 07000-15170 | O-RING | 2001- | |
| 19 | 56C-23-13151 | HOUSING | 2207- | |
| 19 | \1\56C-23-13150 | HOUSING | 2001-2206 | |
| 20 | 56B-22-19510 | CAP | 2001- | |
| 21 | 01010-61025 | BOLT | 2001- | |
| 22 | 01643-51032 | WASHER | 2001- | |
| 23 | 07040-12012 | PLUG | 2001- | |
| 24 | 07002-12034 | O-RING | 2001- |
