| Item | Part No. | Part Name | Qty | Serial No. |
| (56B-23-20052) | AXLE ASS'Y | 2462- | ||
| (\1\56B-23-20051) | AXLE ASS'Y | 2001-2461 | ||
| (\2\56B-23-20050) | AXLE ASS'Y | (2001-2430) | ||

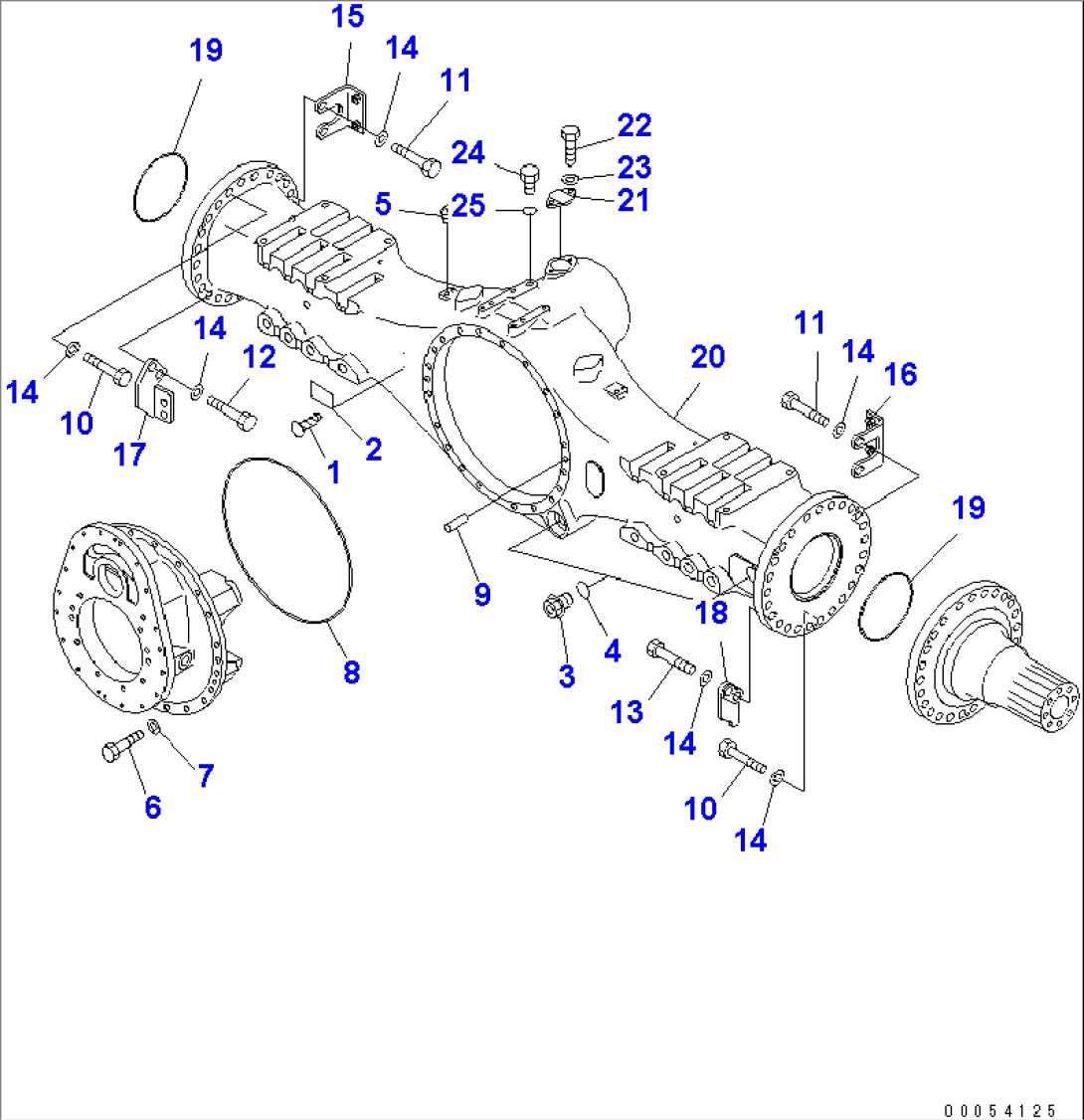

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-01A1 TO F3450-13A1. | ||||
| 1 | 04418-13060 | SCREW | 2001- | |
| 2 | 815-02-10110 | PLATE, NAME | 2001- | |
| 3 | 07044-13620 | PLUG | 2001- | |
| 4 | 07002-13634 | O-RING | 2001- | |
| 5 | 07042-70211 | PLUG | 2001-2070 | |
| 6 | 01010-61450 | BOLT | 2001- | |
| 7 | 01643-31445 | WASHER | 2001- | |
| 8 | 07000-15455 | O-RING | 2001- | |
| 9 | 04020-01638 | PIN,DOWEL | 2001- | |
| 10 | 01011-62000 | BOLT | 2001- | |
| 11 | 01011-62010 | BOLT | 2001- | |
| 12 | 01011-62015 | BOLT | 2001- | |
| 13 | 01011-62020 | BOLT | 2001- | |
| 14 | 01643-32060 | WASHER | 2001- | |
| 15 | 56B-43-18181 | BRACKET | 2001- | |
| 16 | 56B-43-18152 | BRACKET | 2001- | |
| 17 | 56B-33-21850 | BRACKET | 2001- | |
| 18 | 56B-33-21860 | BRACKET | 2001- | |
| 19 | 07000-15170 | O-RING | 2001- | |
| 20 | 56B-23-13133 | HOUSING | 2462- | |
| 20 | \1\56B-23-13132 | HOUSING | 2071-2461 | |
| 20 | \0\56B-23-13131 | HOUSING | 2001-2070 | |
| 21 | 56B-22-19510 | CAP | 2001- | |
| 22 | 01010-61025 | BOLT | 2001- | |
| 23 | 01643-51032 | WASHER | 2001- | |
| 24 | 07040-12012 | PLUG | 2001- | |
| 25 | 07002-12034 | O-RING | 2001- |
