| Item | Part No. | Part Name | Qty | Serial No. |
| (56B-23-20005) | AXLE ASS'Y | 7079- | ||
| (56B-23-20004) | AXLE ASS'Y | 7012-7078 | ||
| (\1\56B-23-20003) | AXLE ASS'Y | 7001-7011 | ||

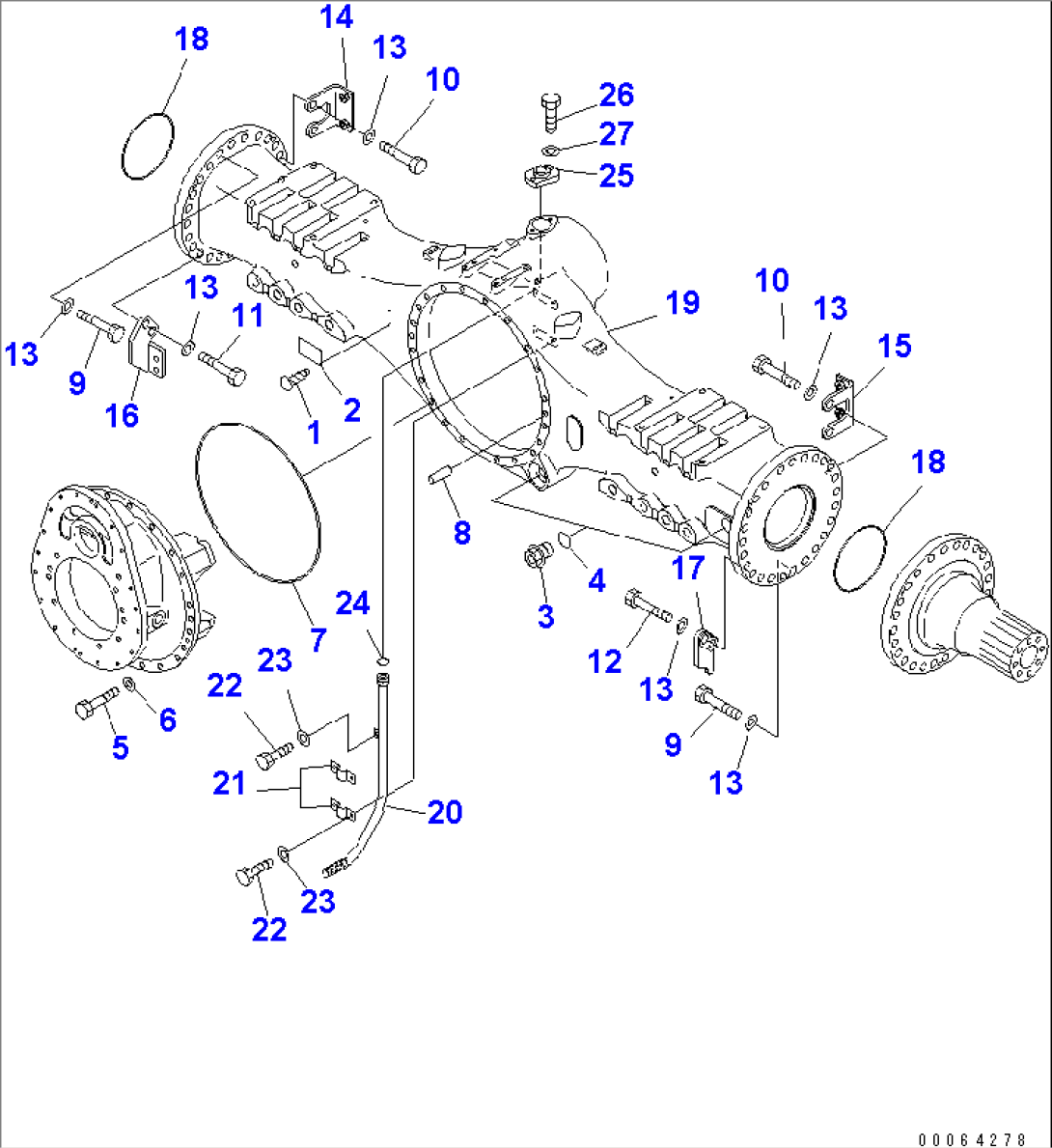

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-01A0 TO F3450-13A0. | ||||
| 1 | 04418-13060 | SCREW | 7001- | |
| 2 | 815-02-10110 | PLATE, NAME,LIMITED SUPPRY | 7001- | |
| 3 | 07044-13620 | PLUG | 7001- | |
| 4 | 07002-13634 | O-RING | 7001- | |
| 5 | 01010-61450 | BOLT | 7001- | |
| 6 | 01643-31445 | WASHER | 7001- | |
| 7 | 07000-15455 | O-RING | 7001- | |
| 8 | 04020-01638 | PIN,DOWEL | 7001- | |
| 9 | 01011-62000 | BOLT | 7001- | |
| 10 | 01011-62010 | BOLT | 7001- | |
| 11 | 01011-62015 | BOLT | 7001- | |
| 12 | 01011-62020 | BOLT | 7001- | |
| 13 | 01643-32060 | WASHER | 7001- | |
| 14 | 56B-43-18181 | BRACKET | 7001- | |
| 15 | 56B-43-18152 | BRACKET | 7001- | |
| 16 | 56B-33-21850 | BRACKET | 7001- | |
| 17 | 56B-33-21860 | BRACKET | 7001- | |
| 18 | 07000-15170 | O-RING | 7001- | |
| 19 | 56B-23-13112 | HOUSING | 7012- | |
| 19 | \1\56B-23-13111 | HOUSING | 7001-7011 | |
| 20 | 56B-23-19660 | TUBE | 7001- | |
| 21 | 07282-12288 | CLAMP | 7001- | |
| 22 | 01010-61020 | BOLT | 7001- | |
| 23 | 01643-51032 | WASHER | 7001- | |
| 24 | 07000-13022 | O-RING | 7001- | |
| 25 | 56B-22-11990 | FLANGE | 7001- | |
| 26 | 01010-61030 | BOLT | 7001- | |
| 27 | 01643-51032 | WASHER | 7001- |
