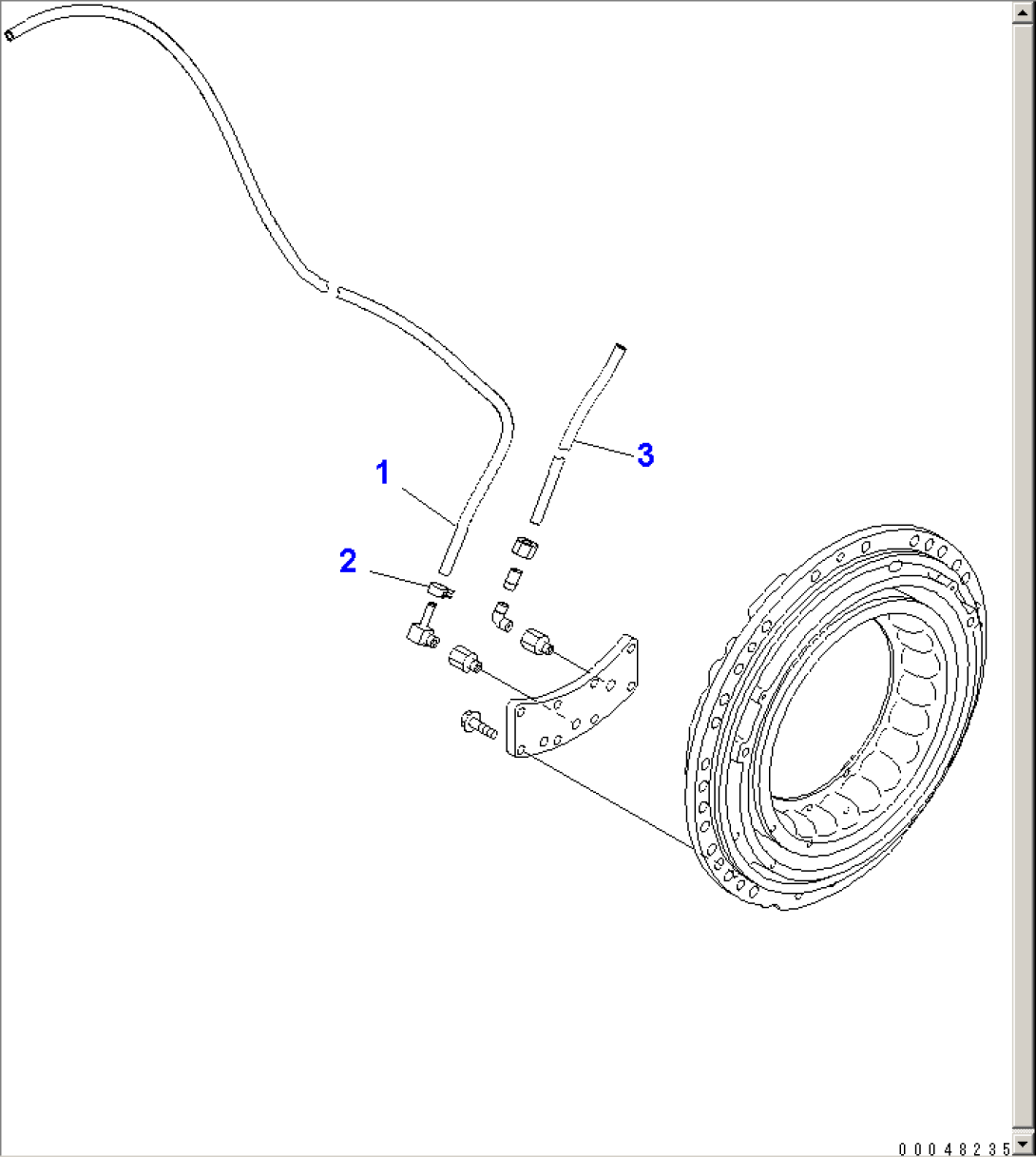

| Item | Part No. | Part Name | Qty | Serial No. |
| (56B-23-20005) | AXLE ASS'Y | 2629- | ||
| (56B-23-20004) | AXLE ASS'Y | 2462-2628 | ||
| (\1\56B-23-20003) | AXLE ASS'Y | 2001-2461 | ||
| (\2\56B-23-20002) | AXLE ASS'Y | (2001-2430) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-01A0 TO F3450-13A0. | ||||
| (56B-23-22003) | FINAL AND BRAKE A. | 2001- | ||
| (\2\56B-23-22002) | FINAL AND BRAKE A. | (2001-2430) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-05A0 TO F3450-12A0. | ||||
| (56B-23-24001) | BRAKE ASS'Y | 2001- | ||
| (\2\56B-23-24000) | BRAKE ASS'Y | (2001-2430) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-05A0 TO F3450-08A0. | ||||
| 1 | 07270-41017 | TUBE | 2001- | |
| 2 | 11Y-09-11130 | CLAMP | 2001- | |
| 3 | 07822-00603 | TUBE | 2001- |
