| Item | Part No. | Part Name | Qty | Serial No. |
| (56B-23-20005) | AXLE ASS'Y | 7079- | ||
| (56B-23-20004) | AXLE ASS'Y | 7012-7078 | ||
| (\1\56B-23-20003) | AXLE ASS'Y | 7001-7011 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-01A0 TO F3450-13A0. | ||||
| (56B-23-22003) | FINAL AND BRAKE A. | 7001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-05A0 TO F3450-12A0. | ||||
| (56B-23-24001) | BRAKE ASS'Y | 7001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-05A0 TO F3450-08A0. | ||||

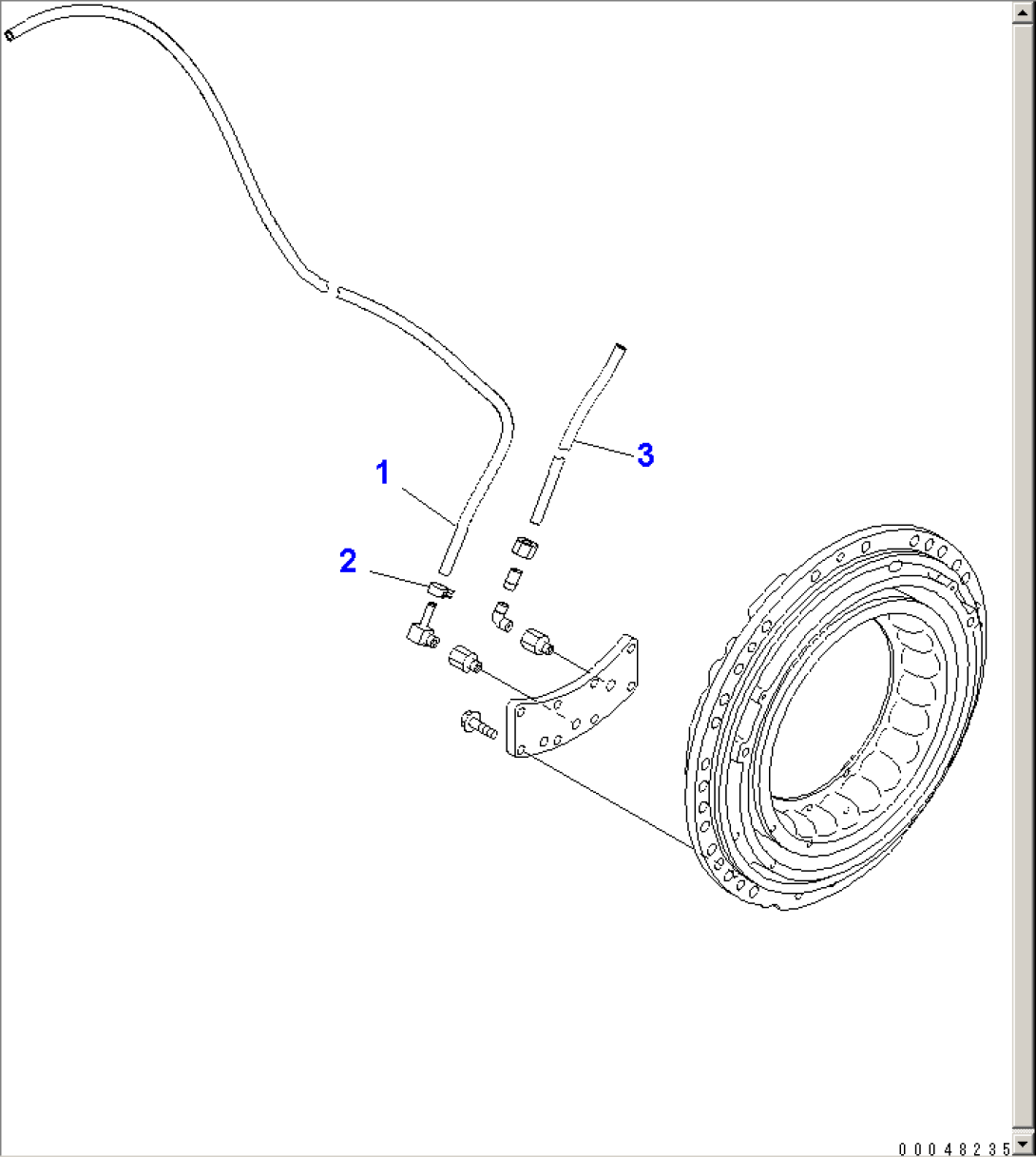

| 1 | 07270-41017 | TUBE | 7001- | |
| 2 | 11Y-09-11130 | CLAMP | 7001- | |
| 3 | 07822-00603 | TUBE | 7001- |
