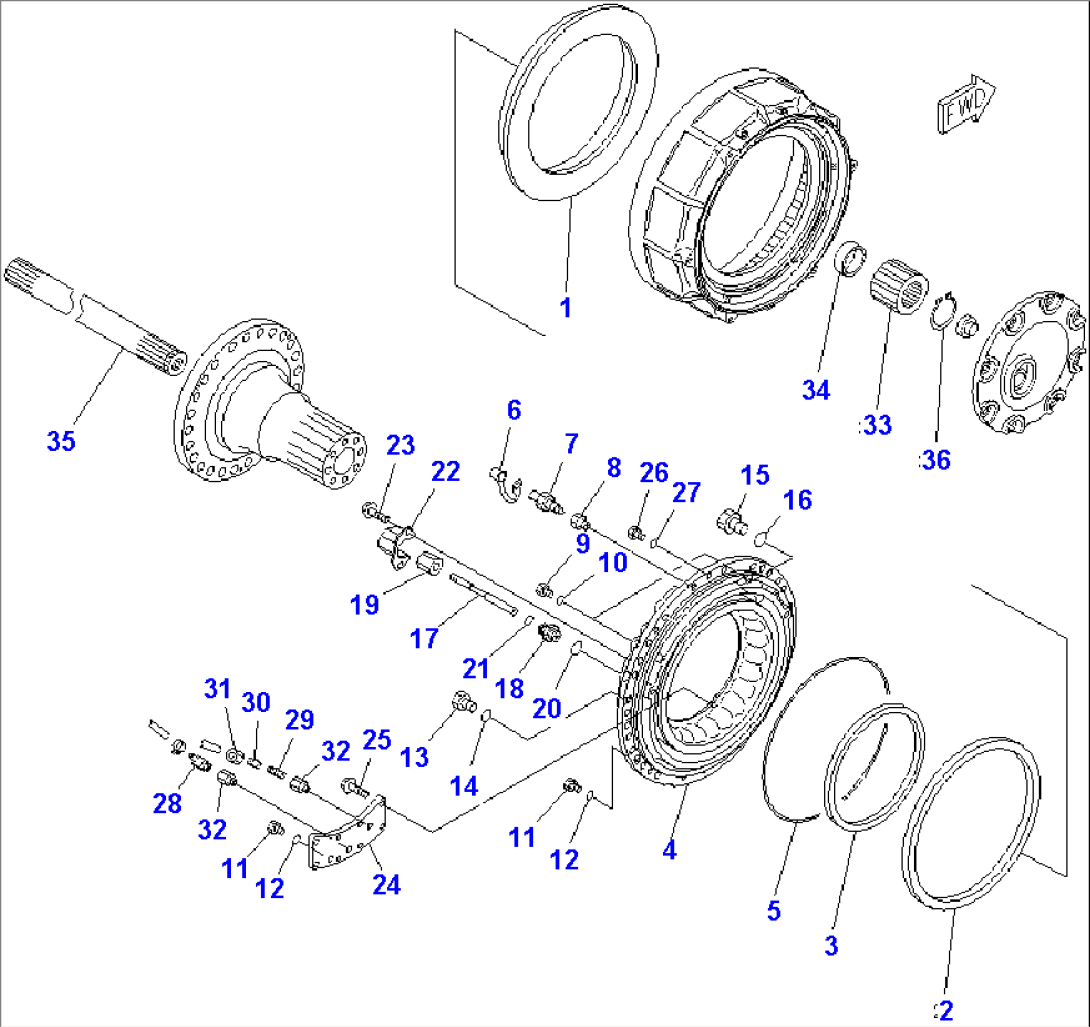

| Item | Part No. | Part Name | Qty | Serial No. |
| (56B-23-20052) | AXLE ASS'Y | 2462- | ||
| (\1\56B-23-20051) | AXLE ASS'Y | 2001-2461 | ||
| (\2\56B-23-20050) | AXLE ASS'Y | (2001-2430) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-01A1 TO F3450-13A1. | ||||
| (56B-23-22051) | FINAL AND BRAKE A. | 2001- | ||
| (\2\56B-23-22050) | FINAL AND BRAKE A. | (2001-2430) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-05A1 TO F3450-12A1. | ||||
| (56B-23-25051) | BRAKE ASS'Y | 2001- | ||
| (\2\56B-23-25050) | BRAKE ASS'Y | (2001-2430) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-09A1 TO F3450-12A1. | ||||
| 1 | 56B-33-11121 | PISTON | 2001- | |
| 2 | 421-33-11440 | SEAL | 2001- | |
| 3 | 56B-33-11430 | SEAL | 2001- | |
| 4 | 56B-33-21130 | CYLINDER | 2071- | |
| 4 | 56B-33-21112 | CYLINDER | 2001-2070 | |
| 5 | 07000-15490 | O-RING | 2001- | |
| 6 | 566-32-11620 | CAP | 2001- | |
| 7 | 566-32-11430 | BLEEDER | 2001- | |
| 8 | 581-32-12140 | PLUG | 2001- | |
| 9 | 07040-11812 | PLUG | 2001-2070 | |
| 10 | 07002-11823 | O-RING | 2001-2070 | |
| 11 | 07040-11409 | PLUG | 2001- | |
| 12 | 07002-11423 | O-RING | 2001- | |
| 13 | 07040-12012 | PLUG | 2001-2070 | |
| 14 | 07002-12034 | O-RING | 2001-2070 | |
| 15 | 07040-12412 | PLUG | 2001-2070 | |
| 16 | 07002-12434 | O-RING | 2001-2070 | |
| 17 | 56B-33-11711 | SHAFT | 2001- | |
| 18 | 569-33-71720 | GUIDE | 2001- | |
| 19 | 569-33-71730 | CAP | 2001- | |
| 20 | 07002-12434 | O-RING | 2001- | |
| 21 | 07000-11005 | O-RING | 2001- | |
| 22 | 56B-33-11750 | COVER | 2001- | |
| 23 | 01435-01020 | BOLT | 2001- | |
| 24 | 56B-33-21910 | COVER | 2001- | |
| 25 | 01435-01030 | BOLT | 2001- | |
| 26 | 07040-11409 | PLUG | 2001- | |
| 27 | 07002-11423 | O-RING | 2001- | |
| 28 | 56D-61-24320 | ELBOW | 2001- | |
| 29 | 07834-00617 | ELBOW | 2001- | |
| 30 | 07831-00612 | SLEEVE | 2001- | |
| 31 | 07832-00614 | NUT | 2001- | |
| 32 | 582-01-12910 | NIPPLE | 2001- | |
| 33 | 56B-22-12420 | GEAR,SUN | 2001- | |
| 34 | 421-22-12350 | SPACER | 2001- | |
| 35 | 56B-22-12450 | SHAFT | 2001- | |
| 36 | 04064-06020 | RING,SNAP | 2001- |
