| Item | Part No. | Part Name | Qty | Serial No. |

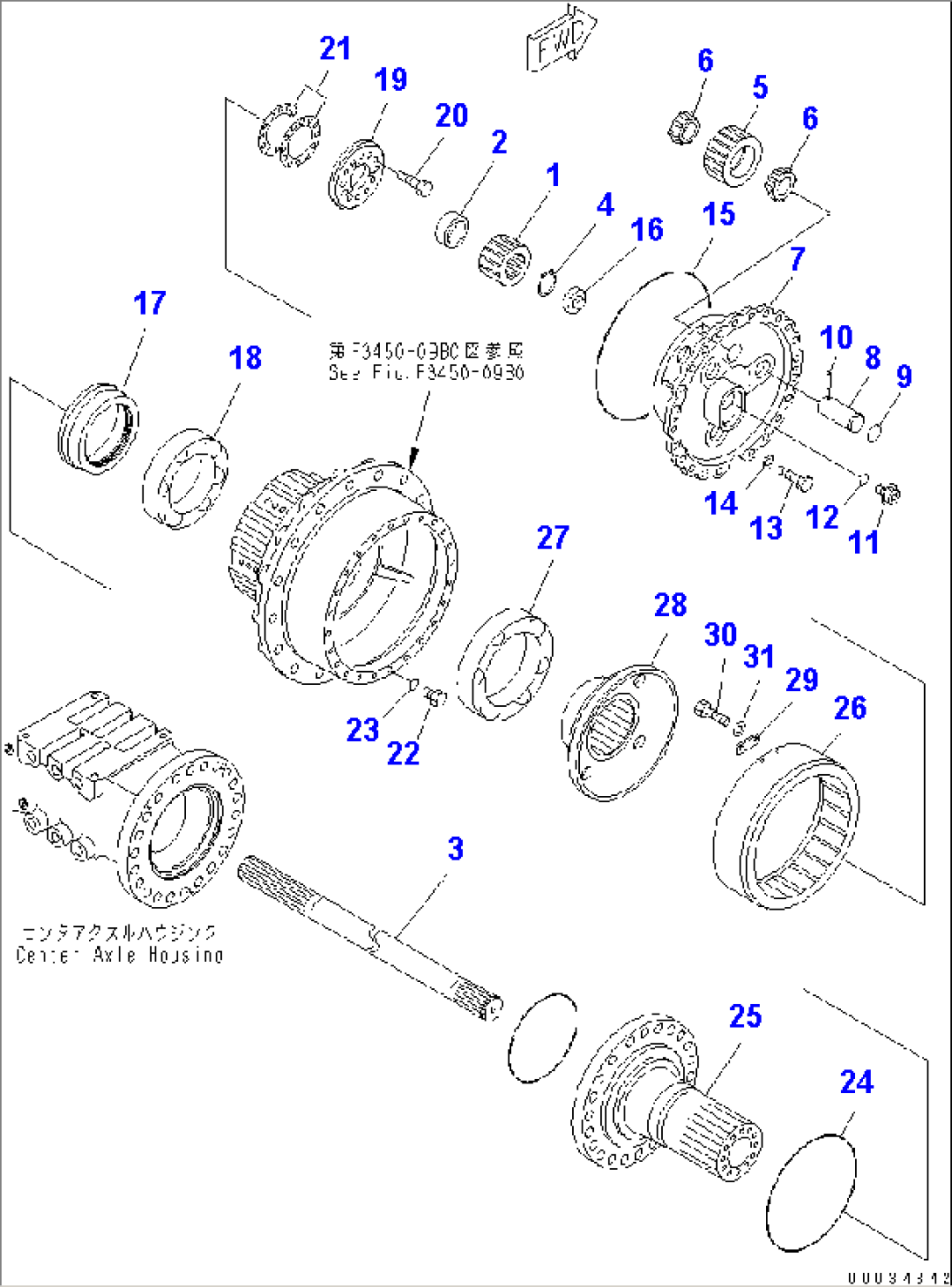

| 56D-23-15051 | FINAL DRIVE ASS'Y,R.H. | 1001- | ||
| (\2\56D-23-15050) | FINAL DRIVE ASS'Y,R.H. | (1001-..) | ||
| 1 | 56D-22-12440 | GEAR,SUN | 1001- | |
| 2 | 56D-22-12430 | SPACER | 1001- | |
| 3 | 56D-22-12412 | SHAFT | 1001- | |
| 4 | 04064-05520 | RING,SNAP | 1001- | |
| 5 | 56D-22-12531 | GEAR,PLANET | 1001- | |
| 6 | 423-22-12811 | BEARING | 1001- | |
| 7 | 56D-22-12611 | CARRIER,FINAL | 1001- | |
| 8 | 56D-22-12511 | SHAFT | 1001- | |
| 9 | 07000-13034 | O-RING | 1001- | |
| 10 | 419-22-12570 | PIN | 1001- | |
| 11 | 07044-13620 | PLUG | 1001- | |
| 12 | 07002-13634 | O-RING | 1001- | |
| 13 | 01010-61440 | BOLT | 1001- | |
| 14 | 01643-31445 | WASHER | 1001- | |
| 15 | 07000-15335 | O-RING | 1001- | |
| 16 | 286-22-12630 | BUTTON | 1001- | |
| 17 | 56D-23-12632 | RETAINER | 1001- | |
| 18 | 56D-22-22340 | BEARING | 1001- | |
| 18 | (\2\23W-22-22340) | BEARING | (1001-.) | |
| 19 | 56D-22-12211 | RETAINER | 1001- | |
| 20 | 01010-61250 | BOLT | 1001- | |
| 21 | 423-22-12260 | SHIM, 0.05MM,T=0.05 | 1001- | |
| 21 | 423-22-12250 | SHIM, 0.2MM,T=0.2 | 1001- | |
| 21 | 423-22-12240 | SHIM, 0.3MM,T=0.3 | 1001- | |
| 21 | 423-22-12230 | SHIM, 1.0MM,T=1.0 | 1001- | |
| 22 | 07040-11409 | PLUG | 1001- | |
| 23 | 07002-11423 | O-RING | 1001- | |
| 24 | 07000-15260 | O-RING | 1001- | |
| 25 | 56D-22-13212 | TUBE | 1001- | |
| 26 | 56D-22-12542 | GEAR,GEAR | 1033- | |
| 26 | 56D-22-12541 | GEAR,GEAR | 1001-1032 | |
| 27 | 56D-22-22350 | BEARING | 1001- | |
| 27 | (\2\23W-22-22350) | BEARING | (1001-.) | |
| 28 | 56D-22-12340 | HUB | 1001- | |
| 29 | 423-22-12561 | PLATE | 1001- | |
| 30 | 01010-60820 | BOLT | 1001- | |
| 31 | 01643-30823 | WASHER | 1001- |
