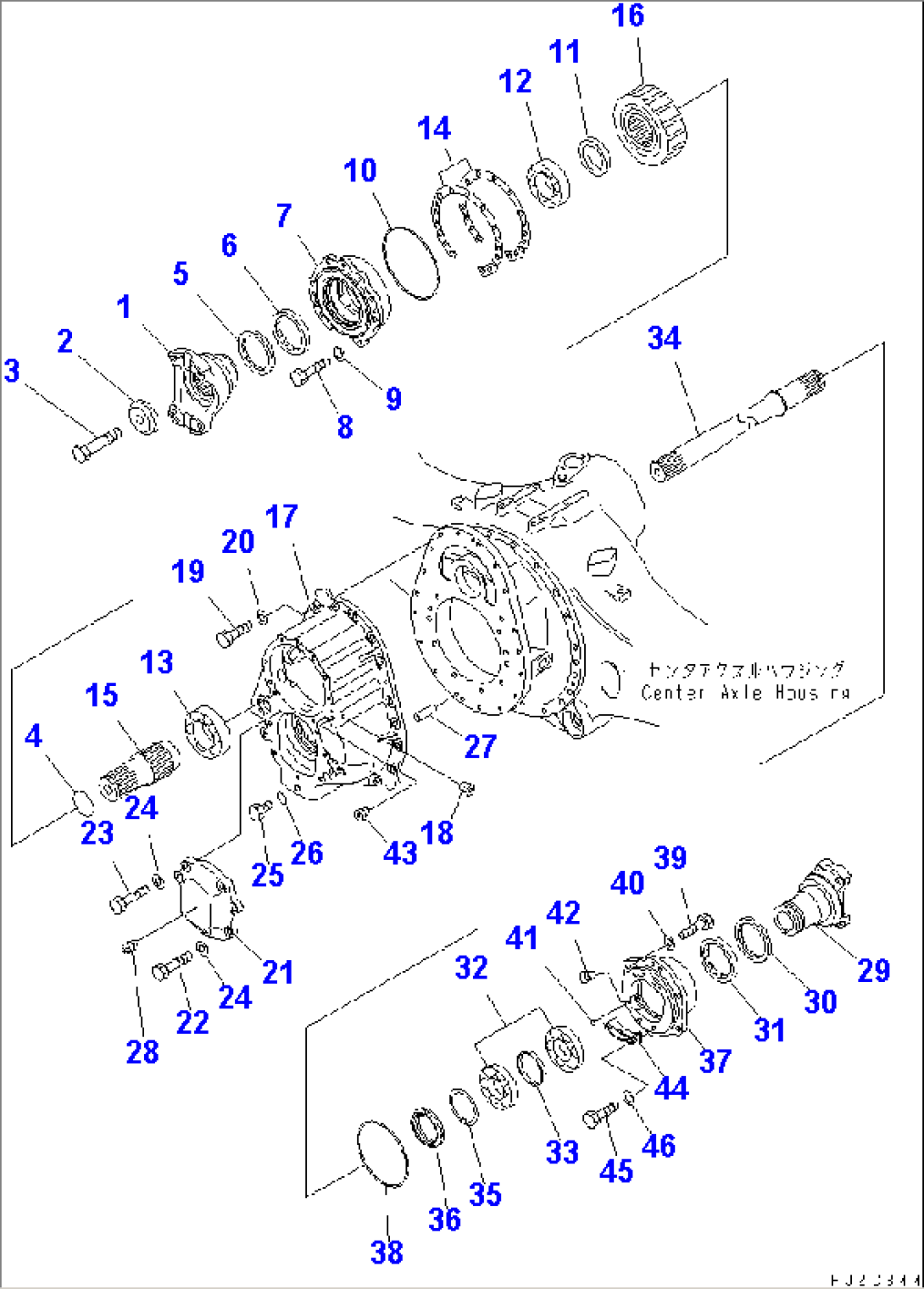

CENTER AXLE (TRANSFER)

Item	Part No.	Part Name	Qty	Serial No.
	(56C-23-10002)	CENTER AXLE ASS'Y		1001-
	(56C-23-10050)	CENTER AXLE ASS'Y,(LIMITED SLIP DIFF.)		1001-
	(56C-23-11001)	DIFFERENTIAL ASS'Y		1001-
	(56C-23-11050)	DIFFERENTIAL ASS'Y		1001-
		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-01A0 TO F3450-04A0.
1	56B-23-16411	COUPLING		1001-
2	425-22-11240	HOLDER		1001-
3	01051-62420	BOLT		1001-
4	07000-15060	O-RING		1001-
5	56B-23-11760	SEAL,SIDE		1001-
6	07012-50095	SEAL,OIL		1001-
7	56B-23-16652	CAGE		1001-
8	01010-61240	BOLT		1001-
9	01643-31232	WASHER		1001-
10	07000-15190	O-RING		1001-
11	56B-23-16830	SPACER		1001-
12	56B-23-16430	BEARING		1001-
13	425-20-15720	BEARING		1001-
14	56B-23-16461	SHIMÂ¤ 0.15MM		1001-
	56B-23-16471	SHIMÂ¤ 0.2MM		1001-
	56B-23-16481	SHIMÂ¤ 0.3MM		1001-
	56B-23-16491	SHIMÂ¤ 0.8MM		1001-
15	56B-23-16540	SHAFT		1001-
16	56B-23-16611	GEAR,DRIVE		1001-
17	56B-23-16632	CASE		1001-
18	07043-70211	PLUG		1001-
19	01010-61240	BOLT		1001-
20	01643-31232	WASHER		1001-
21	56B-23-16871	COVER		1001-
22	01010-61250	BOLT		1001-
23	01010-61240	BOLT		1001-
24	01643-31232	WASHER		1001-
25	07040-11409	PLUG		1001-
26	07002-11423	O-RING		1001-
27	04020-01228	PIN,DOWEL		1001-
28	07042-70108	PLUG		1001-
29	56C-23-16411	COUPLING ASS'Y		1001-
	\6\	COUPLING		1001-
	\6\	COVER		1001-
30	56B-23-11760	SEAL,SIDE		1001-
31	07012-50095	SEAL		1001-
32	56C-23-16430	BEARING		1001-
33	56C-23-16441	SPACER		1001-
34	56C-23-16461	SHAFT,OUTPUT		1001-
35	56C-23-16470	HOLDER		1001-
36	56C-23-16450	NUT		1001-
37	56C-23-16680	CAGE		1001-
38	07000-15170	O-RING		1001-
39	01010-61235	BOLT		1001-
40	01643-31232	WASHER		1001-
41	07000-12012	O-RING		1001-
42	07043-70108	PLUG		1001-
43	07043-70312	PLUG		1001-
44	56C-23-16910	COVER		1001-
45	01010-61025	BOLT		1001-
46	01643-51032	WASHER		1001-
