| Item | Part No. | Part Name | Qty | Serial No. |
| (56B-23-20005) | AXLE ASS'Y | 7079- | ||
| (56B-23-20004) | AXLE ASS'Y | 7012-7078 | ||
| (\1\56B-23-20003) | AXLE ASS'Y | 7001-7011 | ||

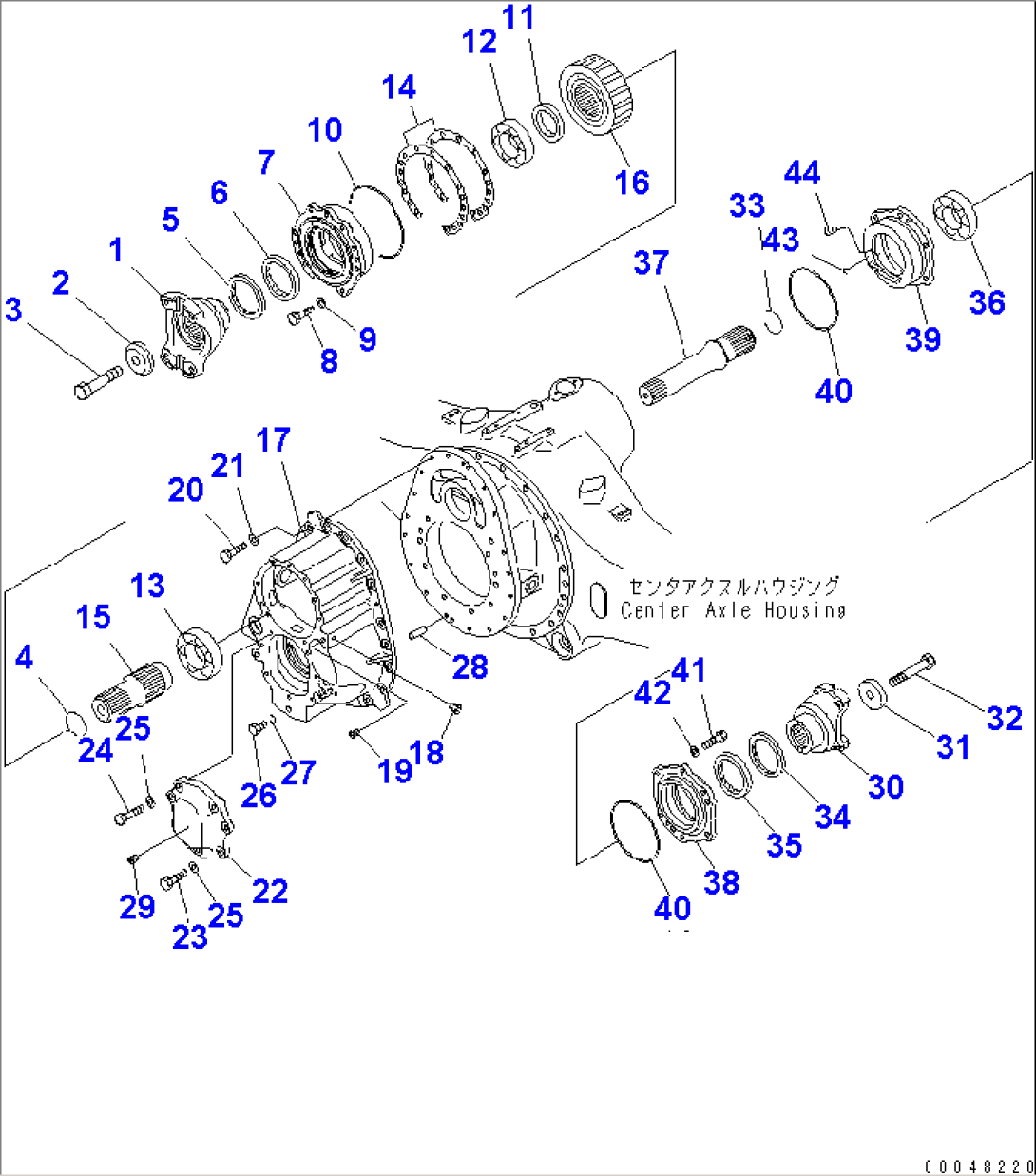

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-01A0 TO F3450-13A0. | ||||
| (56B-23-11004) | DIFFERENTIAL ASS'Y | 7079- | ||
| (56B-23-11003) | DIFFERENTIAL ASS'Y | 7001-7078 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-01A0 TO F3450-04A0. | ||||
| 1 | 56B-23-16411 | COUPLING | 7001- | |
| 2 | 425-22-11240 | HOLDER | 7001- | |
| 3 | 01051-62420 | BOLT | 7001- | |
| 4 | 07000-15060 | O-RING | 7001- | |
| 5 | 56B-23-11760 | SEAL | 7001- | |
| 6 | 07012-50095 | SEAL | 7001- | |
| 7 | 56B-23-16652 | CAGE | 7001- | |
| 8 | 01010-61240 | BOLT | 7001- | |
| 9 | 01643-31232 | WASHER | 7001- | |
| 10 | 07000-15190 | O-RING | 7001- | |
| 11 | 56B-23-16830 | SPACER | 7001- | |
| 12 | 56B-23-16430 | BEARING | 7001- | |
| 13 | 425-20-15720 | BEARING | 7001- | |
| 14 | 56B-23-16461 | SHIM, 0.15MM | 7001- | |
| 14 | 56B-23-16471 | SHIM, 0.2MM | 7001- | |
| 14 | 56B-23-16481 | SHIM, 0.3MM | 7001- | |
| 14 | 56B-23-16491 | SHIM, 0.8MM | 7001- | |
| 15 | 56B-23-16540 | SHAFT | 7001- | |
| 16 | 56B-23-16611 | GEAR | 7001- | |
| 17 | 56B-23-16633 | CASE | 7001- | |
| 17 | 56B-23-16632 | CASE | 7001- | |
| 18 | 07043-70211 | PLUG | 7001- | |
| 19 | 07043-70312 | PLUG | 7001- | |
| 20 | 01010-61240 | BOLT | 7001- | |
| 21 | 01643-31232 | WASHER | 7001- | |
| 22 | 56B-23-16871 | COVER | 7001- | |
| 23 | 01010-61250 | BOLT | 7001- | |
| 24 | 01010-61240 | BOLT | 7001- | |
| 25 | 01643-31232 | WASHER | 7001- | |
| 26 | 07040-11409 | PLUG | 7001- | |
| 27 | 07002-11423 | O-RING | 7001- | |
| 28 | 04020-01228 | PIN | 7001- | |
| 29 | 07042-70108 | PLUG | 7001- | |
| 30 | 56B-23-16421 | COUPLING | 7001- | |
| 31 | 423-22-21240 | WASHER | 7001- | |
| 32 | 01011-62020 | BOLT | 7001- | |
| 33 | 07000-15055 | O-RING | 7001- | |
| 34 | 56B-23-11760 | SEAL | 7001- | |
| 35 | 07012-50095 | SEAL | 7001- | |
| 36 | 06340-06313 | BEARING | 7001- | |
| 37 | 56B-23-16570 | SHAFT | 7001- | |
| 38 | 56B-23-16691 | COVER | 7001- | |
| 39 | 56B-23-16680 | CAGE | 7001- | |
| 40 | 07000-15170 | O-RING | 7001- | |
| 41 | 01010-61250 | BOLT | 7001- | |
| 42 | 01643-31232 | WASHER | 7001- | |
| 43 | 07000-12012 | O-RING | 7001- | |
| 44 | 07043-70108 | PLUG | 7001- |
