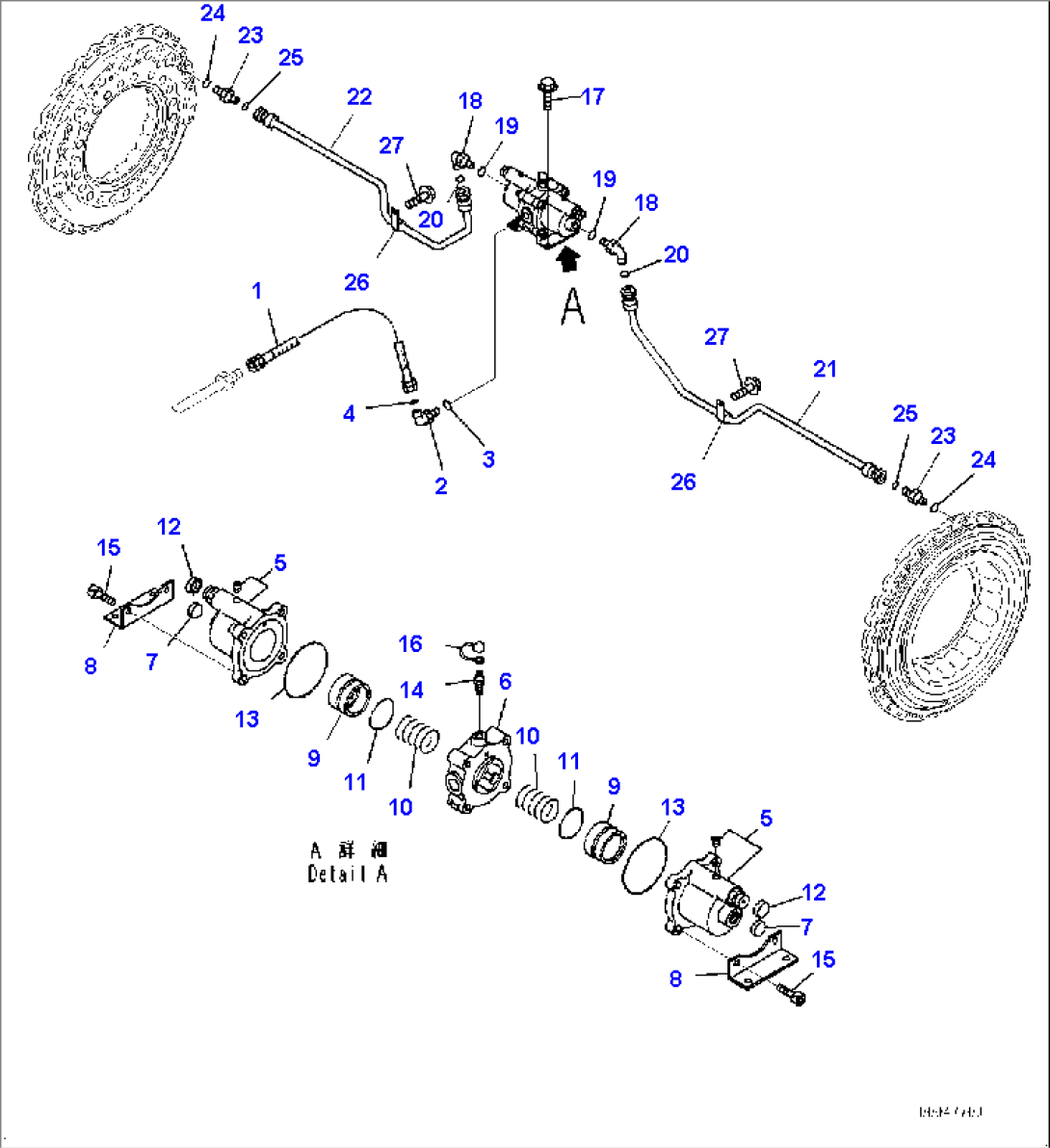

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02765-00406 | Hose, Face Seal Type | 2785- | |
| 2 | 02782-10422 | Elbow | 2785- | |
| 3 | 07002-22034 | O-ring | 2785- | |
| 4 | 02896-21012 | O-ring | 2785- | |
| 4 | 56D-43-17201 | Slack Adjuster | 2785- | |
| 5 | Cylinder Assembly | 2785- | ||
| 5 | 424-35-15280 | O-ring | 2785- | |
| 5 | 566-35-43720 | Spring | 2785- | |
| 6 | Body | 2785- | ||
| 7 | Cap | 2785- | ||
| 8 | Bracket | 2785- | ||
| 9 | 56D-43-17220 | Piston | 2785- | |
| 10 | 424-35-15230 | Spring | 2785- | |
| 11 | 424-35-15240 | O-ring | 2785- | |
| 12 | 424-35-15250 | Cover | 2785- | |
| 13 | 424-35-15260 | O-ring | 2785- | |
| 14 | 424-35-15270 | Valve | 2785- | |
| 15 | 426-35-27230 | Bolt | 2785- | |
| 16 | 426-35-27250 | Cap | 2785- | |
| 17 | 01435-01020 | Bolt | 2785- | |
| 18 | 02782-10422 | Elbow | 2785- | |
| 19 | 07002-22034 | O-ring | 2785- | |
| 20 | 02896-21012 | O-ring | 2785- | |
| 21 | 56D-43-17811 | Tube | 2785- | |
| 22 | 56D-43-17821 | Tube | 2785- | |
| 23 | 02781-00422 | Union | 2785- | |
| 24 | 07002-22034 | O-ring | 2785- | |
| 25 | 02896-21012 | O-ring | 2785- | |
| 26 | 04434-51510 | Clip | 2785- | |
| 27 | 01435-01016 | Bolt | 2785- |
