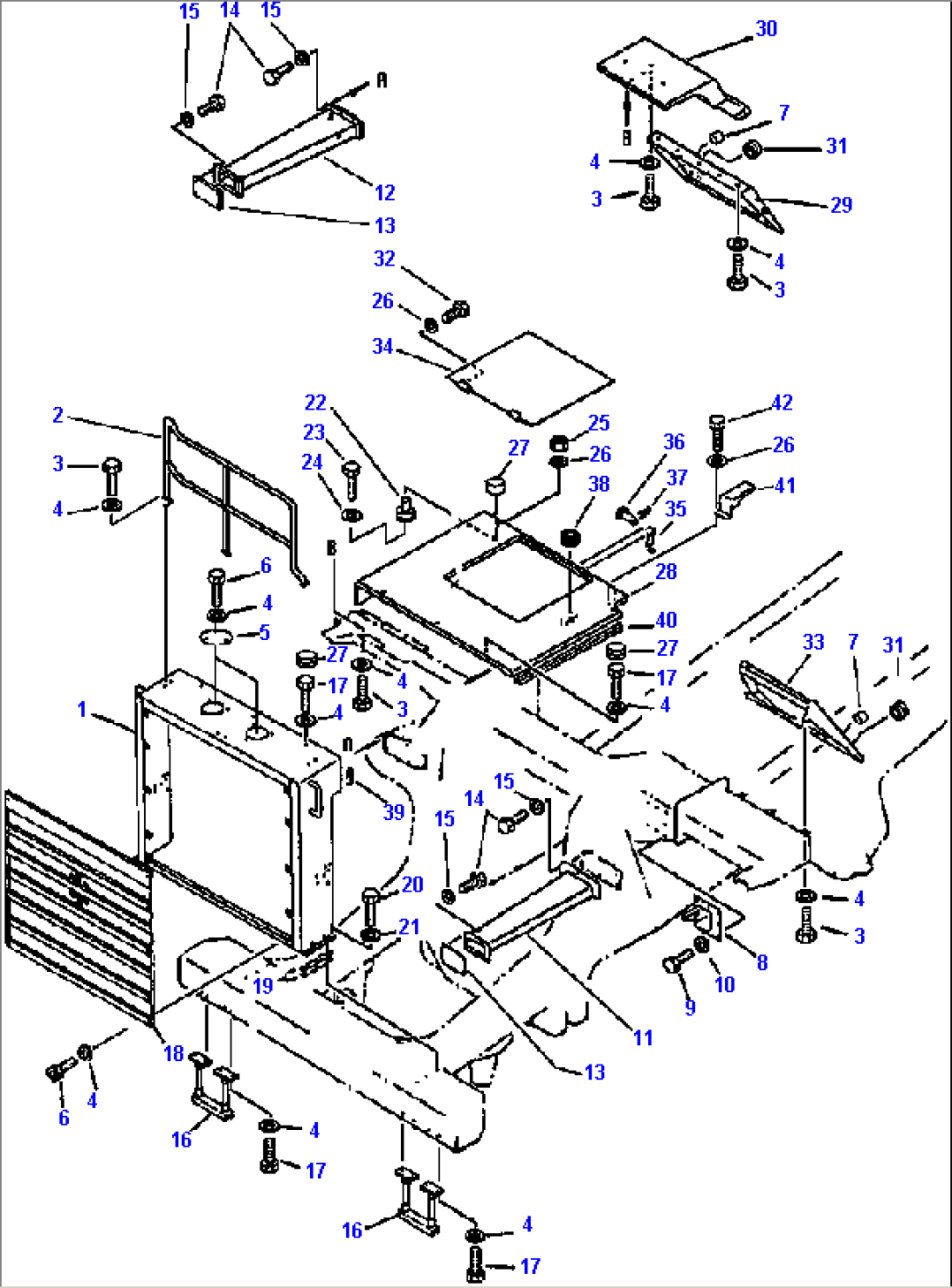

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EK1384 | GUARD | ||
| 2 | 561-54-61761 | GUARD | ||
| 3 | 01010-81230 | CAPSCREW | ||
| 4 | 01643-31232 | FLAT WASHER | ||
| 5 | 561-54-61150 | COVER | ||
| 6 | 01010-81225 | CAPSCREW | ||
| 7 | SL8936 | GROMMET, RUBBER | ||
| 8 | 561-54-61390 | BRACKET | ||
| 9 | 01010-81460 | CAPSCREW | ||
| 10 | 01643-31445 | FLAT WASHER | ||
| 11 | 561-54-A1653 | STAY (1) | ||
| 11 | 561-54-A1654 | STAY (2) | ||
| 12 | 561-54-71960 | STAY | ||
| 13 | 561-54-61970 | SHIM - 1.0MM | ||
| 14 | 01010-82050 | CAPSCREW | ||
| 15 | 01643-32060 | WASHER | ||
| 16 | 561-54-31690 | STEP | ||
| 17 | 01010-81235 | CAPSCREW | ||
| 18 | 561-54-61122 | GRILLE | ||
| 19 | 561-54-61140 | SHIM | ||
| 20 | 01010-81645 | CAPSCREW | ||
| 21 | 01643-31645 | WASHER | ||
| 22 | 565-03-11270 | CUSHION | ||
| 23 | 01010-80820 | CAPSCREW | ||
| 24 | 01643-30823 | FLAT WASHER | ||
| 25 | 01580-11008 | NUT | ||
| 26 | 01643-31032 | FLAT WASHER | ||
| 27 | 09415-03614 | CAP | ||
| 28 | 561-54-71210 | HOOD | ||
| 29 | 561-54-67170 | FENDER | ||
| 30 | 561-84-62240 | COVER | ||
| 31 | 09415-05016 | CAP | ||
| 32 | 01010-81020 | CAPSCREW | ||
| 33 | 561-54-61512 | FENDER | ||
| 34 | 561-54-61221 | COVER | ||
| 35 | 09450-00000 | CATCHER | ||
| 36 | 09450-00002 | PIN | ||
| 37 | 04050-11610 | PIN, COTTER | ||
| 38 | 391-40-13240 | GROMMET | ||
| 39 | 561-54-61290 | SEAL | ||
| 40 | 561-54-61270 | SEAL | ||
| 41 | 561-06-63630 | COVER | ||
| 42 | 01010-81016 | CAPSCREW | ||
| NS|44 | NOTE: (1) EFFECTIVE THRU A10301. | |||
| NS|45 | (2) EFFECTIVE WITH A10302. |
