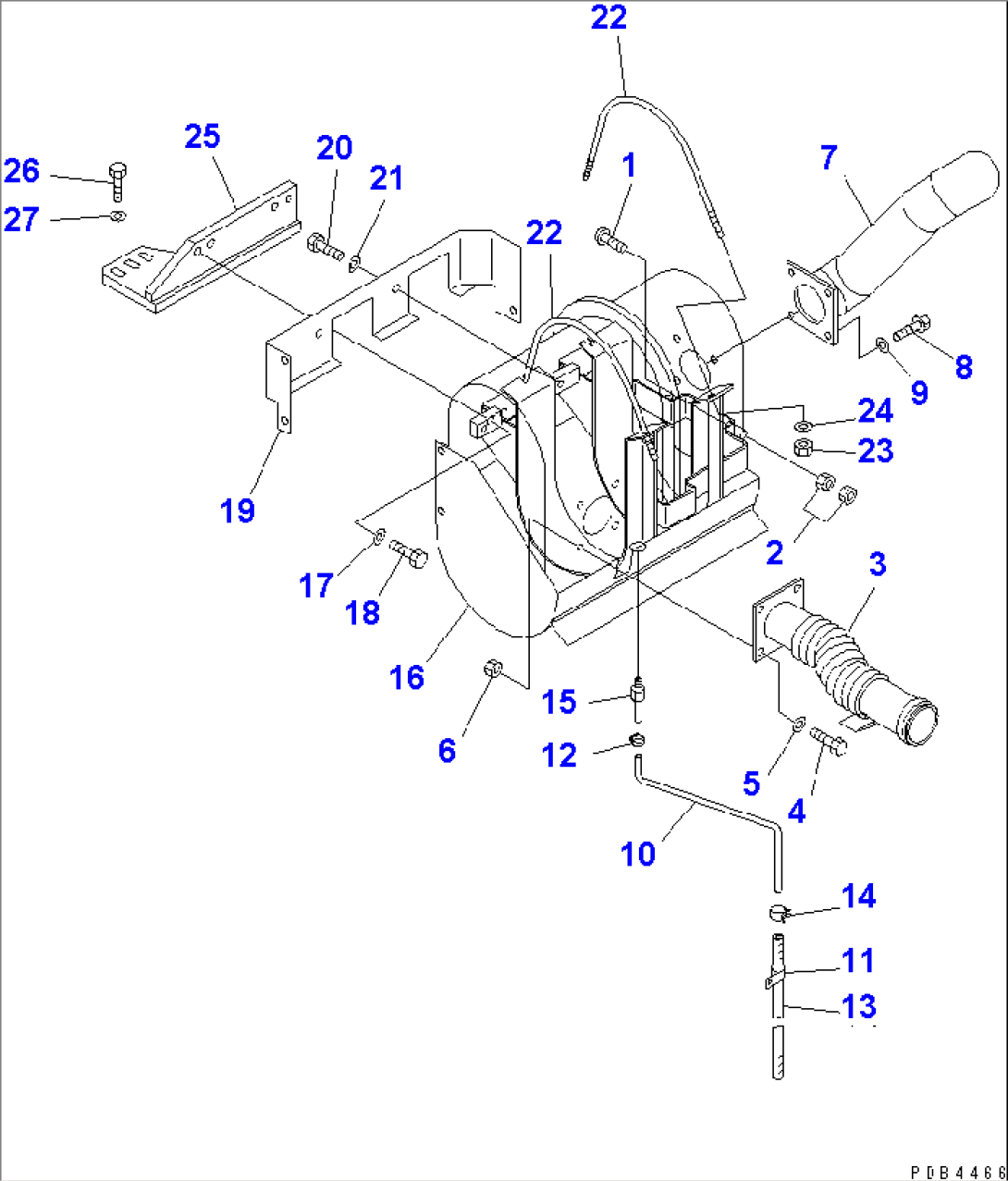

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01220-40540 | SCREW | 10001-@ | |
| 2 | 01580-10504 | NUT | 10001-@ | |
| 3 | 22U-01-12121 | PIPE | 10001-10021 | |
| 4 | 01010-81240 | BOLT | 10001-@ | |
| 5 | 01643-31232 | WASHER | 10001-@ | |
| 6 | 01580-11210 | NUT | 10001-@ | |
| 7 | 22U-01-12111 | PIPE | 10001-10021 | |
| 8 | 01010-81225 | BOLT | 10001-@ | |
| 9 | 01643-31232 | WASHER | 10001-@ | |
| 10 | 22U-01-12131 | TUBE | 10001-@ | |
| 11 | 08036-21214 | CLIP | 10001-10021 | |
| 12 | 07281-00137 | CLAMP | 10001-@ | |
| 13 | 07260-20956 | HOSE | 10001-@ | |
| 14 | 07285-00155 | CLIP | 10001-@ | |
| 15 | 6124-11-6151 | NIPPLE | 10001-@ | |
| 16 | 22U-01-12150 | BRACKET | 10001-10021 | |
| 17 | 01010-81240 | BOLT | 10001-@ | |
| 18 | 01643-31232 | WASHER | 10001-@ | |
| 19 | 22U-01-12160 | COVER | 10001-@ | |
| 20 | 01010-81220 | BOLT | 10001-@ | |
| 21 | 01643-31232 | WASHER | 10001-@ | |
| 22 | 20Y-01-21510 | U-BOLT | 10001-@ | |
| 23 | 01580-11008 | NUT | 10001-@ | |
| 24 | 01643-31032 | WASHER | 10001-@ | |
| 25 | 22U-62-13441 | BRACKET | 10001-10021 | |
| 26 | 01010-81245 | BOLT | 10001-@ | |
| 27 | 01643-31232 | WASHER | 10001-@ |
