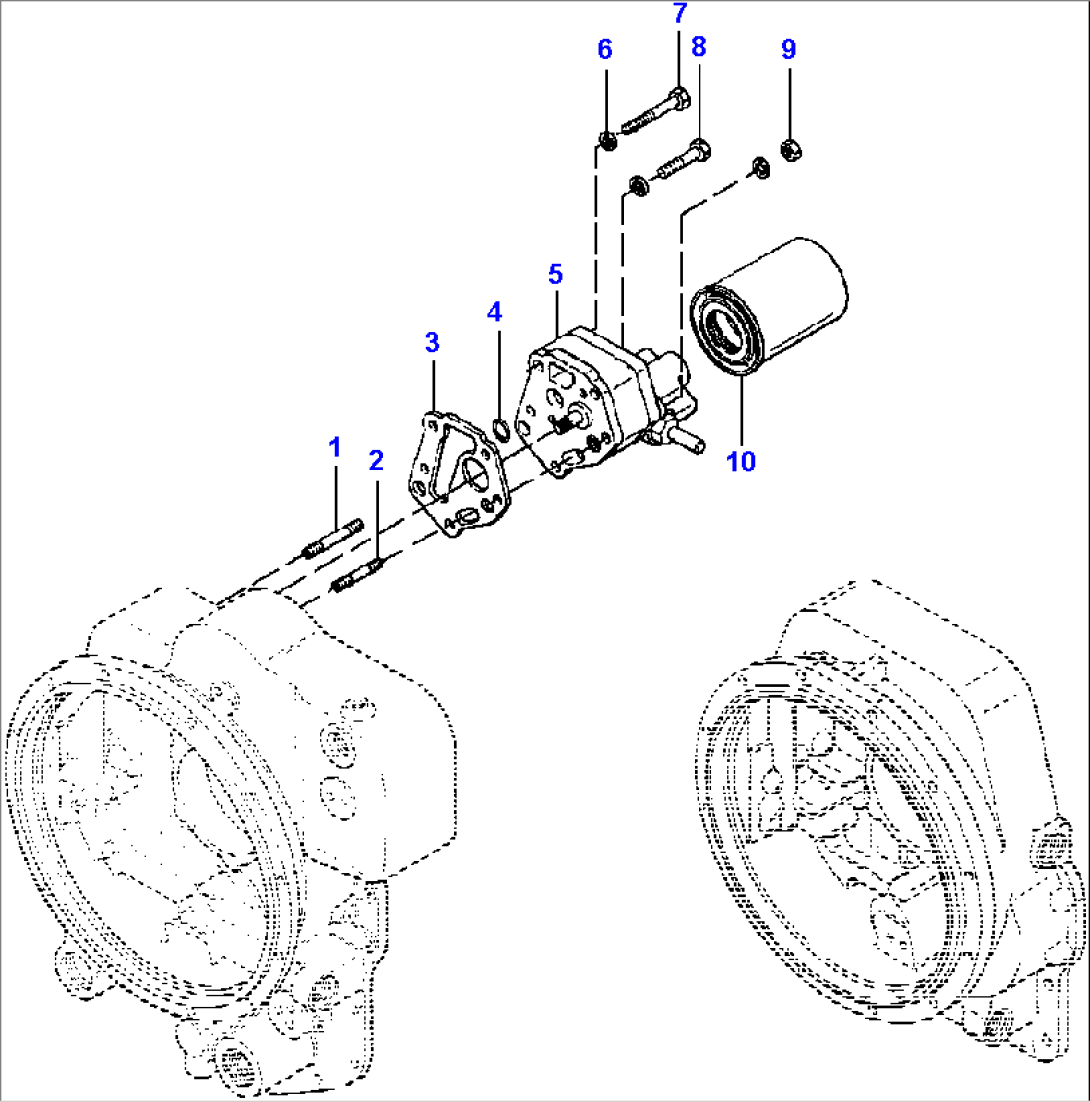

| Item | Part No. | Part Name | Qty | Serial No. |
| (1250 858 H91) | TRANSMISSION | |||
| 1228 932 H91 | PUMP & FILTER, CHARGE | |||
| 1 | 152 508 H45 | STUD, PUMP MOUNTING | ||
| 2 | 152 509 | STUD, PUMP MOUNTING | ||
| 3 | 1213 600 C1 | GASKET | ||
| 4 | 1152 667 C1 | O-RING | ||
| 5 | 152 491 | PUMP ASSEMBLY, CHARGE | ||
| 1262 953 H91 | KIT, SHIM & GASKET | |||
| 6 | 33 385 | WASHER, LOCK | ||
| 7 | 70 187 | BOLT | ||
| 8 | 91 475 | BOLT | ||
| 9 | 122 735 | NUT, HEX | ||
| 10 | 152 492 | FILTER ASSEMBLY |
