| Item | Part No. | Part Name | Qty | Serial No. |
| 702-13-43900 | VALVE ASS'Y | 10001- | ||
| 1 | 702-13-42910 | BODY | 10001- | |
| 2 | 702-13-42920 | POPPET | 10001- | |
| 3 | 702-13-42940 | SPRING | 10001- | |
| 4 | 702-13-42930 | PLATE | 10001- | |
| 5 | 07000-F2055 | O-RING | 10001- | |
| 6 | 01252-30612 | BOLT | 10001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa800 1 s/n 10001 up
- Steering and control system
- Check valve (for emergency steering)
Поиск по каталогу

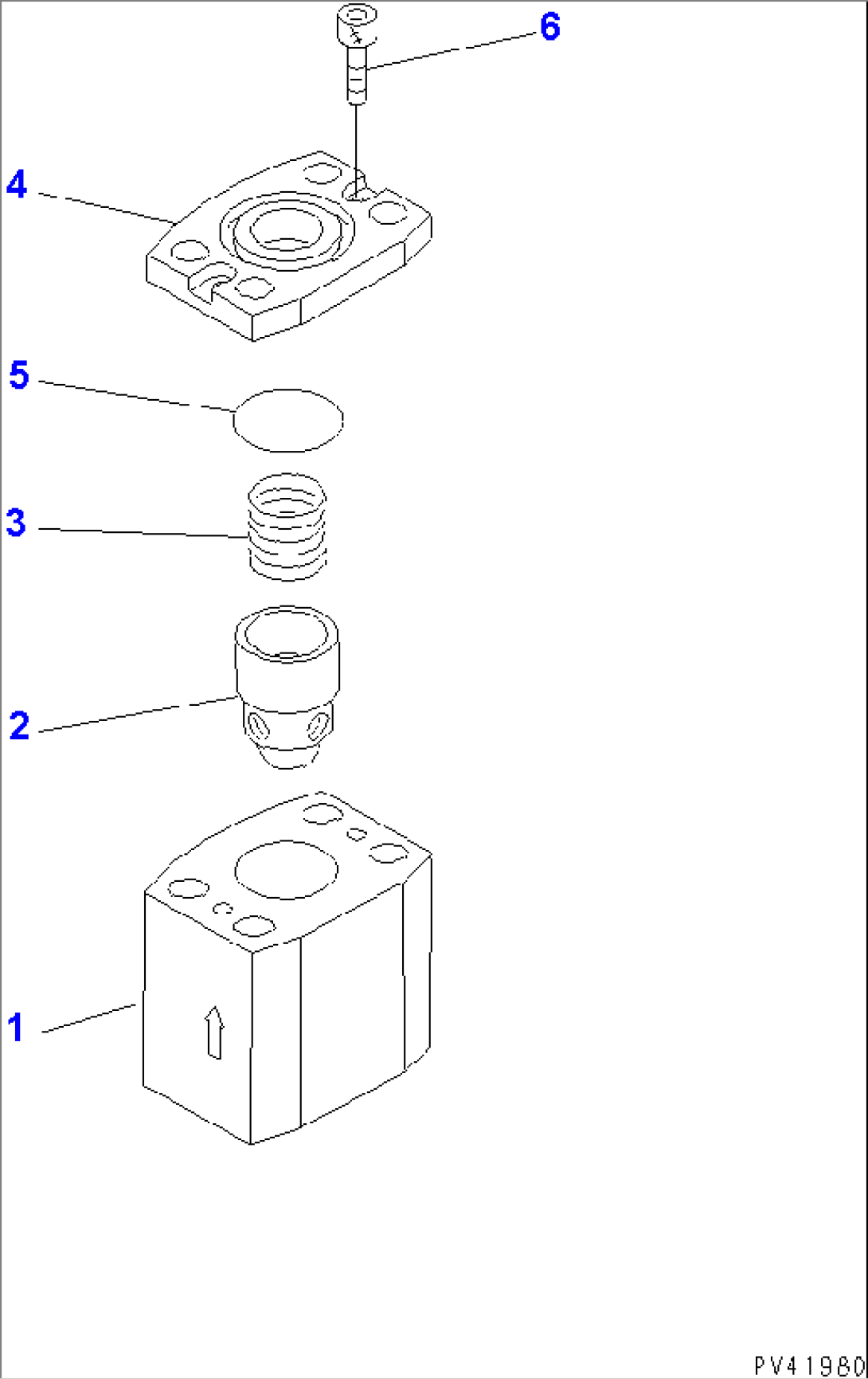

CHECK VALVE (FOR EMERGENCY STEERING)
