| Item | Part No. | Part Name | Qty | Serial No. |
| 702-13-24400 | VALVE ASS'Y,CHECK | 11001- | ||
| 1 | 702-13-22911 | BODY | 11001- | |
| 2 | 702-13-22931 | PLATE | 11001- | |
| 3 | 702-13-22921 | POPPET | 11001- | |
| 4 | 702-13-22940 | SPRING | 11001- | |
| 5 | 07000-F3035 | O-RING | 11001- | |
| 6 | 01252-60612 | BOLT | 11001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd405 7r s/n 11001 11033 (w/o egr)
- Service kit and component parts
- Check valve(#11001 )
Поиск по каталогу

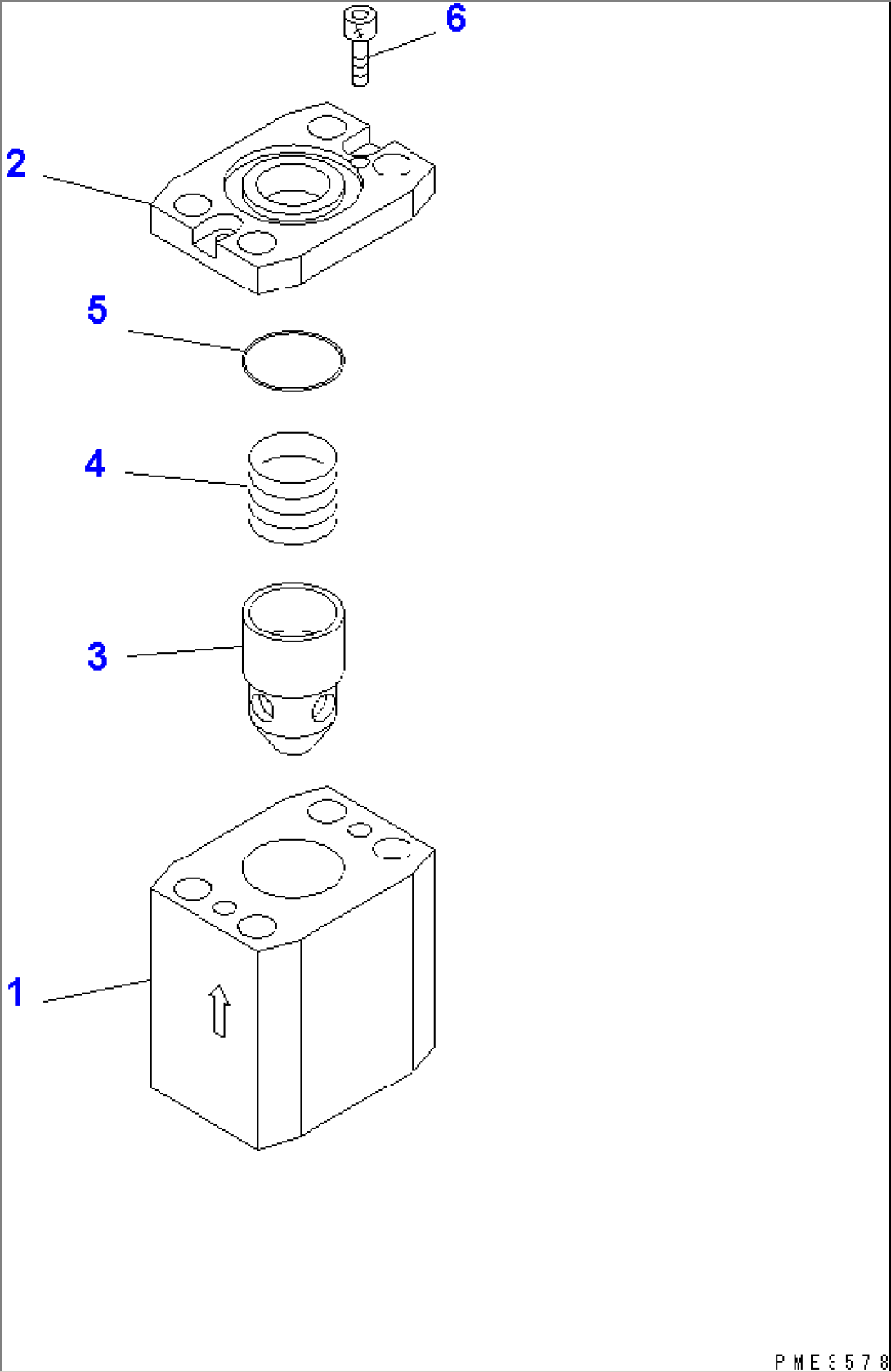

CHECK VALVE(#11001-)
