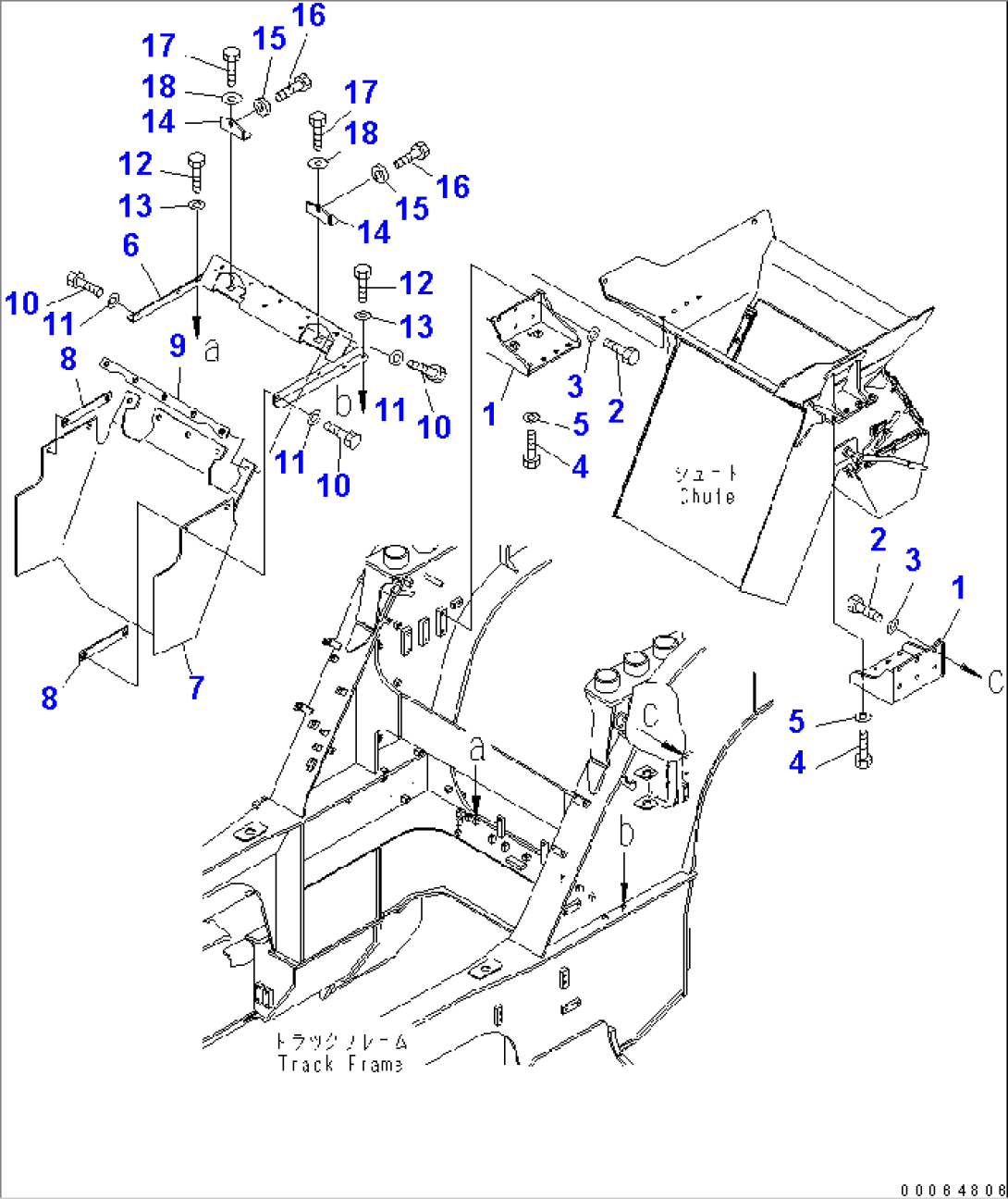

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8234-70-4141 | BRACKET | 1001- | |
| 2 | 01010-81640 | BOLT | 1001- | |
| 3 | 01643-31645 | WASHER | 1001- | |
| 4 | 01010-81645 | BOLT | 1001- | |
| 5 | 01643-31645 | WASHER | 1001- | |
| 6 | 8234-70-4181 | BRACKET | 1001- | |
| 7 | 8234-70-4261 | PLATE | 1001- | |
| 8 | 8234-70-4210 | PLATE | 1001- | |
| 9 | 8234-70-4191 | PLATE | 1001- | |
| 10 | 01010-81230 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 01010-81225 | BOLT | 1001- | |
| 13 | 01643-31232 | WASHER | 1001- | |
| 14 | 8234-70-4321 | BRACKET | 1002- | |
| 14 | 8234-70-4320 | BRACKET | 1001-1001 | |
| 15 | 15R-70-16370 | WASHER | 1001- | |
| 16 | 01010-82055 | BOLT | 1001- | |
| 17 | 01010-81230 | BOLT | 1001- | |
| 18 | 175-54-34170 | WASHER | 1001- |
