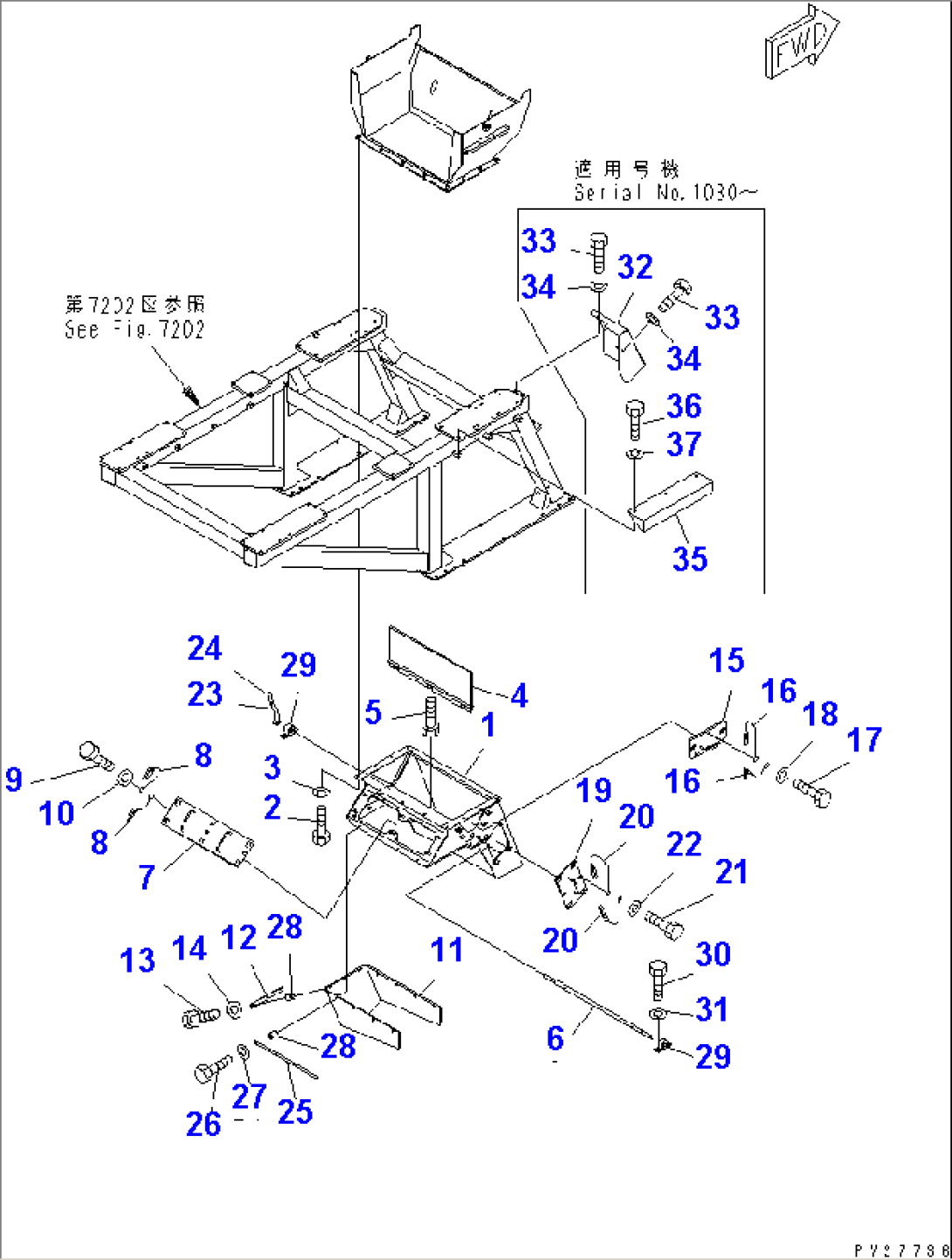

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8242-70-2232 | CHUTE | 1301-@ | |
| \0\8242-70-2231 | CHUTE | .-1300 | ||
| \0\8242-70-2230 | CHUTE | 1005-. | ||
| 2 | 01010-81230 | BOLT | 1005-@ | |
| 3 | 01643-31232 | WASHER | 1005-@ | |
| 4 | 8242-70-2240 | PLATE | 1005-@ | |
| 5 | 01010-81025 | BOLT | 1005-@ | |
| 6 | 8242-70-2290 | SHAFT | 1005-@ | |
| 7 | 8242-70-2260 | COVER | 1005-@ | |
| 8 | 8248-70-1820 | ROPE,WIRE | 1005-1500 | |
| 9 | 01010-80816 | BOLT | 1005-@ | |
| 10 | 560-27-16530 | WASHER | 1005-@ | |
| 11 | 8242-70-2272 | PLATE | 1320-@ | |
| \0\8242-70-2270 | PLATE | 1005-. | ||
| 12 | 8242-70-2350 | PLATE | 1005-@ | |
| 13 | 01010-81030 | BOLT | 1005-@ | |
| 14 | 01643-31032 | WASHER | 1005-@ | |
| 15 | 8242-70-2251 | COVER | 1301-@ | |
| \0\8242-70-2250 | COVER | 1005-1300 | ||
| 16 | 8248-70-1820 | ROPE,WIRE | 1005-1500 | |
| 17 | 01010-80816 | BOLT | 1005-@ | |
| 18 | 560-27-16530 | WASHER | 1005-@ | |
| 19 | 8221-70-2440 | COVER | 1005-@ | |
| 20 | 8248-70-1820 | ROPE | 1005-@ | |
| 21 | 01010-80816 | BOLT | 1005-@ | |
| 22 | 560-27-16530 | WASHER | 1005-@ | |
| 23 | 8221-70-2470 | LEVER | 1005-1500 | |
| 24 | 09305-01400 | KNOB | 1005-@ | |
| 25 | 8242-70-2280 | PLATE | 1005-@ | |
| 26 | 01010-81030 | BOLT | 1005-1500 | |
| 27 | 01643-31032 | WASHER | 1005-1500 | |
| 28 | 567-54-11610 | SPACER | 1005-@ | |
| 29 | 8221-70-2480 | BEARING | 1005-@ | |
| 30 | 01010-81035 | BOLT | 1005-@ | |
| 31 | 01643-31032 | WASHER | 1005-@ | |
| 32 | 8242-54-2731 | COVER | 1083-1500 | |
| 8242-54-2730 | COVER | 1030-1082 | ||
| 33 | 01010-81220 | BOLT | 1030-1500 | |
| 34 | 01643-31232 | WASHER | 1030-1500 | |
| 35 | 8242-54-2790 | COVER | 1030-1500 | |
| 36 | 01010-81220 | BOLT | 1030-1500 | |
| 37 | 01643-31232 | WASHER | 1030-1500 |
