| Item | Part No. | Part Name | Qty | Serial No. |
| (381-897000-2) | BUCKET ASS'Y | (031)- | ||
| (380-889667-1) | BUCKET ASS'Y | (019)-(030) | ||
| \0\380-219730-1 | BUCKET ASS'Y | (001)-(018) | ||

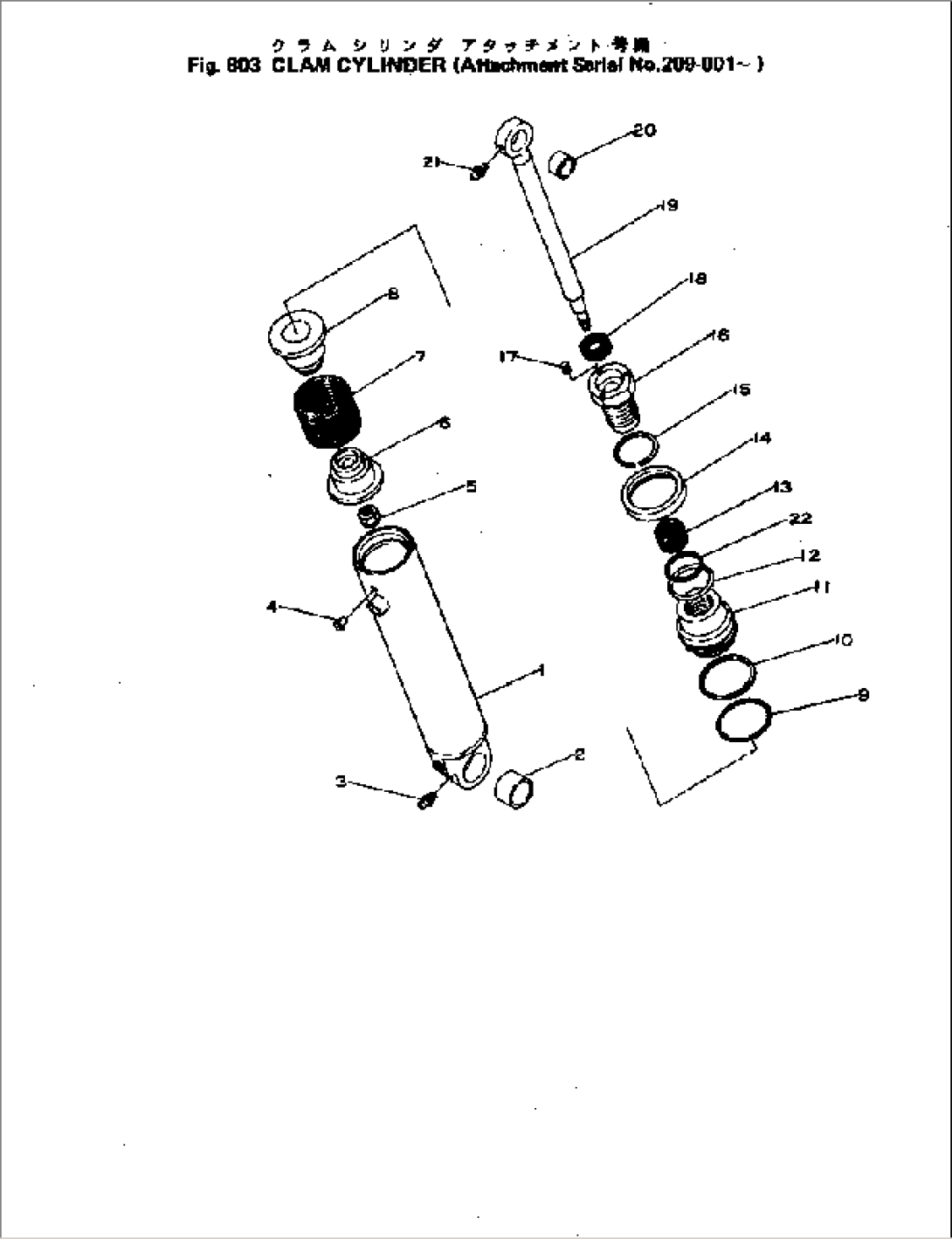

| 380-219726-1 | CYLINDER ASS'Y | (001)- | ||
| 1 | 380-219727-1 | CYLINDER | (001)- | |
| 2 | 380-158842-1 | BUSHING | (001)- | |
| 3 | 380-118491-1 | FITTING | (001)- | |
| 4 | 380-152039-1 | PLUG | (001)- | |
| 5 | 380-E116-000 | NUT | (001)- | |
| 6 | 380-144261-1 | PISTON | (001)- | |
| 7 | 380-144259-2 | PACKING | (001)- | |
| 8 | 380-144260-1 | PISTON | (001)- | |
| 9 | 380-OR445-00 | O-RING | (001)- | |
| 10 | 380-131150-1 | RING | (001)- | |
| 11 | 380-130709-1 | CAP | (001)- | |
| 12 | 380-125281-1 | RING | (001)- | |
| 13 | 380-157522-3 | PACKING | ( . )- | |
| 380-157522-2 | PACKING | (001)-( . ) | ||
| 14 | 380-125417-1 | CAP | (001)- | |
| 15 | 380-125282-1 | RING | (001)- | |
| 16 | 380-192367-1 | NUT | (001)- | |
| 17 | 380-174304-1 | SCREW | (001)- | |
| 18 | 380-172984-1 | SEAL | (001)- | |
| 19 | 380-219728-1 | ROD ASS'Y | (001)- | |
| 20 | 380-158833-1 | BUSHING | (001)- | |
| 21 | 380-118491-1 | FITTING | (001)- | |
| 22 | 380-890234-1 | RING | (025)- |
