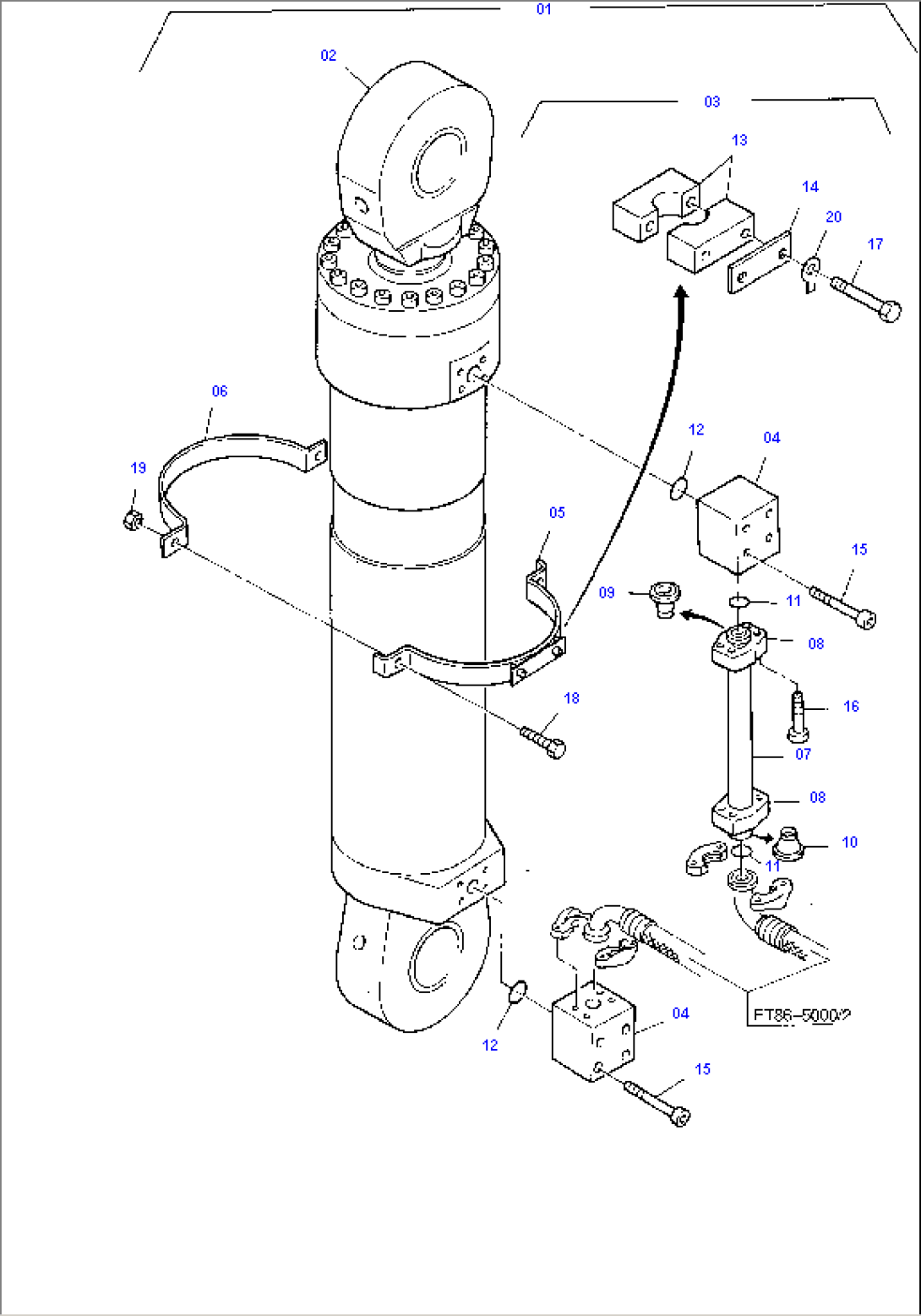

| Item | Part No. | Part Name | Qty | Serial No. |
| 01 | Cylinder with pipes assy. consist. of fig-nos: 02 and 03 | |||
| 02 | Hydr.-cylinder | |||
| 03 | 499 741 40 | Pipes assy. consist. of fig-nos: 04-20 | ||
| 04 | 488 417 40 | Connecting block | ||
| 05 | 761 274 73 | Half bracket | ||
| 06 | 499 756 40 | Clamp clip | ||
| 07 | 761 275 73 | Pipe assy. Ø 30 | ||
| 08 | 500 224 98 | Flange | ||
| 09 | 501 896 98 | Ring | ||
| 10 | 500 226 98 | Ring | ||
| 11 | 324 524 40 | Quadring | ||
| 12 | 504 600 98 | O-ring | ||
| 13 | 504 200 98 | Half clamp | ||
| 14 | 534 004 99 | Plate | ||
| 15 | 319 277 99 | Bolt | ||
| 16 | 319 274 99 | Bolt | ||
| 17 | 308 581 99 | Bolt | ||
| 18 | 307 780 99 | Bolt | ||
| 19 | 507 037 98 | Nut | ||
| 20 | 343 005 99 | Washer |
