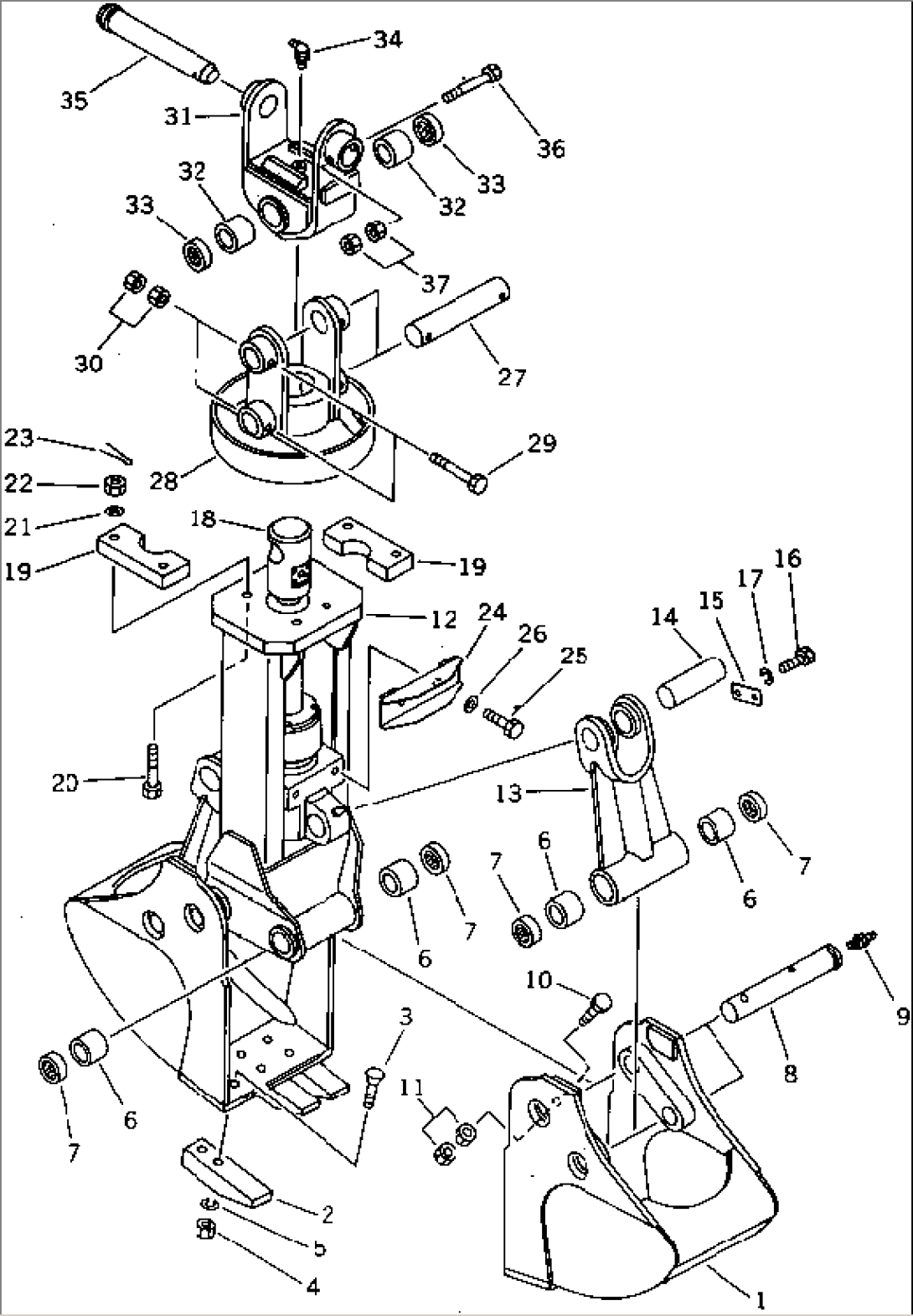

| Item | Part No. | Part Name | Qty | Serial No. |
| 21K-931-0010 | BUCKET ASS'Y,0.4M3 | 1001- | ||
| 1 | 21K-931-2110 | BUCKET | 1001- | |
| 2 | 202-931-1180 | TOOTH | 1001- | |
| 3 | 02090-11275 | BOLT | 1001- | |
| 4 | 02290-11219 | NUT | 1001- | |
| 5 | 01602-21957 | WASHER,SPRING | 1001- | |
| 6 | 203-70-33150 | BUSHING | 1001- | |
| 7 | 203-70-33210 | SEAL,DUST | 1001- | |
| 8 | 21K-931-2120 | PIN | 1001- | |
| 9 | 07020-00000 | FITTING,GREASE | 1001- | |
| 10 | 01011-51620 | BOLT | 1001- | |
| 11 | 01580-11613 | NUT | 1001- | |
| 12 | 21K-931-2130 | FRAME | 1001- | |
| 13 | 21K-931-2140 | LINK | 1001- | |
| 14 | 21K-931-2150 | PIN | 1001- | |
| 15 | 04082-00212 | LOCK | 1001- | |
| 16 | 01010-51225 | BOLT | 1001- | |
| 17 | 01602-21236 | WASHER,SPRING | 1001- | |
| 18 | 21K-63-94100 | CYLINDER ASS'Y \ | 1001- | |
| 19 | 21K-931-2160 | PLATE | 1001- | |
| 20 | 01013-53020 | BOLT | 1001- | |
| 21 | 01643-33080 | WASHER | 1001- | |
| 22 | 01590-13033 | NUT | 1001- | |
| 23 | 04050-16055 | PIN,COTTER | 1001- | |
| 24 | 21K-931-2170 | SUPPORT | 1001- | |
| 25 | 01010-51430 | BOLT | 1001- | |
| 26 | 01643-31445 | WASHER | 1001- | |
| 27 | 21K-931-2180 | PIN | 1001- | |
| 28 | 21K-931-2190 | BRACKET | 1001- | |
| 29 | 01011-51620 | BOLT | 1001- | |
| 30 | 01580-11613 | NUT | 1001- | |
| 31 | 21K-931-2210 | BRACKET | 1001- | |
| 32 | 203-70-33150 | BUSHING | 1001- | |
| 33 | 203-70-33210 | SEAL,DUST | 1001- | |
| 34 | 07020-00675 | FITTING,GREASE | 1001- | |
| 35 | 21K-70-23140 | PIN | 1001- | |
| 36 | 01011-51690 | BOLT | 1001- | |
| 37 | 01580-11613 | NUT | 1001- |
