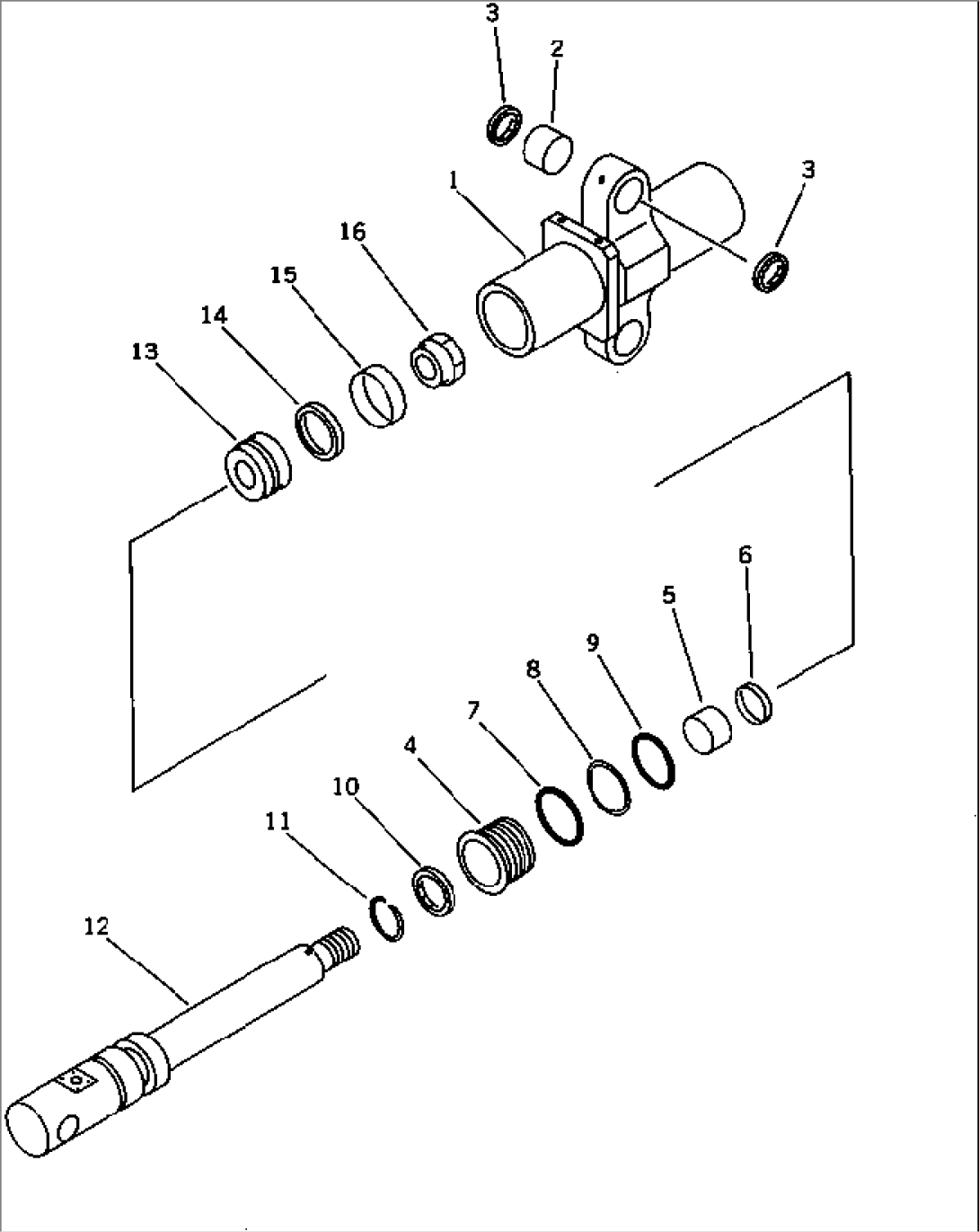

| Item | Part No. | Part Name | Qty | Serial No. |
| 21K-63-94100 | CYLINDER ASS'Y \ | 1001- | ||
| 1 | 21K-63-94140 | CYLINDER | 1001- | |
| 2 | 07144-10606 | BUSHING | 1001- | |
| 3 | 07145-00060 | SEAL,DUST | 1001- | |
| 4 | 707-29-12630 | HEAD,CYLINDER | 1001- | |
| 5 | 07177-08030 | BUSHING | 1001- | |
| 6 | 707-51-80211 | PACKING,ROD | 1001- | |
| 7 | 07000-02120 | O-RING | 1001- | |
| 8 | 07146-02116 | RING,BACK-UP | 1001- | |
| 9 | 07000-12115 | O-RING | 1001- | |
| 10 | 195-63-92190 | SEAL,DUST | 1001- | |
| 11 | 07179-00103 | RING,SNAP | 1001- | |
| 12 | 21K-63-94120 | ROD | 1001- | |
| 13 | 707-36-12361 | PISTON | 1001- | |
| 14 | 707-44-12080 | RING,PISTON | 1001- | |
| 15 | 07155-01230 | RING,WEAR | 1001- | |
| 16 | 707-68-10580 | NUT | 1001- |
