| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||

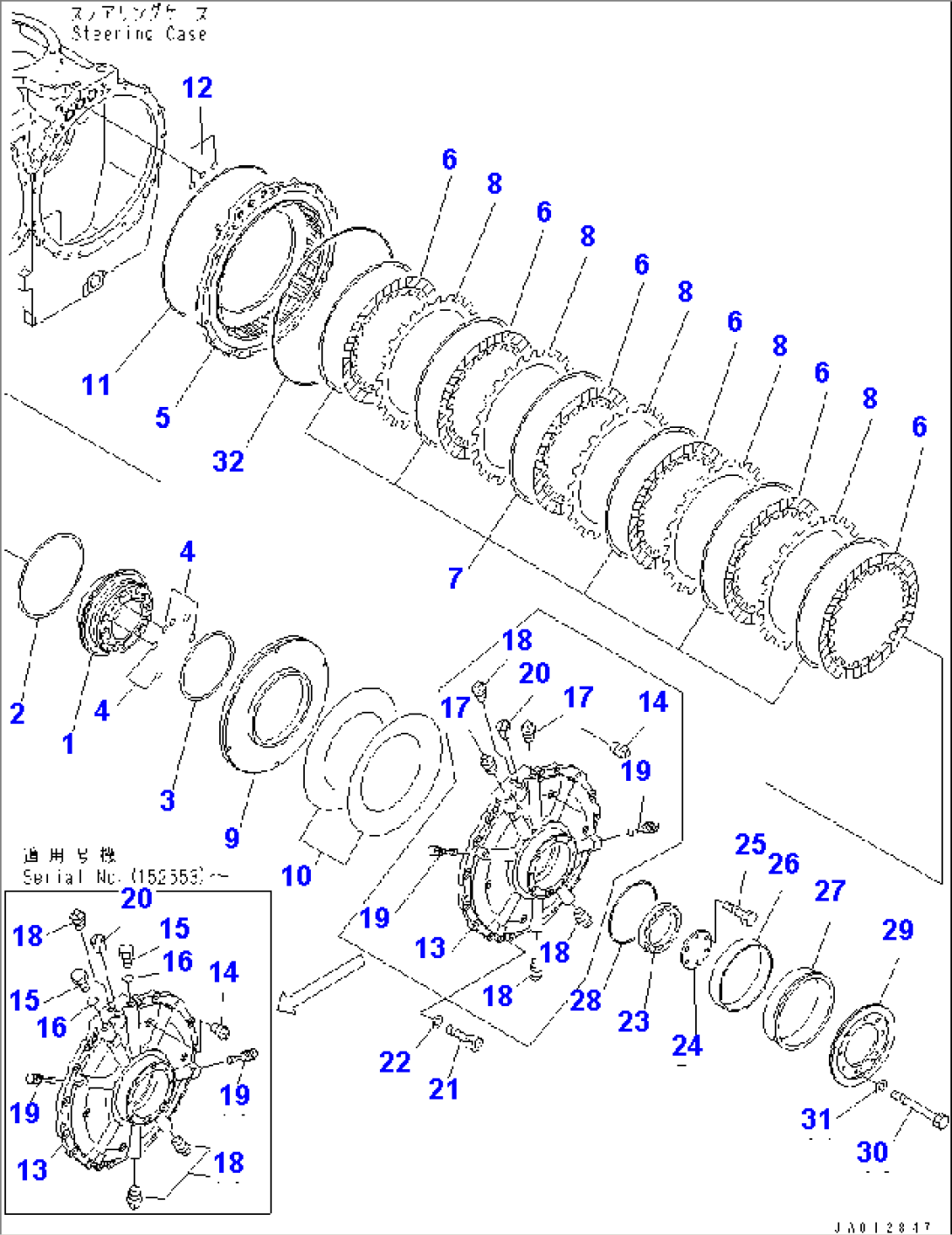

| 17A-22-00131 | CLUTCH AND BRAKE A. | (152653)-(156266) | ||
| 17A-22-00130 | CLUTCH AND BRAKE A. | 65001-(152652) | ||
| 1 | 17A-22-11132 | CYLINDER | 65275-@ | |
| 2 | 113-15-12840 | RING | 65275-@ | |
| 3 | 103-15-29210 | SEAL | 65275-@ | |
| 4 | 07000-72018 | O-RING | 65275-@ | |
| 5 | 17A-22-11182 | DRUM | 65275-@ | |
| 6 | 17A-22-11170 | DISC | 65275-@ | |
| 7 | 17A-22-12130 | SPRING | 65275-@ | |
| 8 | 17A-22-12120 | PLATE | 65275-@ | |
| 9 | 17A-22-12150 | PISTON | 65275-@ | |
| 10 | 17M-22-43430 | SPRING ASS'Y | 65275-@ | |
| 11 | 07000-75490 | O-RING | 65275-@ | |
| 12 | 07000-73022 | O-RING | 65275-@ | |
| 13 | 17A-22-42220 | CASE | (152653)-(156266) | |
| 13 | 17A-22-12221 | CASE | 65275-(152652) | |
| 14 | 07042-70211 | PLUG | 65275-66624 | |
| 15 | 17M-22-47890 | O-RING | (152653)-@ | |
| 16 | 07040-11612 | PLUG | (152653)-@ | |
| 17 | 07042-70312 | PLUG | 65275-(152652) | |
| 18 | 07042-70312 | PLUG | 65275-66624 | |
| 19 | 17A-22-11190 | PLUG | 65275-66624 | |
| 20 | 07049-02025 | PLUG | 65275-@ | |
| 21 | 01252-41245 | BOLT | 65275-@ | |
| 22 | 01643-31232 | WASHER | 65275-@ | |
| 23 | 06030-06922 | BEARING | 65275-@ | |
| 24 | 17A-22-12170 | PLATE | 65275-@ | |
| 25 | 01010-81030 | BOLT | 65275-@ | |
| 26 | 14Y-21-13130 | BUSHING | 65275-@ | |
| 27 | 14Y-21-13242 | COLLAR | (152949)-@ | |
| 27 | 14Y-21-13240 | COLLAR | 65275-(152948) | |
| 28 | 14Y-22-15220 | O-RING | 65275-@ | |
| 29 | 17A-21-12132 | FLANGE | 65275-@ | |
| 30 | 01011-81000 | BOLT | 65275-@ | |
| 31 | 01643-31032 | WASHER | 65275-@ | |
| 32 | 07000-75465 | O-RING | 65275-@ |
