| Item | Part No. | Part Name | Qty | Serial No. |
| (134-22-60050) | POWER TRAIN ASS'Y | 2001- | ||

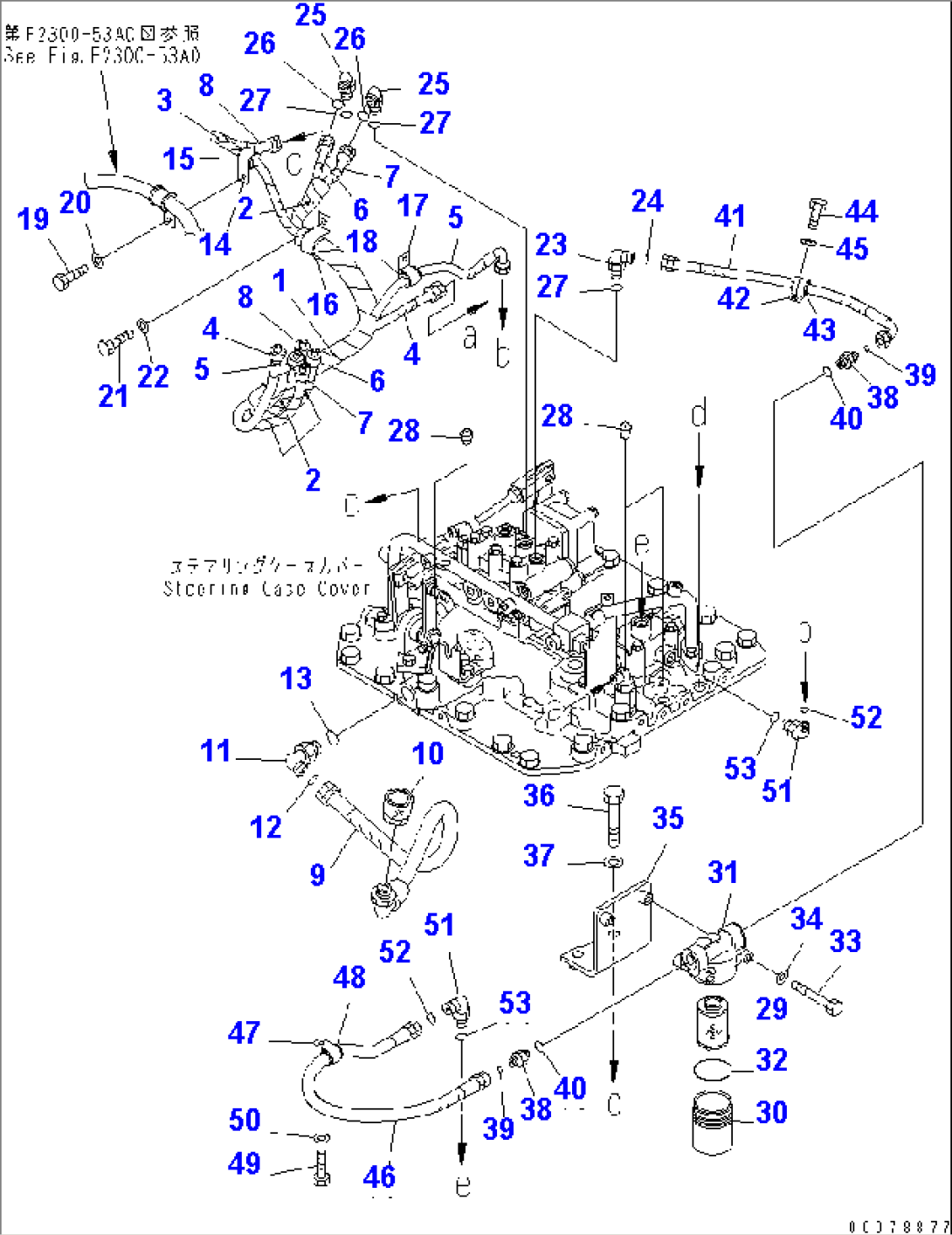

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2300-51A0 TO F2300-59A0. | ||||
| 134-49-67181 | HOSE ASS'Y | 2001- | ||
| 1 | 08210-01807 | SPIRAL TUBE | 2001- | |
| 2 | 08210-01202 | SPIRAL TUBE | 2001- | |
| 3 | 08210-01205 | SPIRAL TUBE | 2001- | |
| 4 | 134-49-67290 | HOSE, 650MM | 2001- | |
| 4 | 21U-62-34770 | BAND, WHITE | 2001- | |
| 5 | 134-49-67141 | HOSE, 900MM | 2001- | |
| 6 | 134-49-67151 | HOSE, 1040MM | 2001- | |
| 6 | 21U-62-34750 | BAND, BLUE | 2001- | |
| 7 | 134-49-67161 | HOSE, 1010MM | 2001- | |
| 7 | 21U-62-34780 | BAND, BROWN | 2001- | |
| 8 | 134-49-67280 | HOSE, 1350MM | 2001- | |
| 8 | 21U-62-34720 | BAND, BLACK | 2001- | |
| 9 | 134-49-67191 | HOSE, 750MM | 2001- | |
| 10 | 134-49-61870 | COUPLING | 2001- | |
| 11 | 02782-10628 | ELBOW | 2001- | |
| 12 | 02896-61018 | O-RING | 2001- | |
| 13 | 07002-62434 | O-RING | 2001- | |
| 14 | 04434-52112 | CLIP | 2001- | |
| 15 | 07095-20314 | CUSHION | 2001- | |
| 16 | 155-61-15350 | CLIP | 2001- | |
| 17 | 04434-52112 | CLIP | 2001- | |
| 18 | 07095-20314 | CUSHION | 2001- | |
| 19 | 01010-81020 | BOLT | 2001- | |
| 20 | 01643-31032 | WASHER | 2001- | |
| 21 | 01010-81020 | BOLT | 2001- | |
| 22 | 01643-31032 | WASHER | 2001- | |
| 23 | 02782-10315 | ELBOW | 2001- | |
| 24 | 02896-61009 | O-RING | 2001- | |
| 25 | 02782-10316 | ELBOW | 2001- | |
| 26 | 02896-61009 | O-RING | 2001- | |
| 27 | 07002-62034 | O-RING | 2001- | |
| 28 | 07042-80108 | PLUG | 2001- | |
| 134-49-61770 | FILTER ASS'Y | 2001- | ||
| 29 | 134-49-61780 | ELEMENT | 2001- | |
| 30 | 134-49-61790 | CASE | 2001- | |
| 31 | 134-49-61860 | HEAD | 2001- | |
| 32 | 07000-02060 | O-RING | 2001- | |
| 33 | 01010-81095 | BOLT | 2001- | |
| 34 | 01643-31032 | WASHER | 2001- | |
| 35 | 134-49-67110 | BRACKET | 2001- | |
| 36 | 01010-81695 | BOLT | 2001- | |
| 37 | 01643-31645 | WASHER | 2001- | |
| 38 | 56B-88-12220 | UNION | 2001- | |
| 39 | 02896-61009 | O-RING | 2001- | |
| 40 | 07000-B2018 | O-RING | 2001- | |
| 41 | 02761-003A4 | HOSE | 2001- | |
| 42 | 04434-52112 | CLIP | 2001- | |
| 43 | 07095-20314 | CUSHION | 2001- | |
| 44 | 01010-81020 | BOLT | 2001- | |
| 45 | 01643-31032 | WASHER | 2001- | |
| 46 | 02760-003A5 | HOSE | 2001- | |
| 47 | 04434-52112 | CLIP | 2001- | |
| 48 | 07095-20314 | CUSHION | 2001- | |
| 49 | 01010-81020 | BOLT | 2001- | |
| 50 | 01643-31032 | WASHER | 2001- | |
| 51 | 02782-10315 | ELBOW | 2001- | |
| 52 | 02896-61009 | O-RING | 2001- | |
| 53 | 07002-62034 | O-RING | 2001- |
