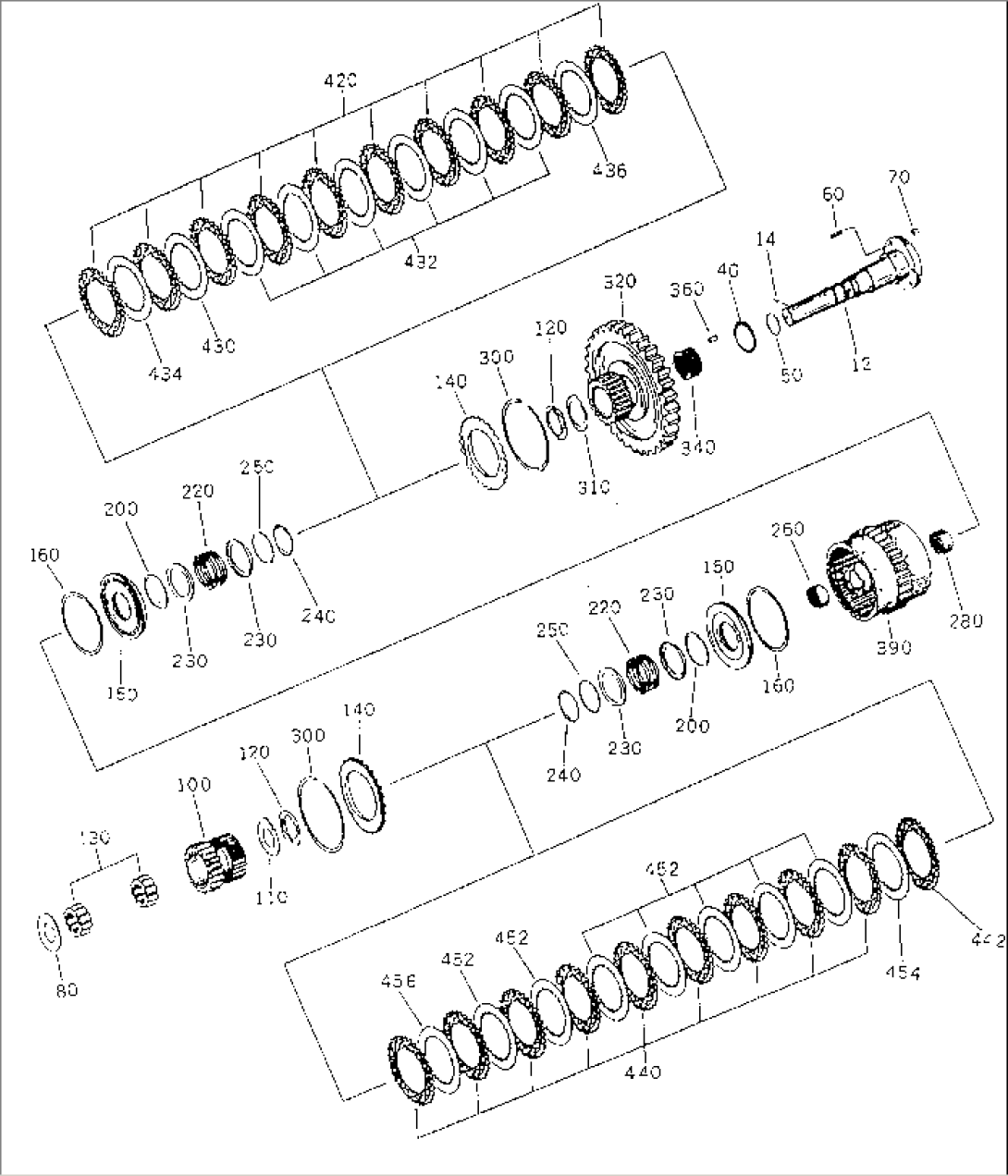

CLUTCH ASS'Y¤ (K4 + K3) (T/M NO.4644 026 063)(#311001-)

CLUTCH ASS
ItemPart No.Part NameQtySerial No.
12BW252055SHAFT311001-
14BW060721PIN,SPRING311001-
40BW252050O-RING311001-
50BW152057RING,PISTON311001-
60BW052760STUD311001-
70BW063100NUT311001-
80BW152127WASHER, 0.2MM311001-
80BW152244WASHER, 0.4MM311001-
80BW152245WASHER, 0.6MM311001-
80BW152246WASHER, 0.8MM311001-
80BW152247WASHER, 1.0MM311001-
80BW152248WASHER, 1.2MM311001-
80BW152249WASHER, 1.4MM311001-
80BW152250WASHER, 1.6MM311001-
80BW152251WASHER, 1.8MM311001-
80BW152252WASHER, 2.0MM311001-
80BW152253WASHER, 2.2MM311001-
80BW152254WASHER, 2.4MM311001-
80BW152255WASHER, 2.6MM311001-
80BW152256WASHER, 2.8MM311001-
100BW252056GEAR311001-
110BW152191WASHER,THRUST311001-
120BW052735PLATE,THRUST311001-
130BW152169BEARING311001-
140BW052776PLATE,BACK-UP311001-
150BW252057PISTON311001-
160BW052777RING,SEAL311001-
200BW252268RING,SEAL311001-
220BW052740SPRING311001-
230BW052741RING,GUIDE311001-
240BW052742V-RING311001-
250BW052743RING,GUIDE311001-
260BW052778SLEEVE,NEEDLE311001-
280BW052779SLEEVE,NEEDLE311001-
300BW052780RING,SNAP311001-
310BW152072WASHER,THRUST311001-
320BW152948GEAR311001-
340BW152063CAGE,NEEDLE311001-
360BW052782ROLLER311001-
390BW252272CARRIER,DISC311001-
420BW152073DISC,OUTER311001-
430BW152106DISC,INNER, 1.5MM311001-
432BW152074DISC,INNER, 2.0MM311001-
434BW152075DISC,INNER, 2.5MM311001-
436BW152106DISC,INNER, 1.5MM311001-
436BW152074DISC,INNER, 2.0MM311001-
436BW152075DISC,INNER, 2.5MM311001-
440BW152073DISC,OUTER311001-
442BW252215DISC,OUTER311001-
452BW152074DISC,INNER, 2.0MM311001-
454BW152075DISC,INNER, 2.5MM311001-
456BW152106DISC,INNER, 1.5MM311001-
456BW152074DISC,INNER, 2.0MM311001-
456BW152075DISC,INNER, 2.5MM311001-
